Additional information
| Weight | 24 kg |
|---|---|
| Dimensions | 37 × 26 × 20 cm |
AETHERIEM1C
uhf in ear monitor sys.655.679.mhz
€429.00
EIKON introduces the new AETHER wireless Series, dedicated to all professional users with its crystal-clear sound quality and powerful user-friendly control.
Thanks to the possibility of completing the system with a series of accessories, AETHER represent an ideal choice for professional stage applications, theaters, clubs, rental companies, system integrators and all professional demanding venues.
The AETHERIEM1 Wireless In-Ear Monitor is a Professional UHF PLL controlled, system providing a reliable and high-quality signal transmission and equipped with PAD/MONO/STEREO/EQ/LIMITER controls.

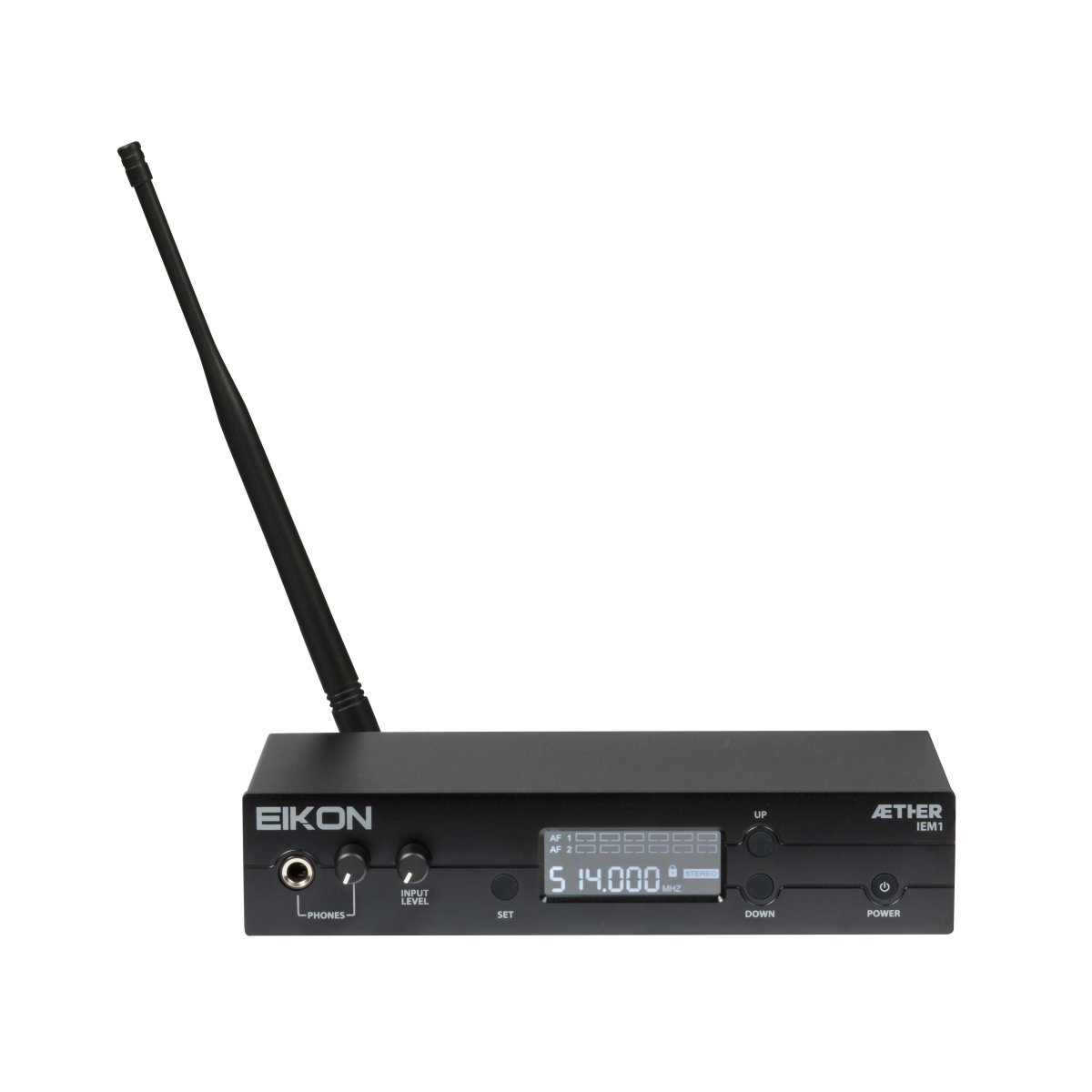

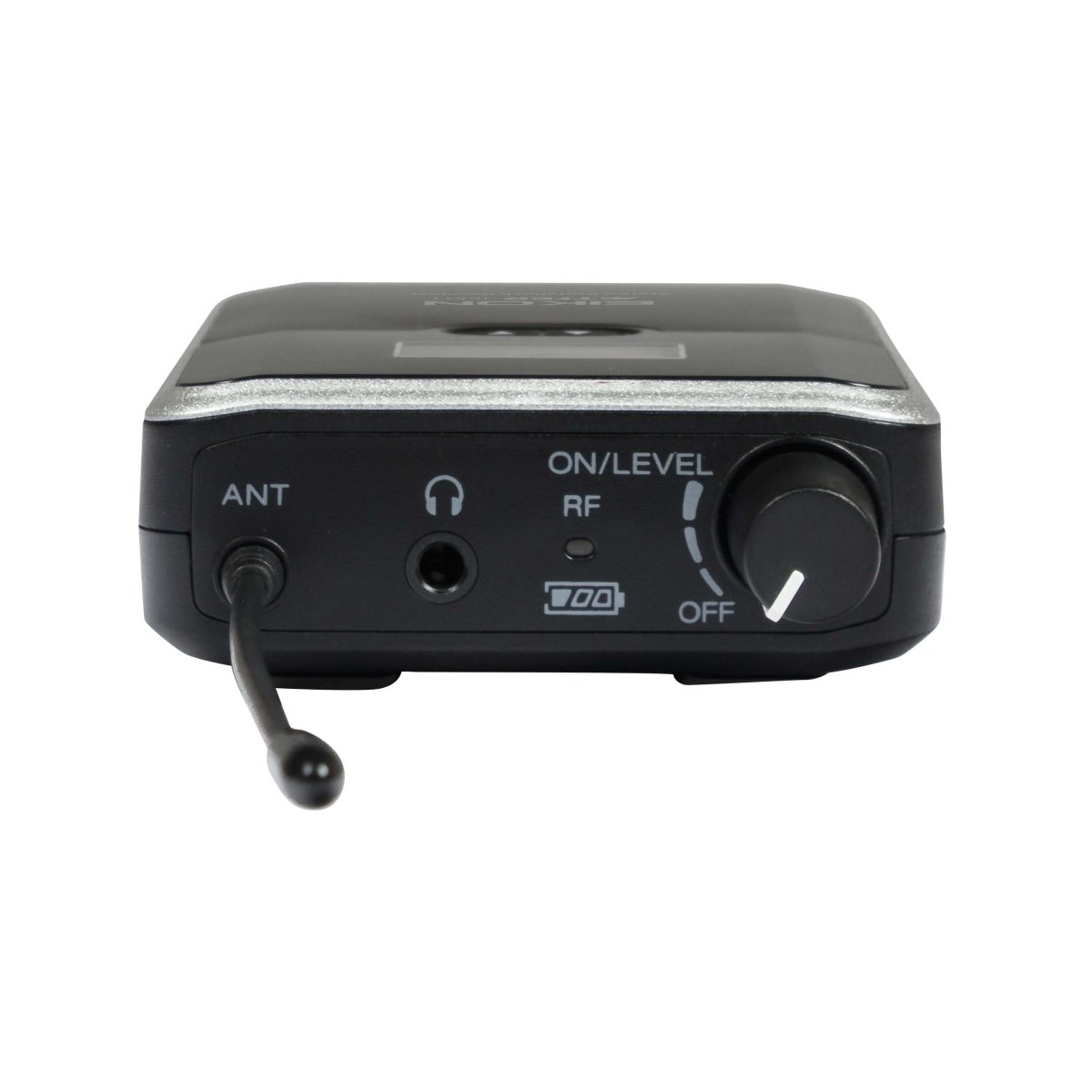

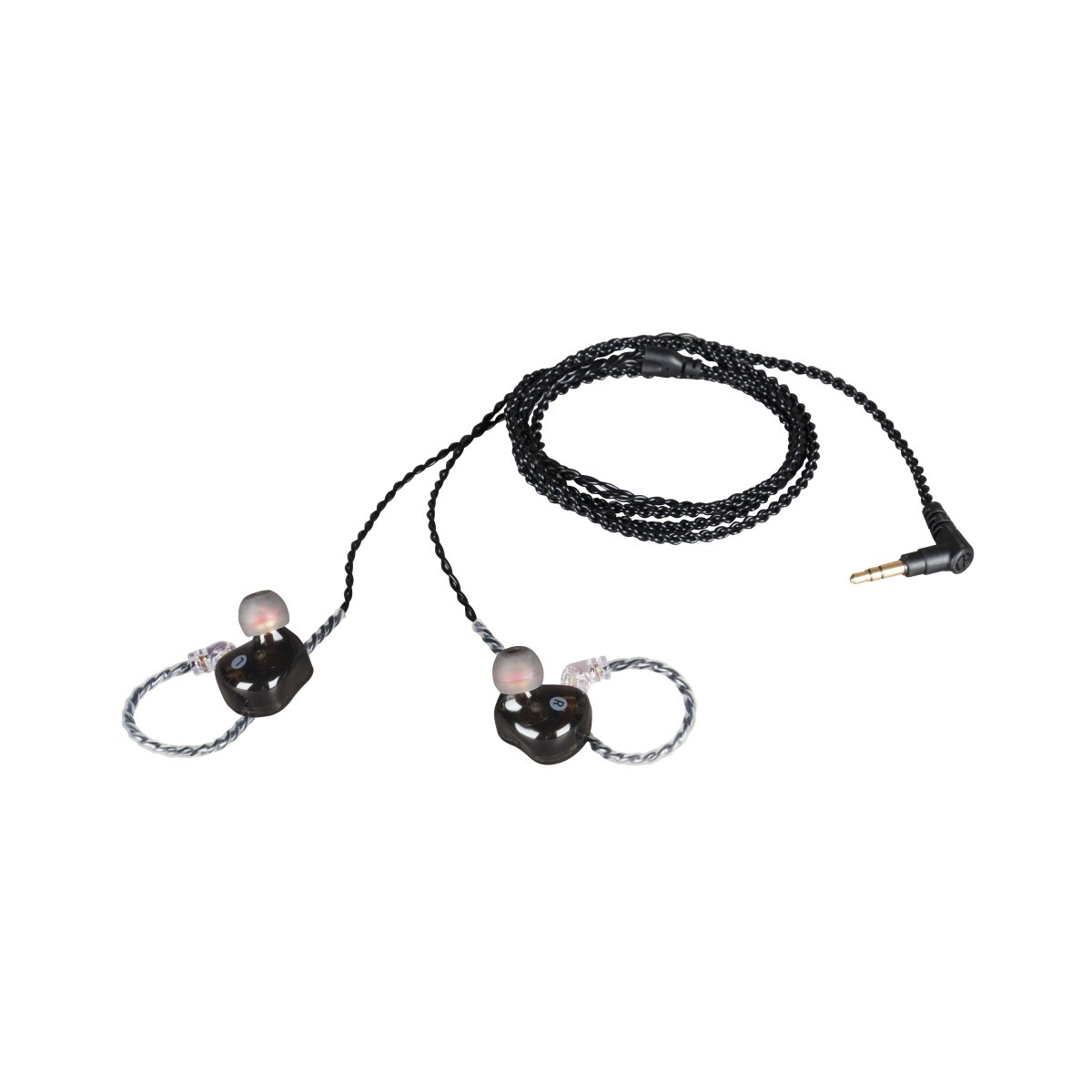

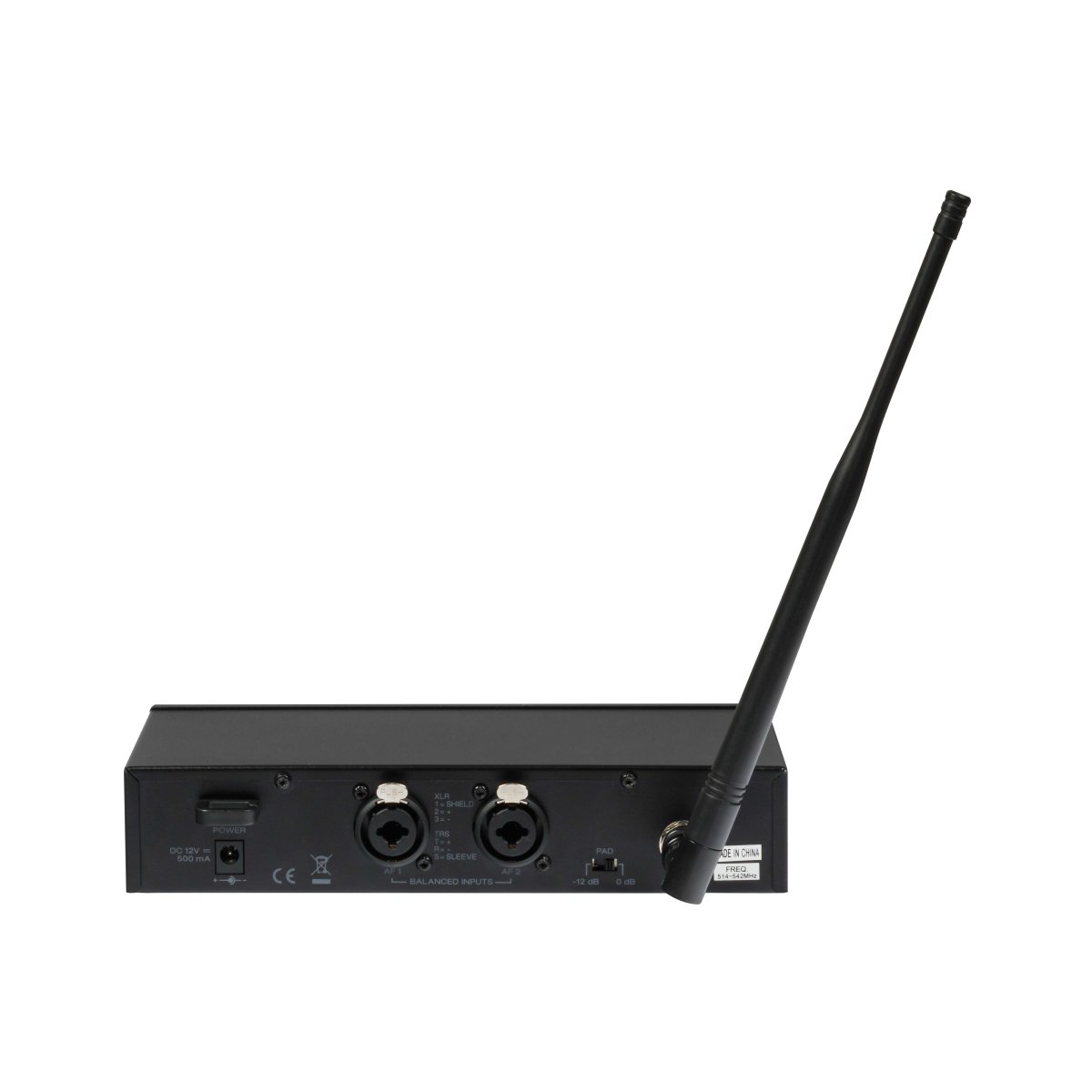

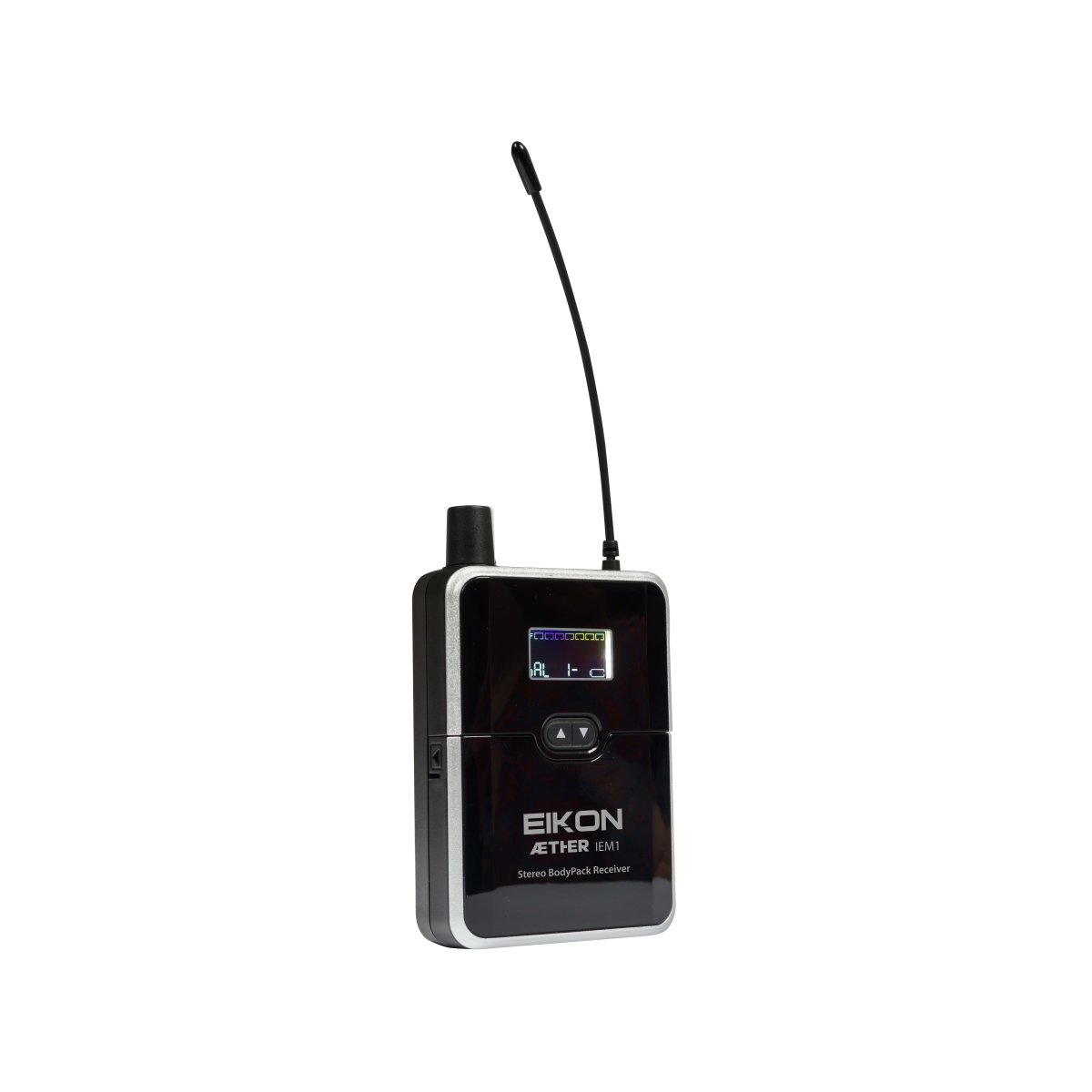

IEM1 Wireless In-Ear-Monitor system features 3 units: 1/2 19″rack Transmitter, Stereo Bodypack Receiver and Professional Earphones with Dynamic Micro Driver, Isolating design and Over Ear cable shape.
• Professional UHF in ear monitor system into AETHER products’ philosophy
• PLL tuning and up to 50 meters range in open space

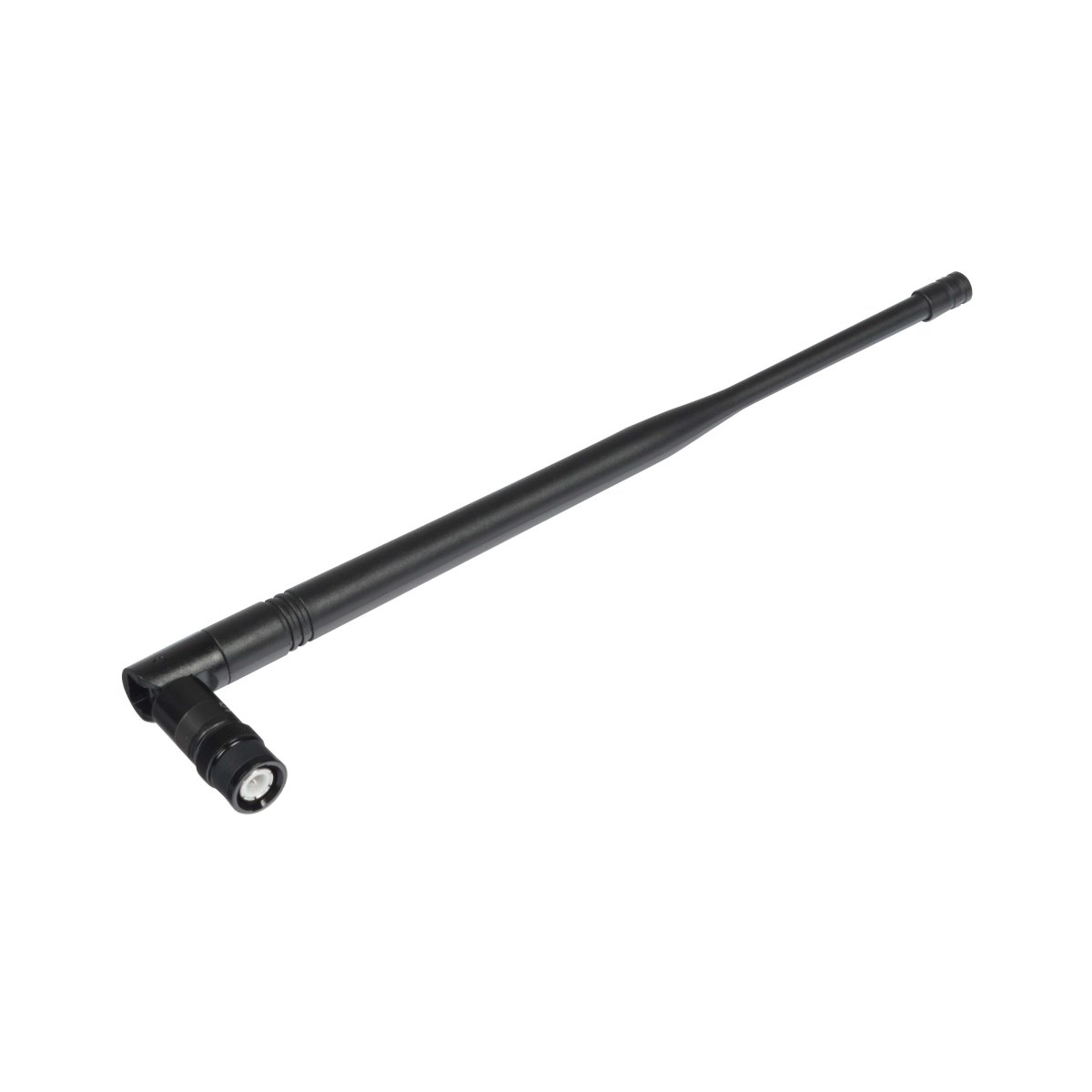

• BNC Antenna and 19” rackmount adapters included
• EQ tuning, PAD, STEREO/MONO functions and Limiter options selectable
• To complete the multi channel rack setup a dedicated antenna combiner is available as optional
TECHNICAL SPECIFICATIONS
|
514-542MHz Frequency Band |
9 Groups / 16 Channels |
|
655-679MHz Frequency Band |
10 Groups / 12 Channels |
|
RF Receiver Type |
PLL UHF Synthesized |
|
RF Modulation Type |
Frequency Modulation (FM) |
|
RF Sensitivity |
≦ -92dBm |
|
RF Image/Spurious Rejection |
≧ 40dB |
|
RF Interference Rejection |
≧ 40dB |
|
RF Frequency Stability |
≦ 40ppm (-10°C to +50°C) |
|
THD Distortion |
≦ 1% (A-weighted) |
|
S/N Ratio |
≧ 80dB (A-weighted) |
|
Dynamic Range |
≧ 82dB (A-weighted) |
|
Frequency Response |
50-15KHz (±3dB) |
