Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 37 × 26 × 20 cm |
AETHERCOMBI
4.ch.uhf.antenna.combiner
€459.00

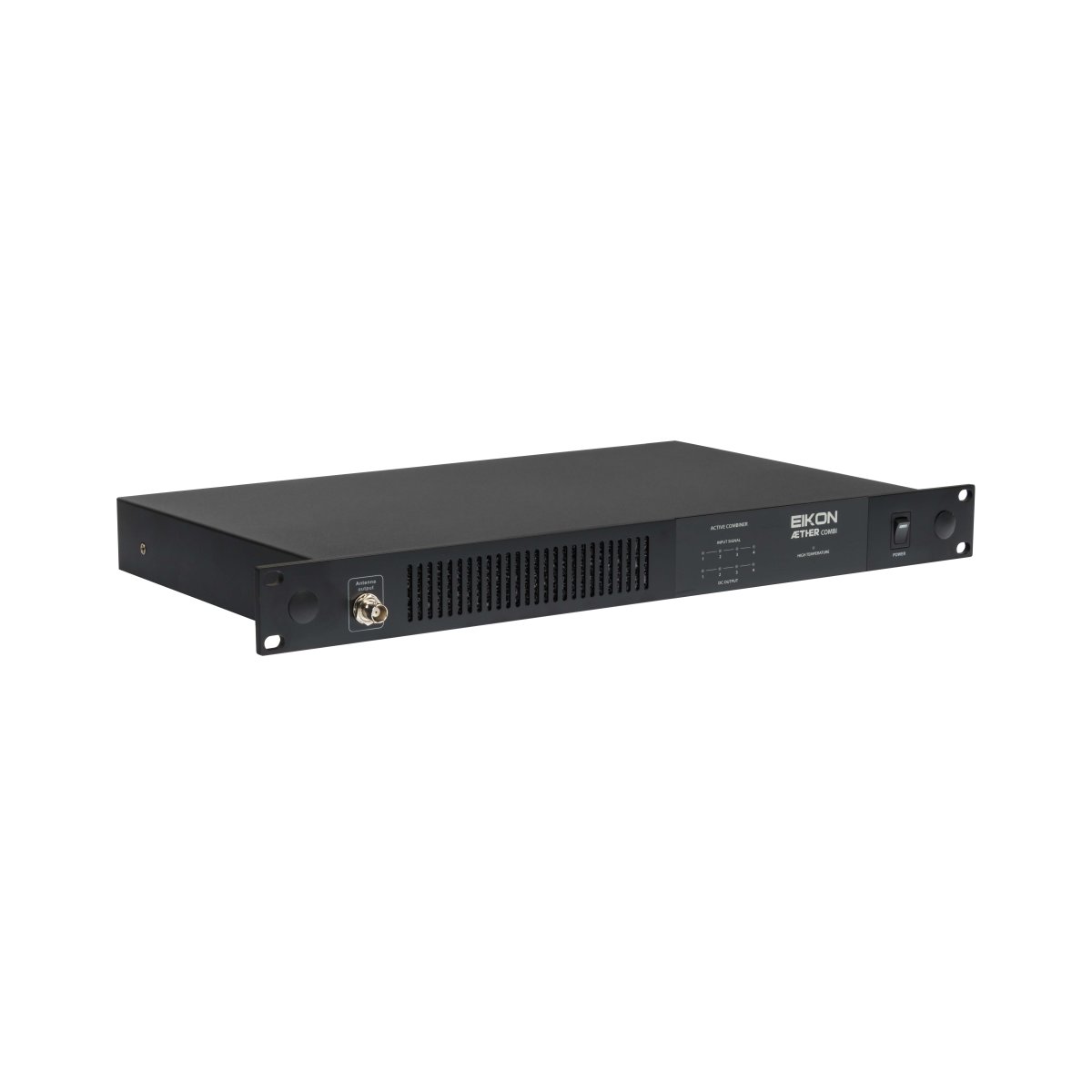

AETHERCOMBI BNC antenna combiner offers 4 RF inputs, synthesizing into one output.
AETHERCOMBI circuit includes 4 DC 12V, 600mA output, and with overcurrent and shortcircuit protection functions, to drive 4 AETHERIEM1 In-Ear-Monitor systems.
It features temperature protection function; when the cooling fan is faulty and unable to effectively dissipate heat, the system automatically shut down to protect the equipment.
TECHNICAL SPECIFICATIONS
| Frequency range | 450~950MHz |
| Output Gain | 0±3dBm |
| Minimum detection threshold | 0±3dB |
| Level when the light on | 18dBm±3dBm |
| Work current | ＜600mA |
| Outpur Impedance | 50Ω |
| Input Impedance | 50Ω |
| Power supply | 1 2 V / 6 0 0 m A ( 7 . 2 W ) |
| Working temperature | -10~+50°C |
| Weight | 2000g |
| Dimension(Length*Width*Height | 482*45*245mm |
