EKJMA

microfono wireless uhf 512 – 541,7 mhz

55.90

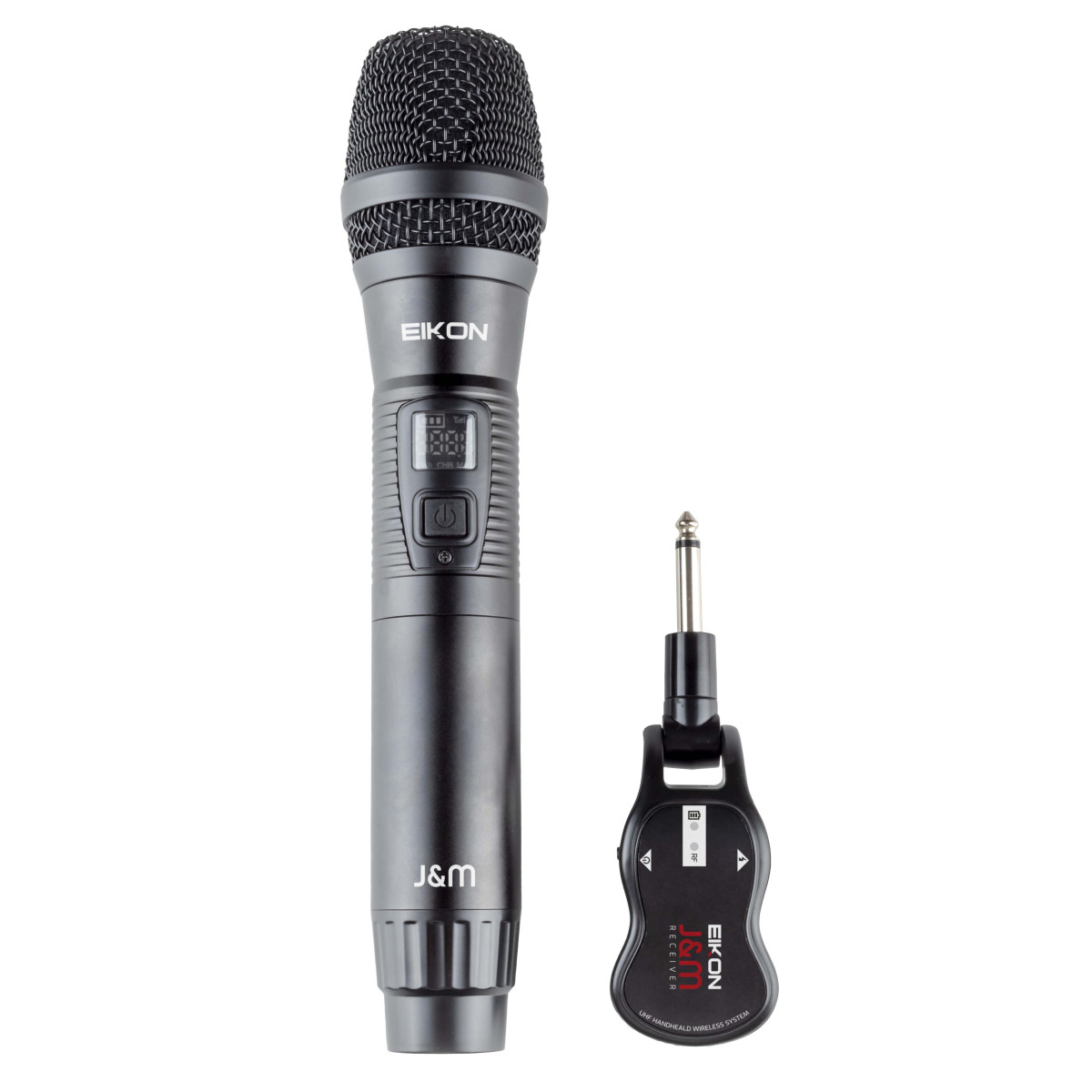

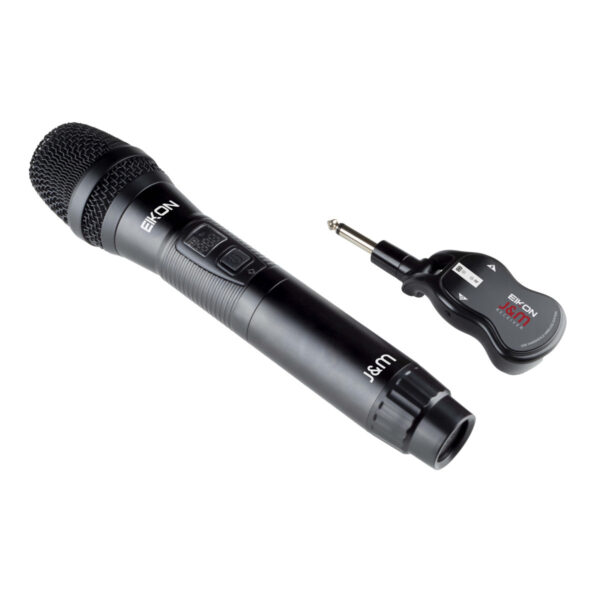

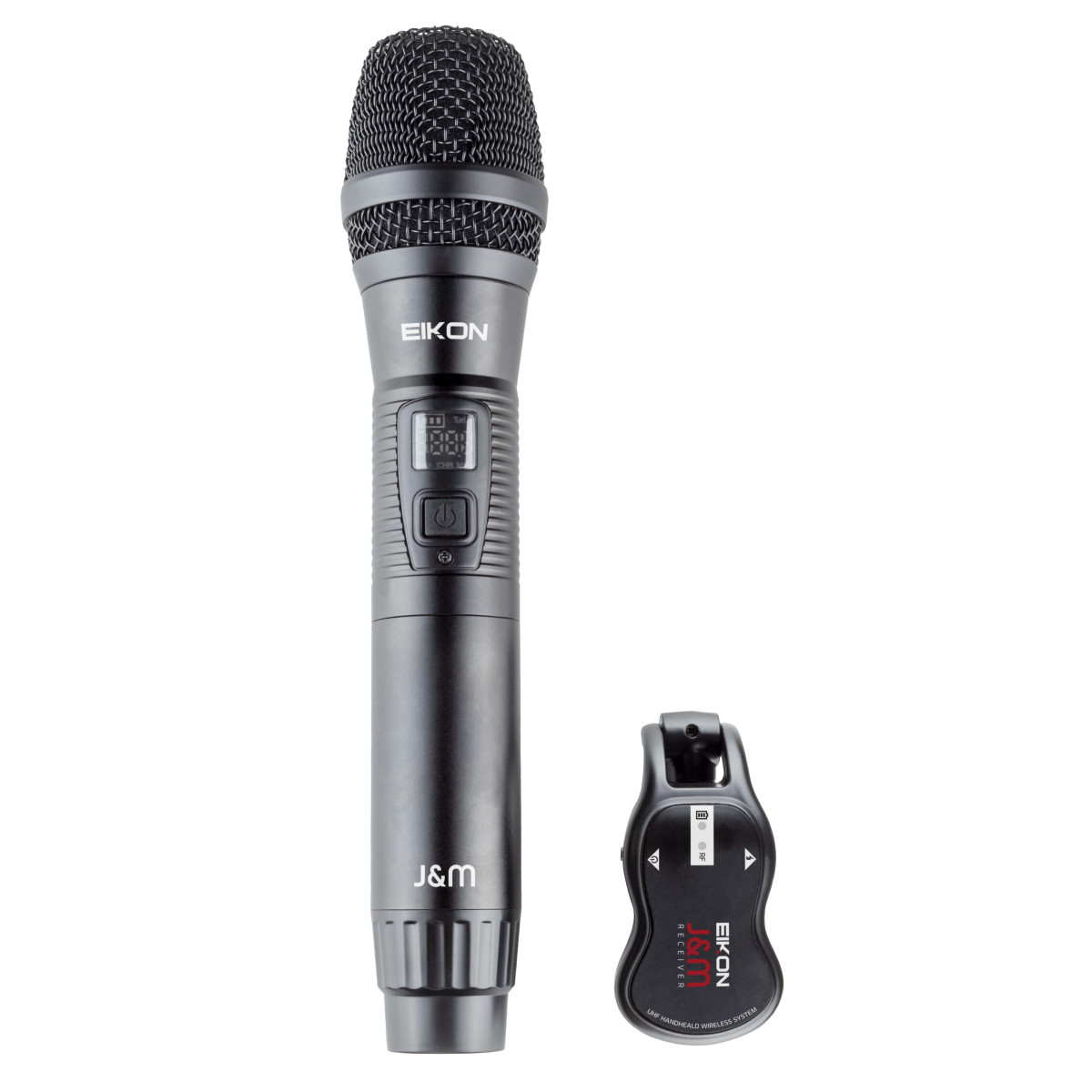

EKJ&M è un sistema microfonico wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.

EKJ&M è dotato di 3 unità: trasmettitore portatile EKJ&M, ricevitore compatto “formato connettore” EKJ&M e cavo di ricarica da USB a USB-mini.

Sono disponibili 16 canali di frequenza (50 canali modello EKJ&MA), consentendo la possibilità di utilizzare l’apparato insieme ad altre apparecchiature wireless.

  • UHF 512 – 541,7 MHz frequency band
  • Quartz locked modulation mode
  • Up to 30 meters range
  • Built in 3.7V/500mA lithium battery
  • 5V USB charging cable included
  • Up to 5 hours autonomy
  • Up to 6 systems usable in the same location

Informazioni aggiuntive

Peso 21 kg
Dimensioni 37 × 26 × 20 cm

Microfoni wireless

SPECIFICHE TECNICHE

EKJ&M – UHF PLL 16 Channel Transmitter

RF Channels

16 frequency presets

RF Frequency Band

UHF: 863-865 MHz

RF Frequency Stability

±0,002%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Output Power

10mW

Sub-harmonic

< 40 dB

Operating current

130 mA

Operating Time

5 to 8 hrs (depending on volume level)

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

5 hours

Weight

0.30 Kg





EKJ&M –UHF PLL 16 Channels Receiver

RF Channels

16 frequency presets

RF Frequency Band

UHF: 863-865 MHz

RF Frequency Stability

±0,005%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Receiving Sensitivity

< -98 dBm

RF Receiving range

15 to 30 meters depending on used band conditions

Audio dynamic range

106 dBm

THD Distortion

< 0.5%

S/N Ratio

> 102 dBA

Audio output connector

6.3 mm Mono Jack

Output Power Max (continuous)

400 mW

Operating current

80 mA

Operating Time

5 hours

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

3 hours

Weight

0.05 Kg

EKJ&MA – UHF PLL 50 Channel Transmitter

RF Channels

50 frequency presets

RF Frequency Band

UHF: 512 – 541,7 MHz

RF Frequency Stability

±0,002%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Output Power

10mW

Sub-harmonic

< 40 dB

Operating current

130 mA

Operating Time

5 to 8 hrs (depending on volume level)

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

5 hours

Weight

0.30 Kg





EKJ&MA –UHF PLL 50 Channels Receiver

RF Channels

50 frequency presets

RF Frequency Band

UHF: 512 – 541,7 MHz

RF Frequency Stability

±0,005%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Receiving Sensitivity

< -98 dBm

RF Receiving range

15 to 30 meters depending on used band conditions

Audio dynamic range

106 dBm

THD Distortion

< 0.5%

S/N Ratio

> 102 dBA

Audio output connector

6.3 mm Mono Jack

Output Power Max (continuous)

400 mW

Operating current

80 mA

Operating Time

5 hours

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

3 hours

Weight

0.05 Kg
