EKJJ

sistema wireless per chitarra e basso uhf 863-865 mhz

49.90

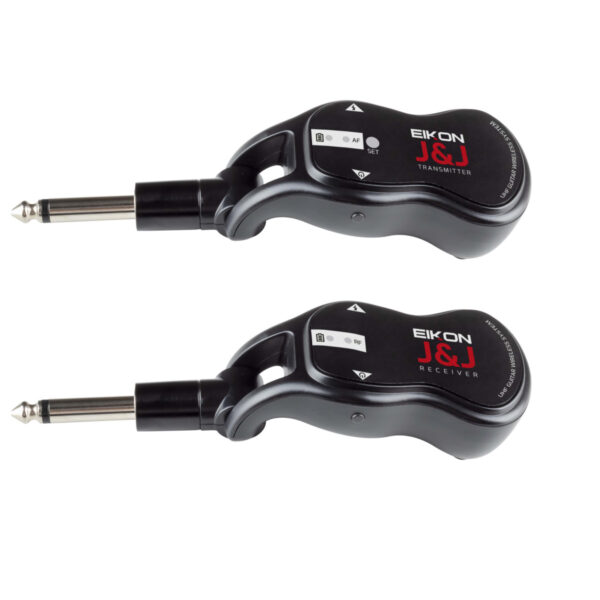

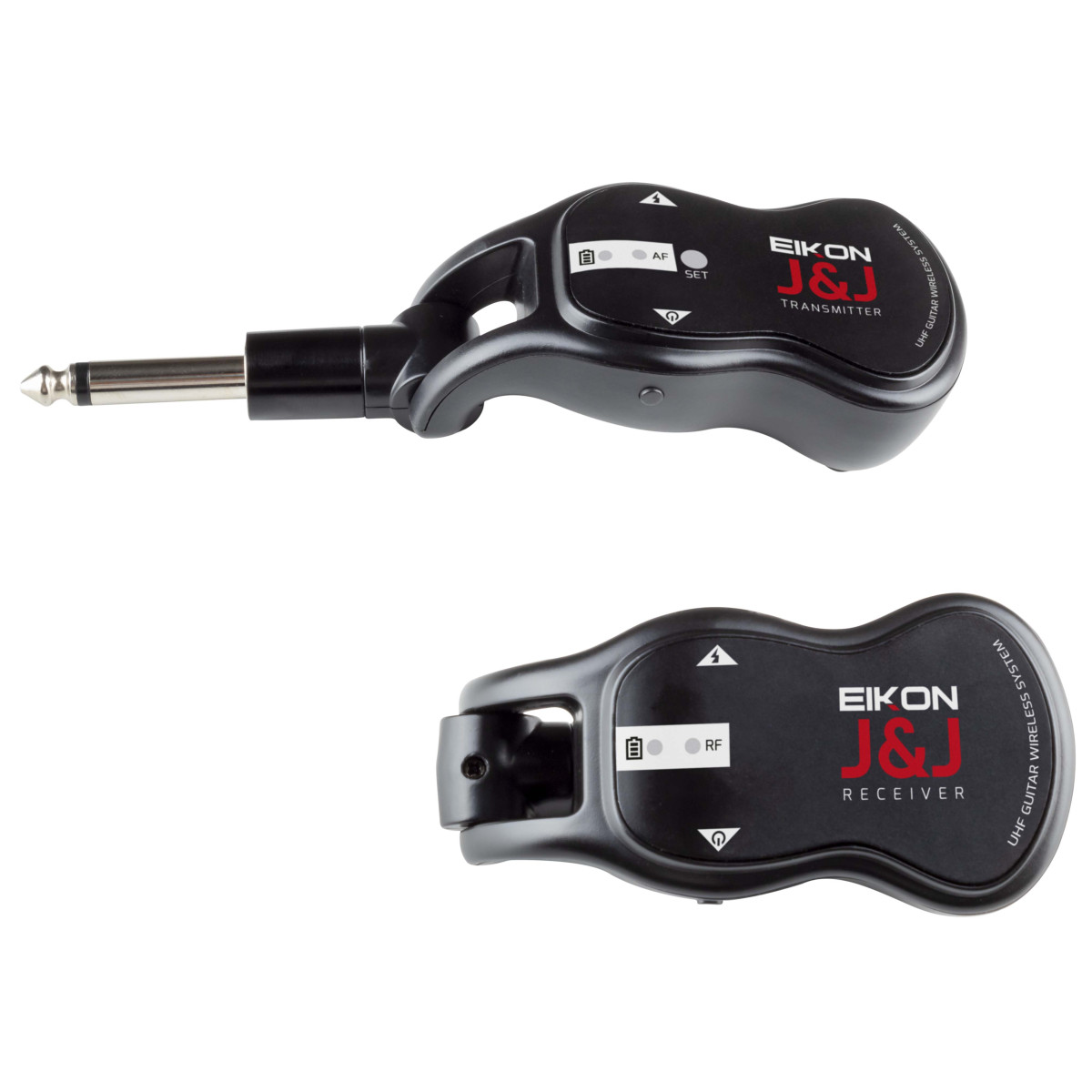

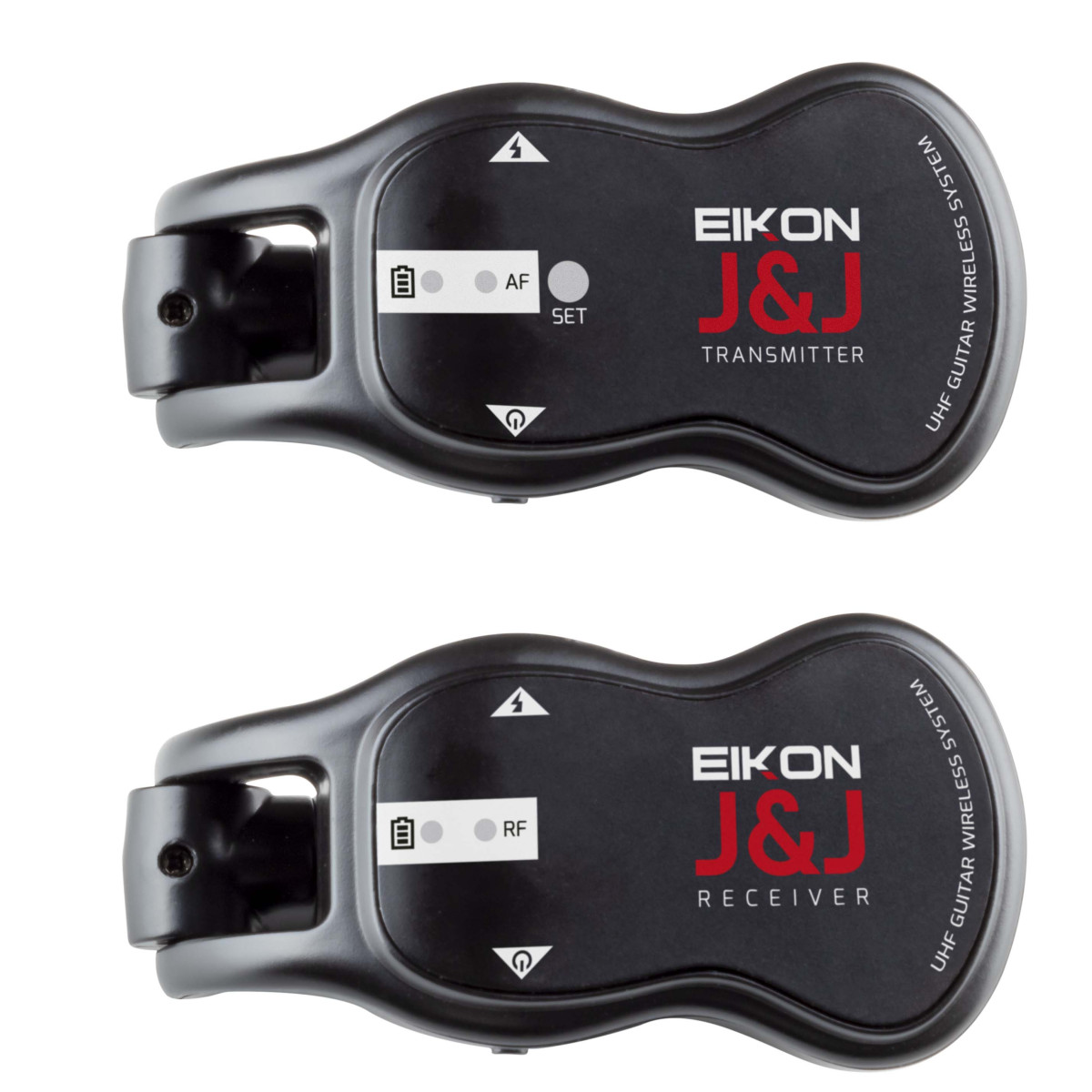

EKJ&J è un sistema per chitarra wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.EKJ&J è dotato di 3 unità: trasmettitore EKJ&J compatto “formato connettore”, ricevitore EKJ&J compatto “formato connettore” e cavo di ricarica da USB a USB-C.Sono disponibili 16 canali di frequenza (modello EKJ&JA a 50 canali), che consentono di utilizzare il dispositivo insieme ad altre apparecchiature wireless.

      • UHF 863– 865 MHz frequency band
      • Quartzlockedmodulation mode
      • Up to 30 meters range
      • Built in 3.7V/500mA lithiumbattery
      • 5V USB charging cable included
      • Up to 4 hours autonomy
      • Up to 6 systems usable in the same location

      Informazioni aggiuntive

      Peso 12 kg
      Dimensioni 37 × 26 × 20 cm

      Microphone&Headphone

      SPECIFICHE TECNICHE

      EKJ&J – UHF PLL 16 Channel Transmitter

      RF Channels

      16 frequency presets

      RF Frequency Band

      UHF: 863-865 MHz

      RF Frequency Stability

      ±0,002%

      RF Oscillation Mode

      Quartz locked

      RF Modulation Type

      Wideband FM Stereo

      RF Output Power

      10mW

      Sub-harmonic

      < 40 dB

      Operating current

      120 mA

      Operating Time

      3 to 5 hrs

      Operating Power Supply

      3.7 V / 500 mA - built-in Lithium battery

      Charging mode

      USB charging 5V – type C connector

      Charging time

      3 hours

      Weight

      0.05 Kg





      EKJ&J –UHF PLL 16 Channels Receiver

      RF Channels

      16 frequency presets

      RF Frequency Band

      UHF: 863-865 MHz

      RF Frequency Stability

      ±0,005%

      RF Oscillation Mode

      Quartz locked

      RF Modulation Type

      Wideband FM Stereo

      RF Receiving Sensitivity

      < -98 dBm

      RF Receiving range

      15 to 30 meters depending on used band conditions

      Audio dynamic range

      106 dBm

      THD Distortion

      < 0.5%

      S/N Ratio

      > 102 dBA

      Audio output connector

      6.3 mm Mono Jack

      Output Power Max (continuous)

      400 mW

      Operating current

      80 mA

      Operating Time

      5 hours

      Operating Power Supply

      3.7 V / 500 mA - built-in Lithium battery

      Charging mode

      USB charging 5V – type C connector

      Charging time

      3 hours

      Weight

      0.05 Kg

      EKJ&JA – UHF PLL 50 Channel Transmitter

      RF Channels

      50 frequency presets

      RF Frequency Band

      UHF: 512 – 541,7 MHz

      RF Frequency Stability

      ±0,002%

      RF Oscillation Mode

      Quartz locked

      RF Modulation Type

      Wideband FM Stereo

      RF Output Power

      10mW

      Sub-harmonic

      < 40 dB

      Operating current

      120 mA

      Operating Time

      3 to 5 hrs

      Operating Power Supply

      3.7 V / 500 mA - built-in Lithium battery

      Charging mode

      USB charging 5V – type C connector

      Charging time

      3 hours

      Weight

      0.05 Kg





      EKJ&JA –UHF PLL 50 Channels Receiver

      RF Channels

      50 frequency presets

      RF Frequency Band

      UHF: 512 – 541,7 MHz

      RF Frequency Stability

      ±0,005%

      RF Oscillation Mode

      Quartz locked

      RF Modulation Type

      Wideband FM Stereo

      RF Receiving Sensitivity

      < -98 dBm

      RF Receiving range

      15 to 30 meters depending on used band conditions

      Audio dynamic range

      106 dBm

      THD Distortion

      < 0.5%

      S/N Ratio

      > 102 dBA

      Audio output connector

      6.3 mm Mono Jack

      Output Power Max (continuous)

      400 mW

      Operating current

      80 mA

      Operating Time

      5 hours

      Operating Power Supply

      3.7 V / 500 mA - built-in Lithium battery

      Charging mode

      USB charging 5V – type C connector

      Charging time

      3 hours

      Weight

      0.05 Kg
