Additional information
| Weight | 28.8 kg |
|---|---|
| Dimensions | 57 × 35 × 56 cm |

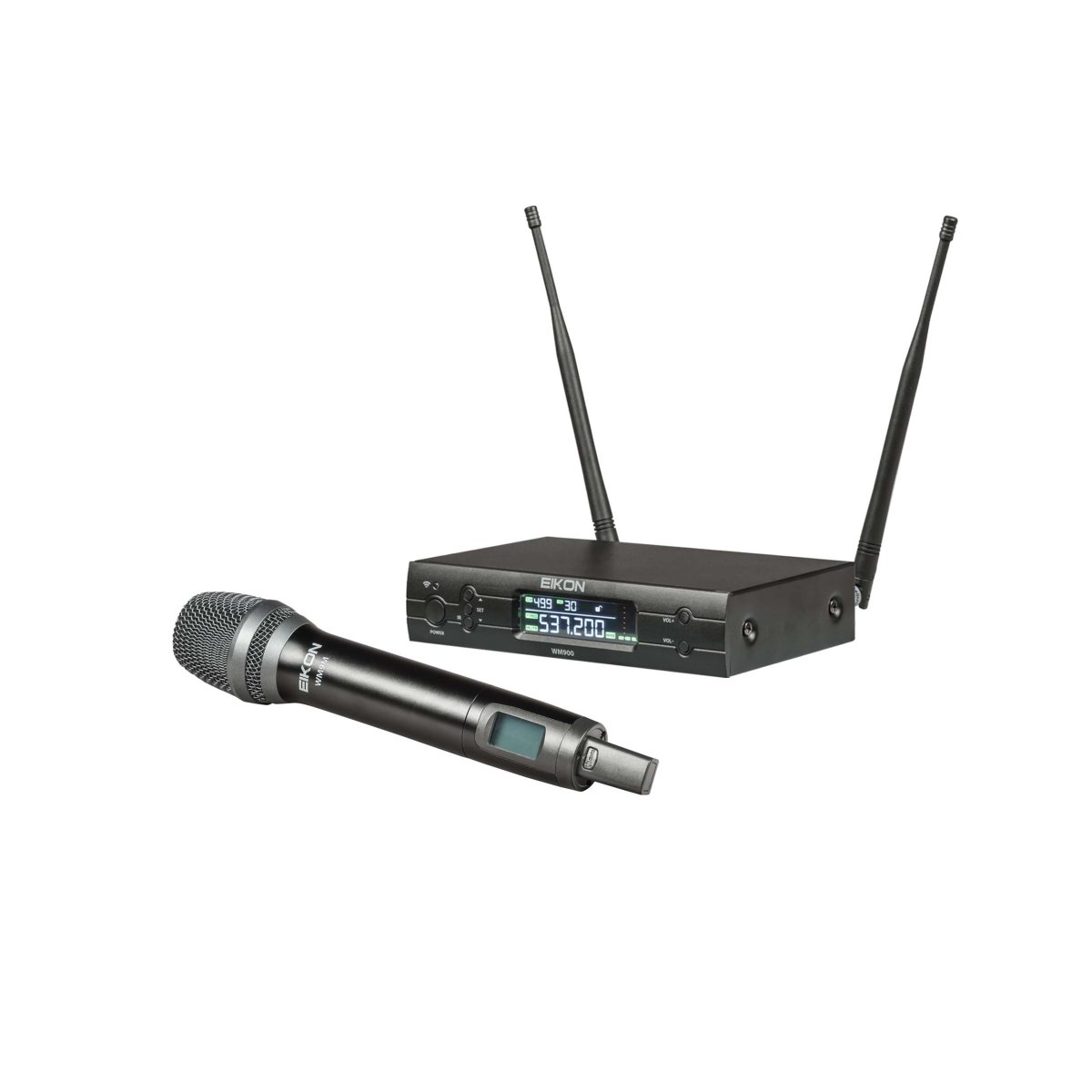

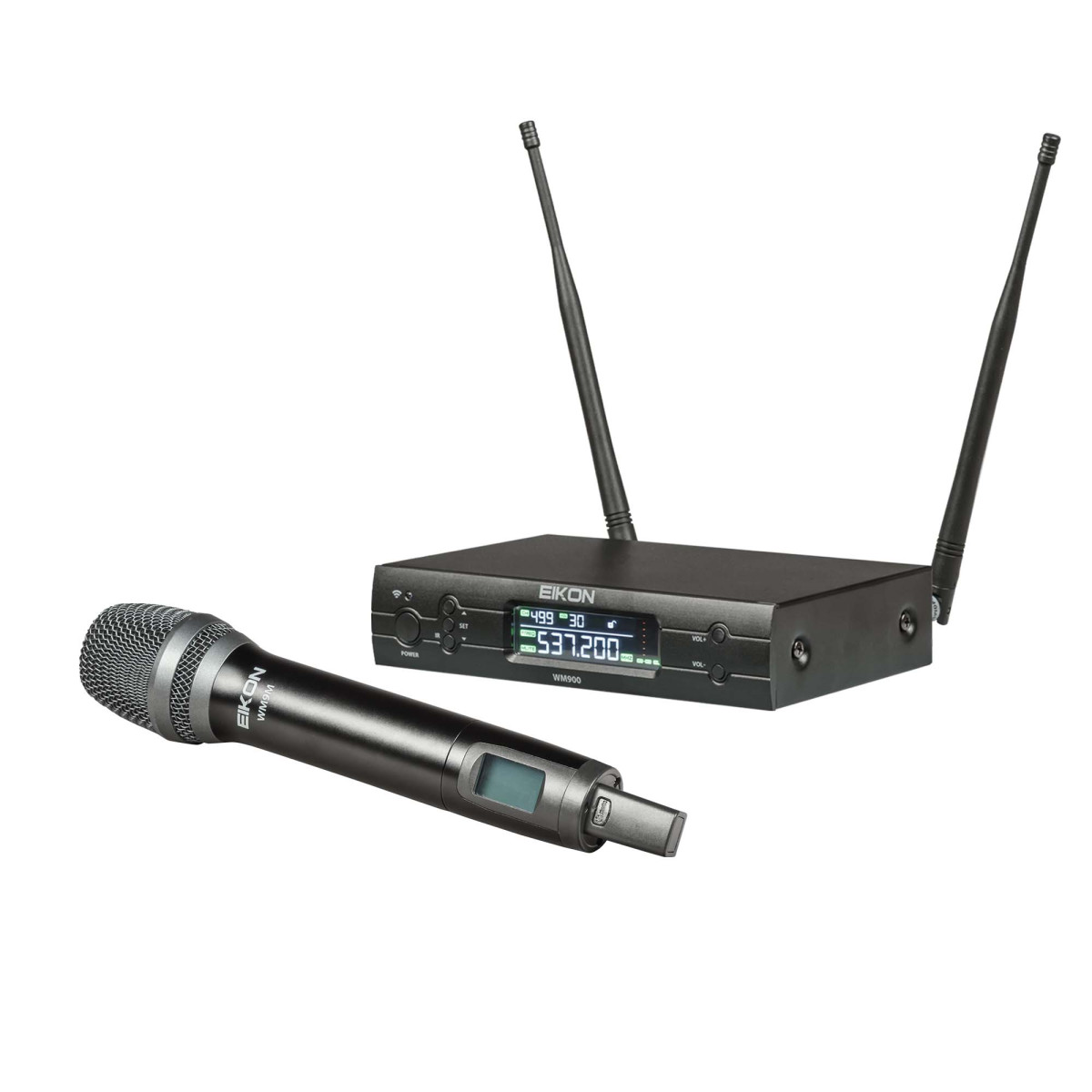

WM900M
professional uhf diversity wireless microphone with handheld transmitter
€149.00
The new EIKON WM900 is a professional UHF TRUE DIVERSITY series, designed for musicians, presenters, and entertainment professionals, but with a focus on budget.
The design was entirely developed by EIKON to ensure maximum reliability and durability for a long life.
The receiver and handheld transmitter are made entirely of metal, while the bodypack transmitter is made of high-density PP, combining strength and maximum lightness.

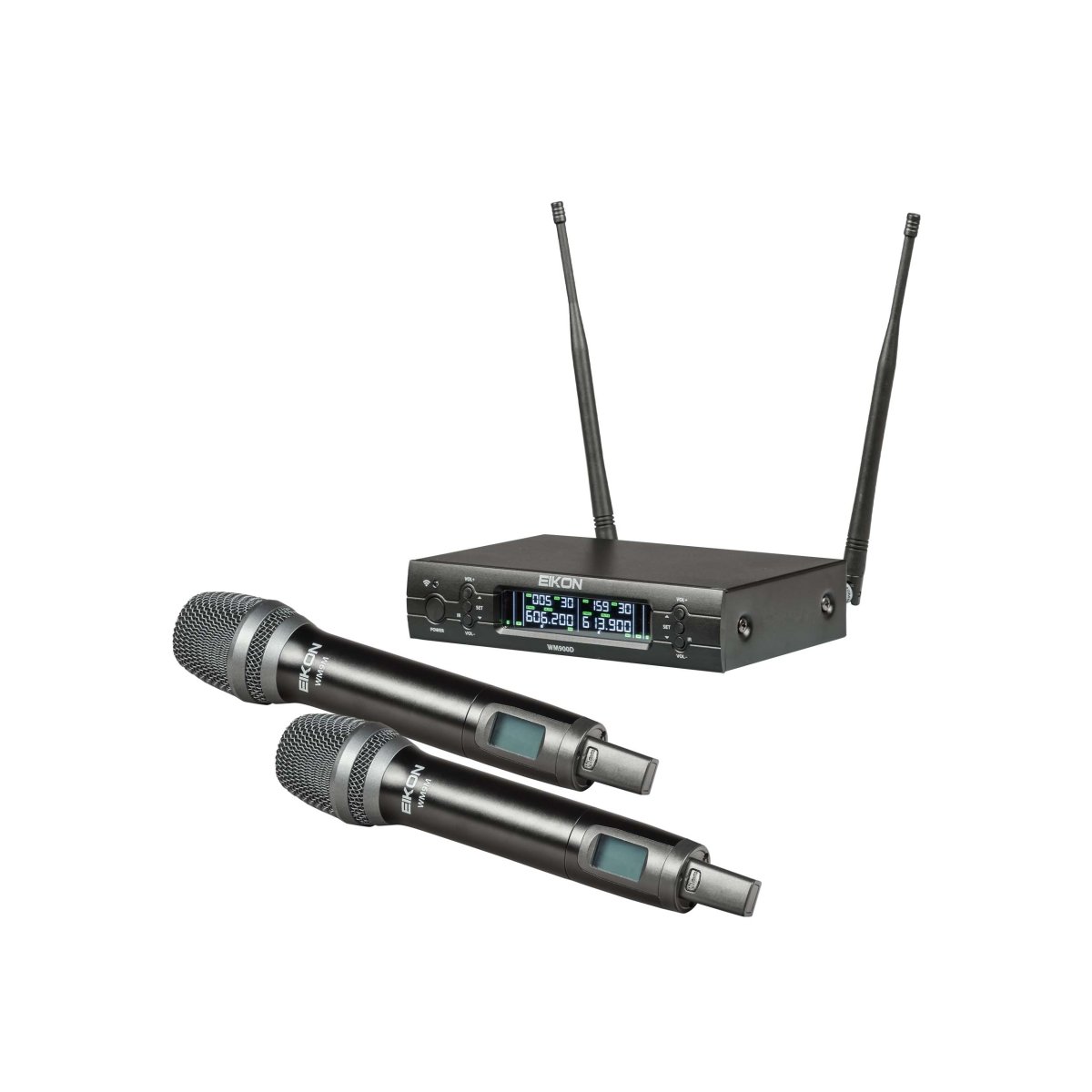

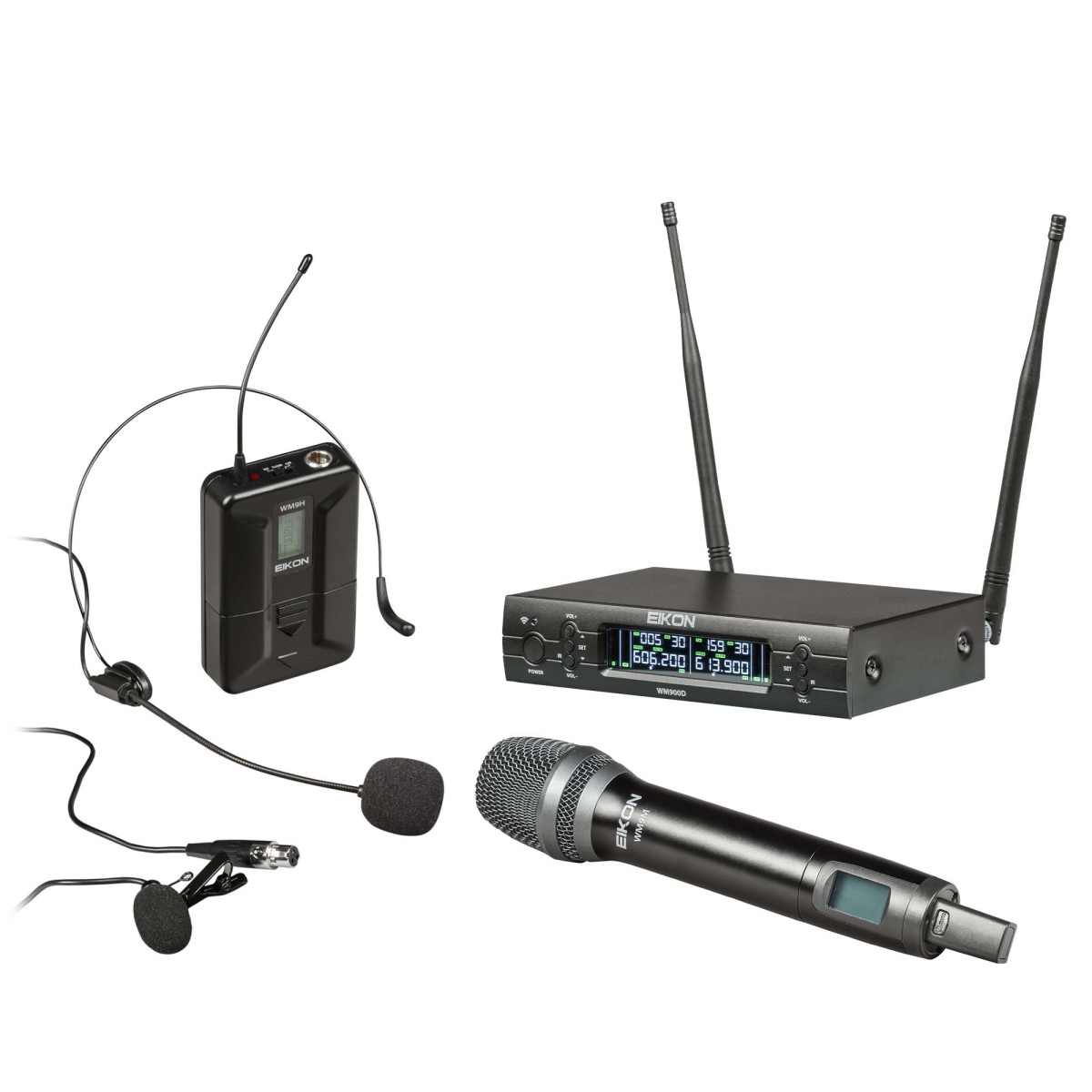

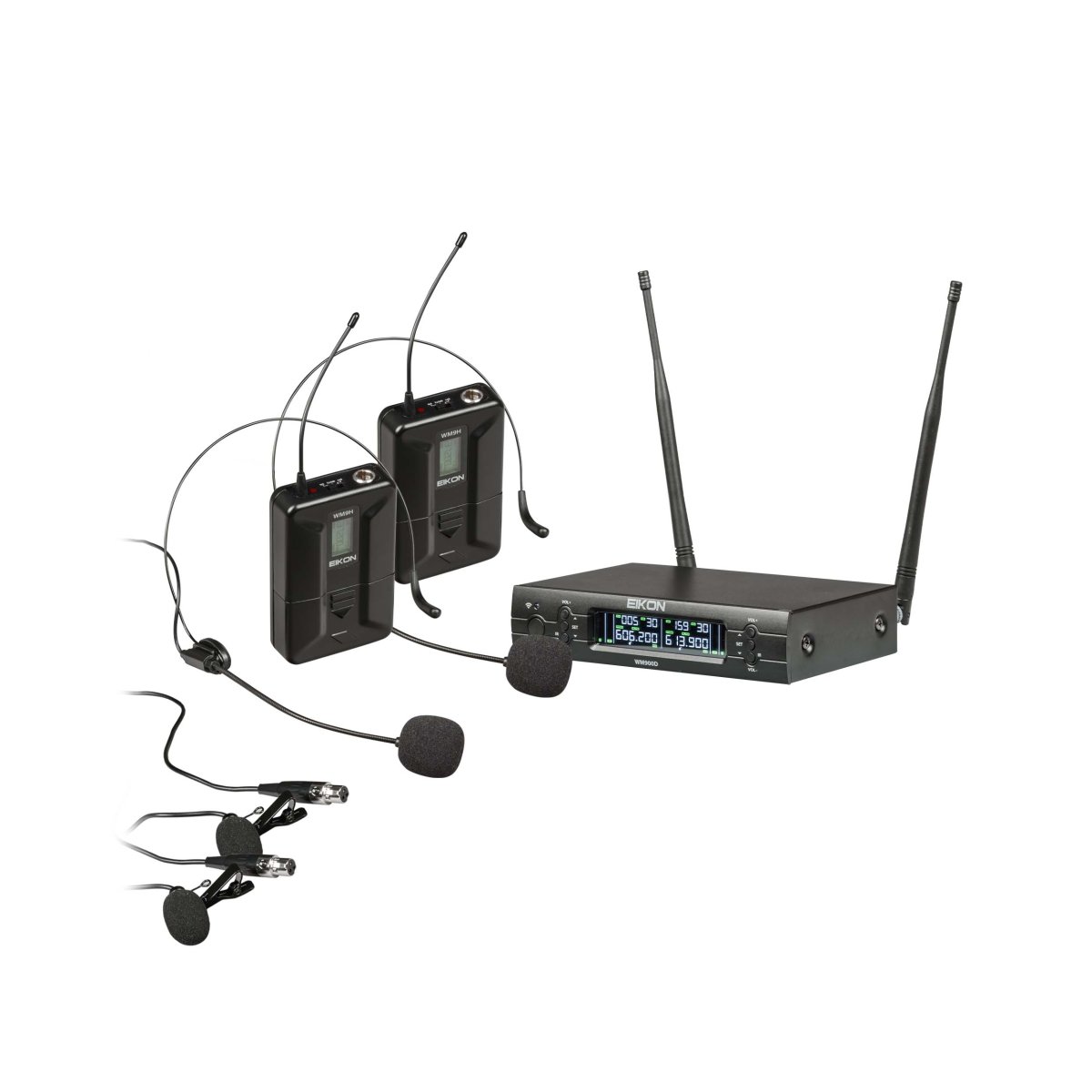

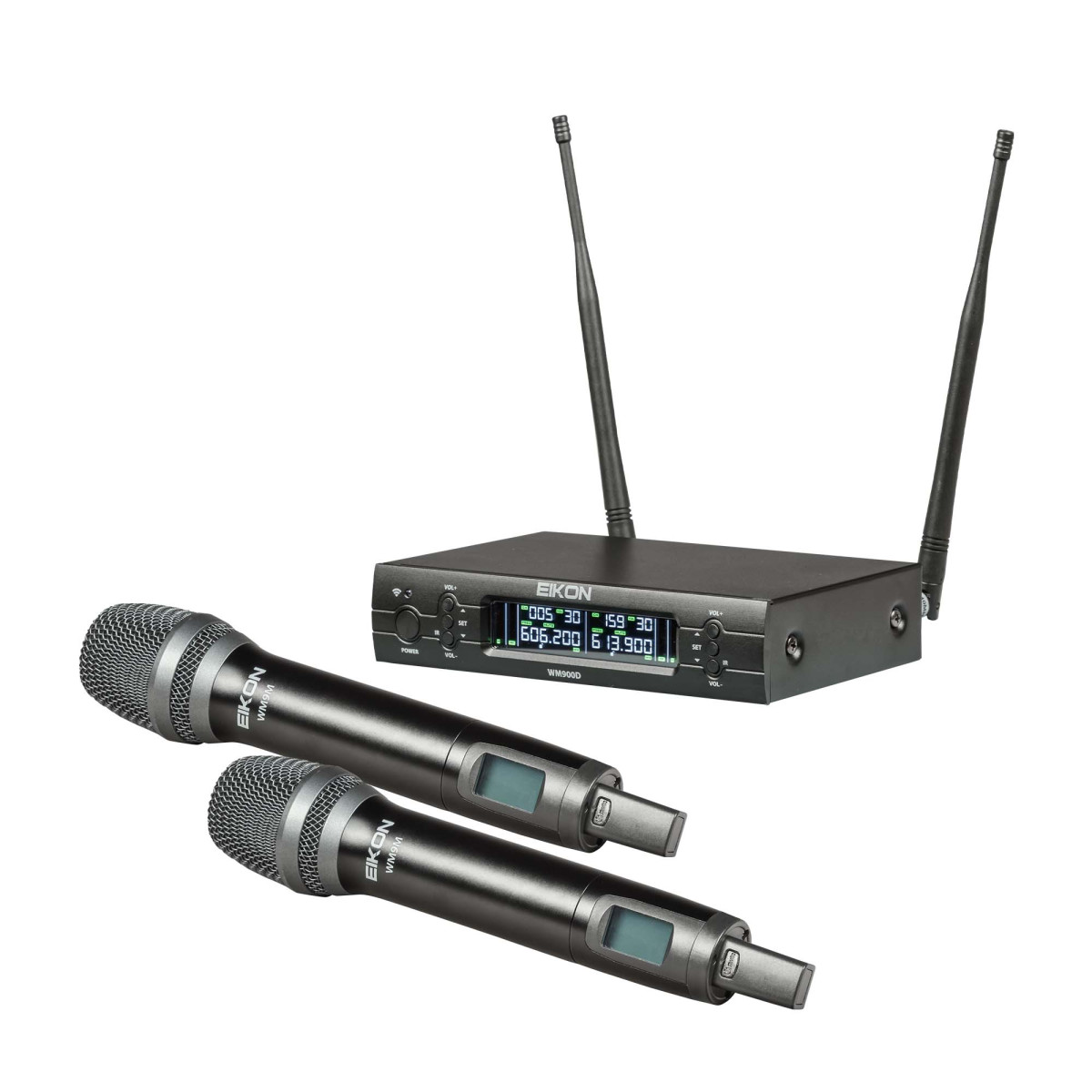

The WM900 wireless microphone system offers 5 different combinations with a single-channel receiver, dual-channel receiver, handheld transmitter, and bodypack transmitter with headset and lavalier microphone.
The system is available in 3 different preset frequency bands that can also be used simultaneously: 512 – 568; 606 – 614; 614 – 670 MHz.

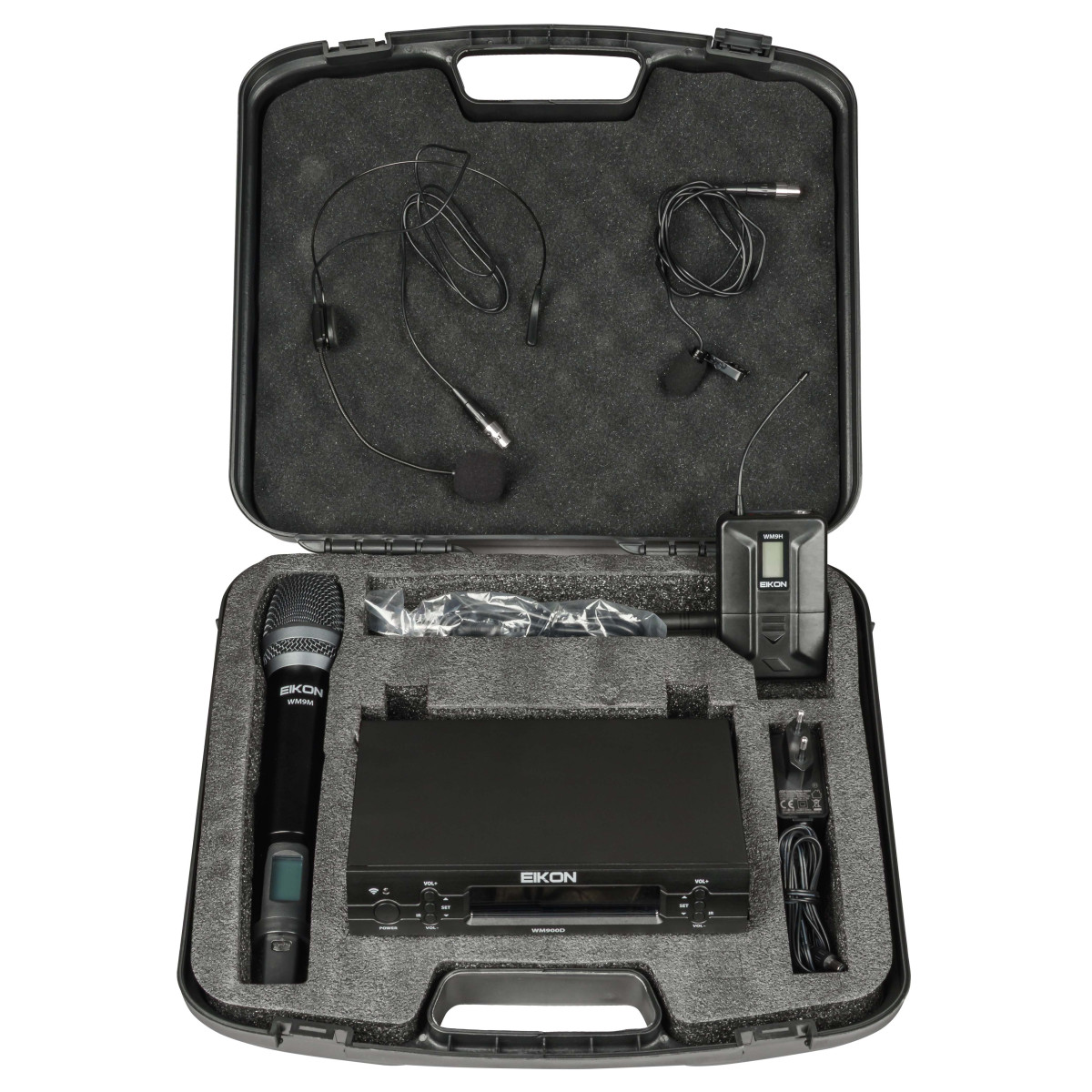

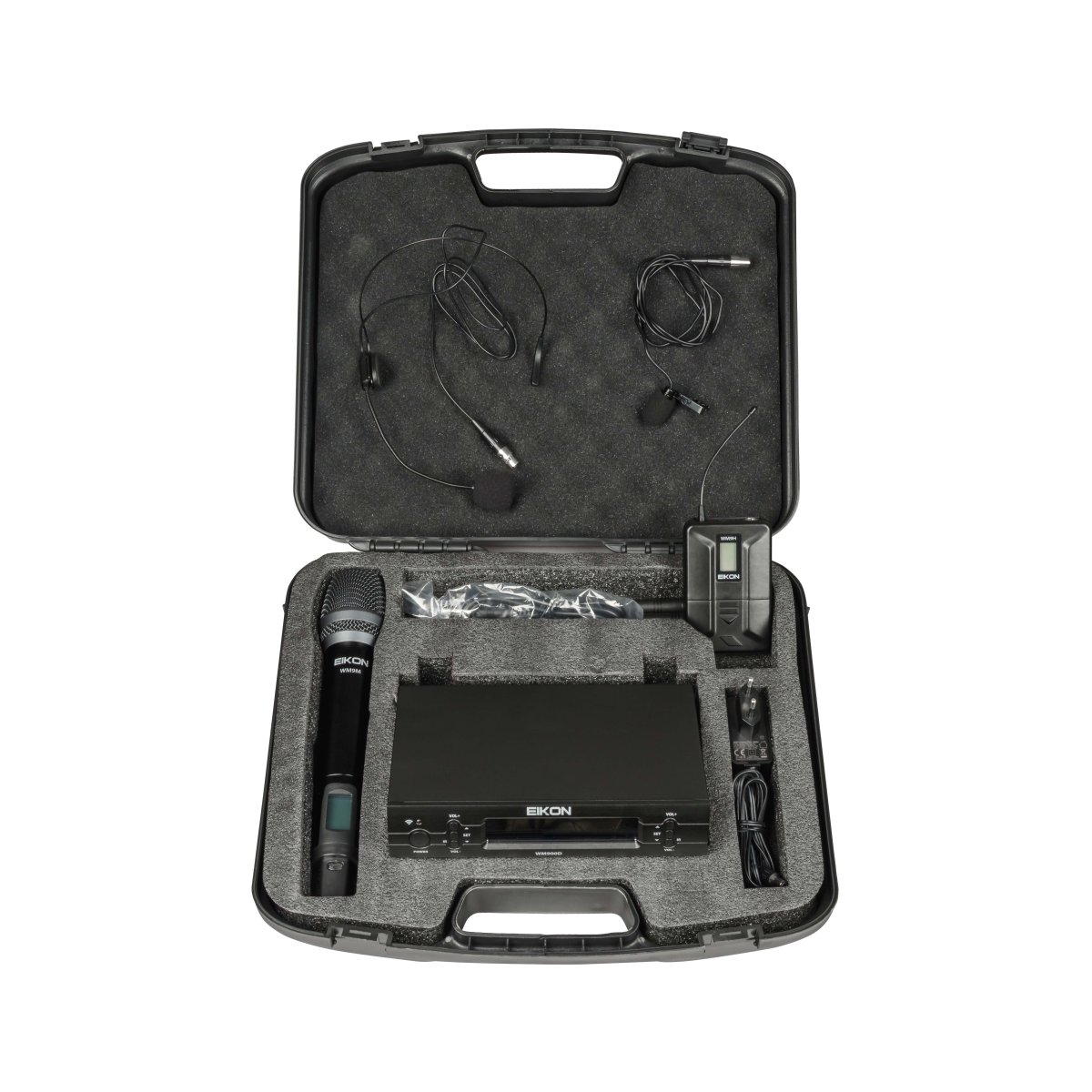

Each configuration includes a sturdy ABS carrying case.
- True Diversity Receiver
- PLL Tuning
- 50 meters range in open space
- BNC antenna OUTPUTS
- Cardioid handheld microphone transmitter
- Bodypack transmitter with 3 pole mini-XLR plug
- headset and lavalier mics are included
- Sync IR Function
- Auto Scan Function
- Balanced and unbalanced OUTPUTS
- ABS carrying case
TECHNICAL SPECIFICATIONS
|

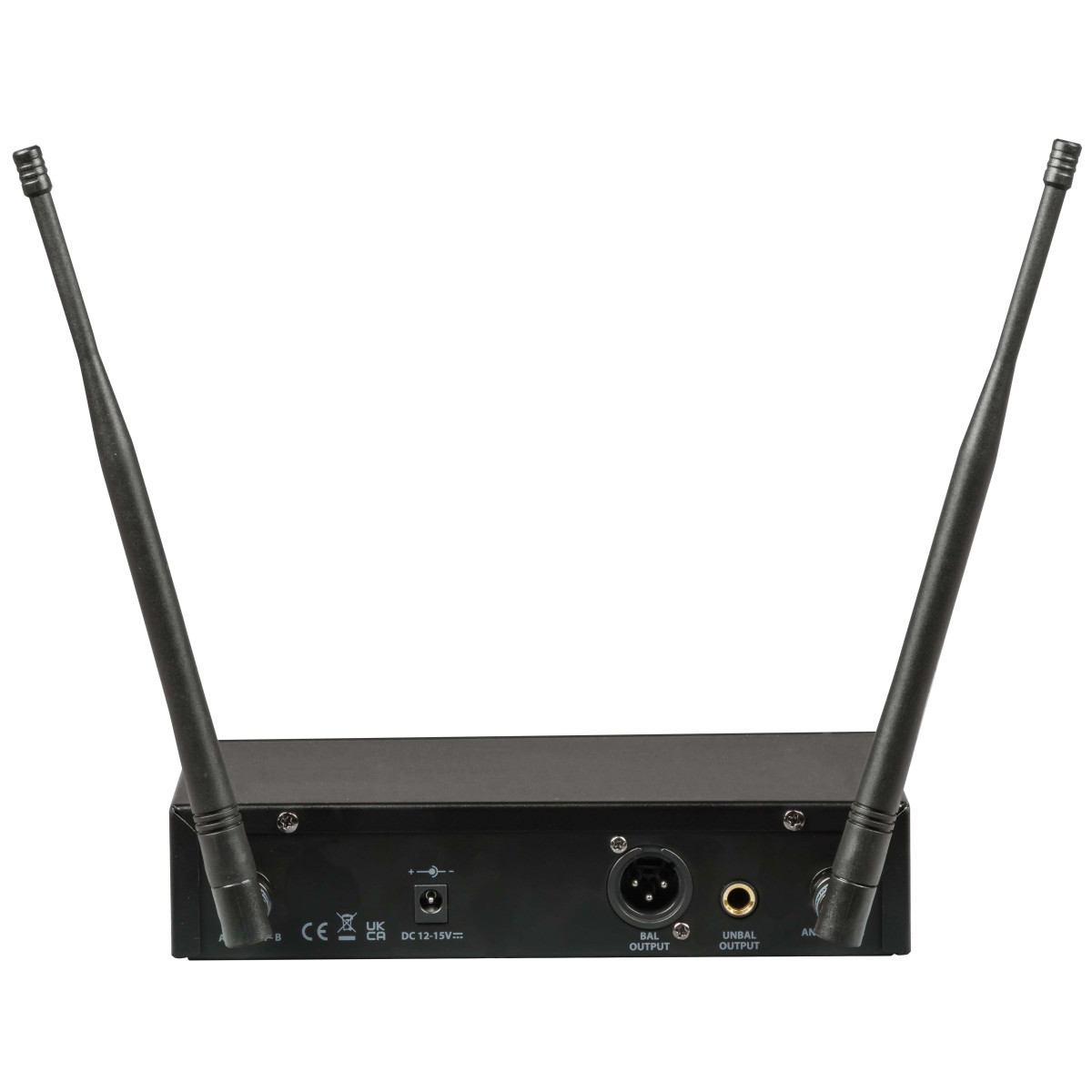

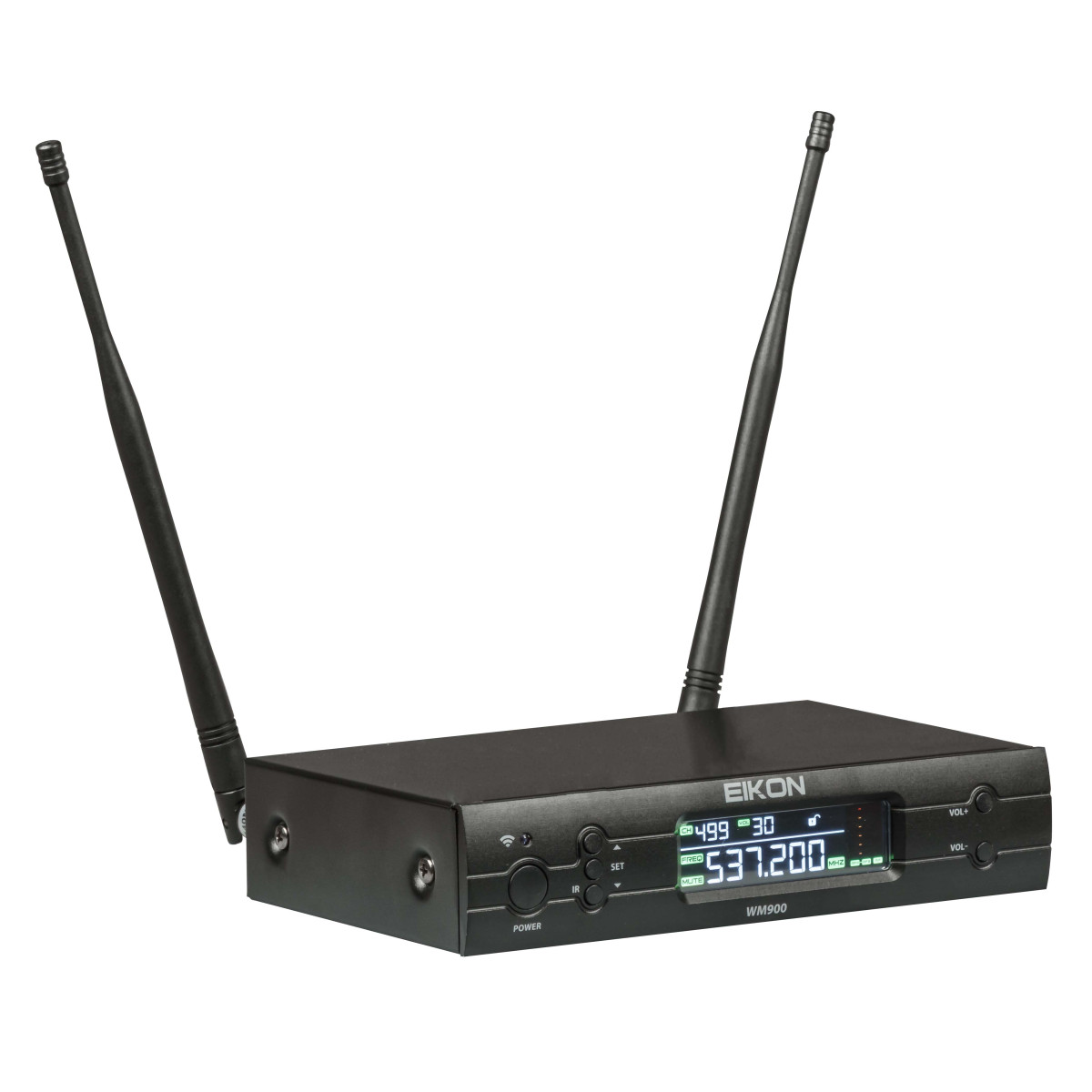

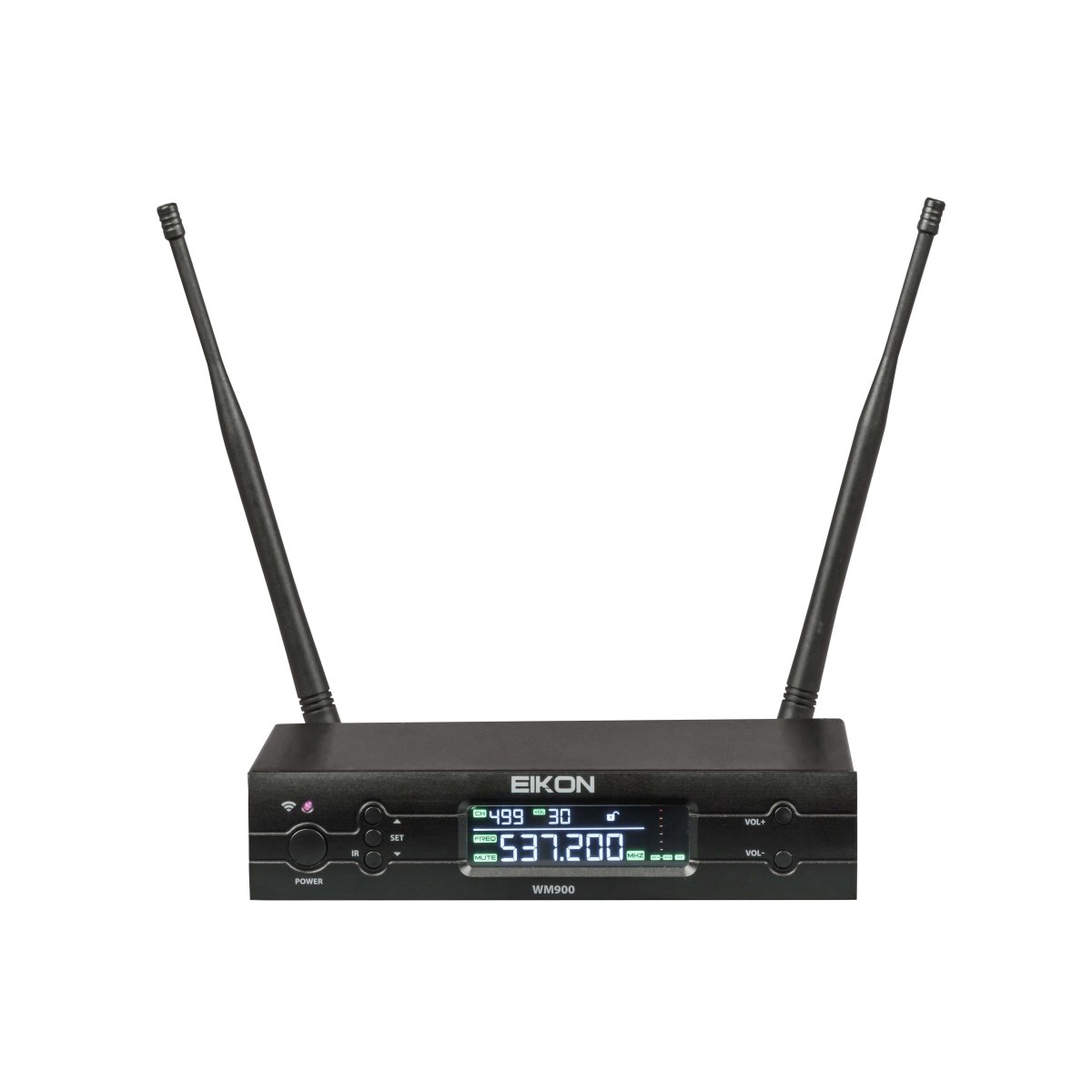

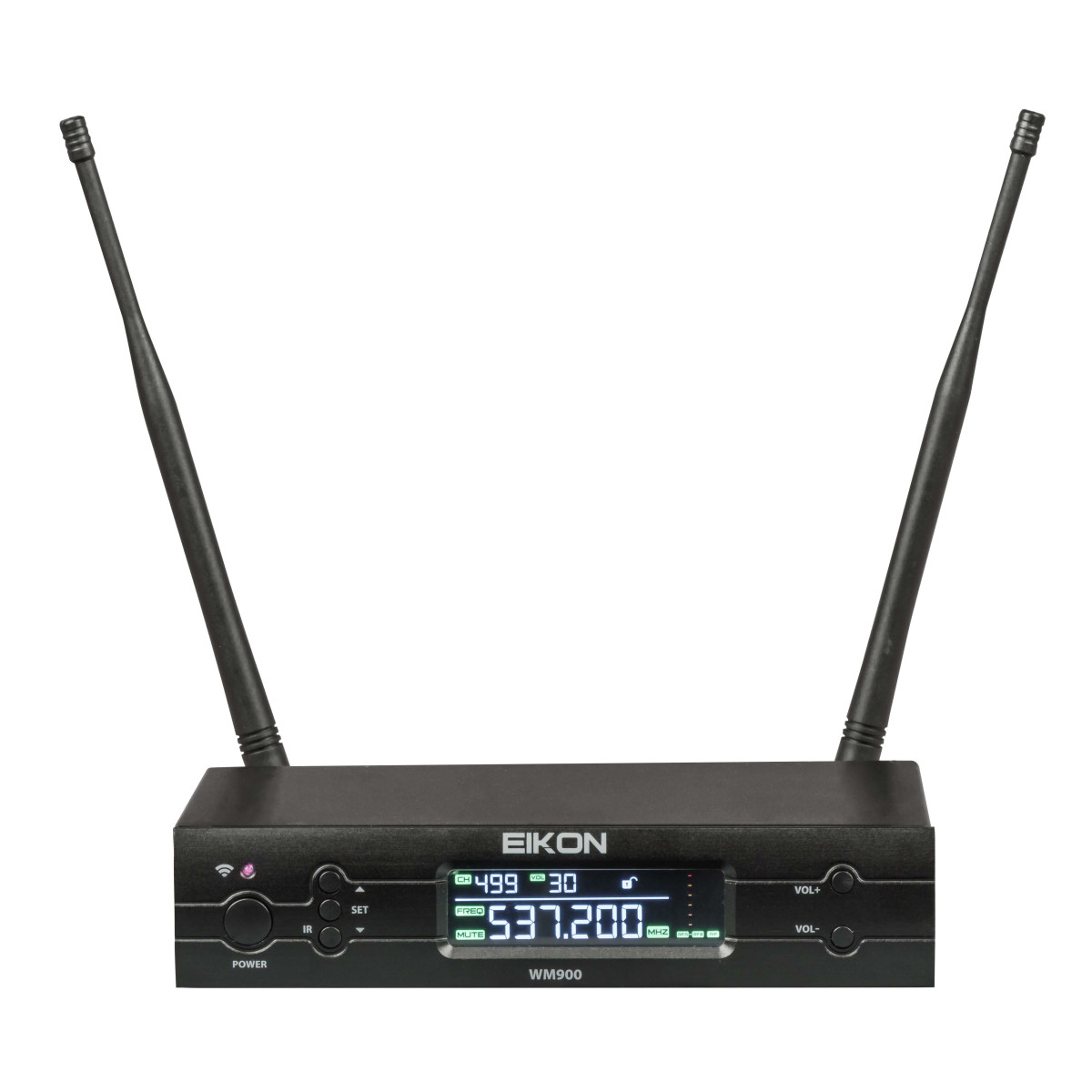

WM900 / WM900D– Ricevitore UHF PLL |
|
|
RF Channels |
Depending on frequency band and country applicable regulations |
|
RF Frequency Band |
UHF A: 512 - 568 MHz |
|
|
UHF B: 606 - 614 MHz |
|
|
UHF C: 614 - 670 MHz |
|
RF Receiver Type |
PLL UHF Synthesized |
|
RF Modulation type |
FM |
|
RF Sensitivity |
-90 dBm / 12 dB SINAD |
|
THD Distortion |
< 1 % |
|
S/N Ratio |
> 90 dB |
|
Dynamic Ratio |
> 100 dB |
|
Frequency Response |
60 Hz – 17000 Hz (±3 dB) |
|
XLR balanced nominal audio output |
-10 dBu (245 mVrms) |
|
JACK unbalanced nominal audio output |
0 dBu (775 mVrms) |
|
Power Supply |
12 - 15V DC 500 mA |
|
Dimensions |
H 43 x L 213 x W 133 mm |
|
Weight |
750 g |
|

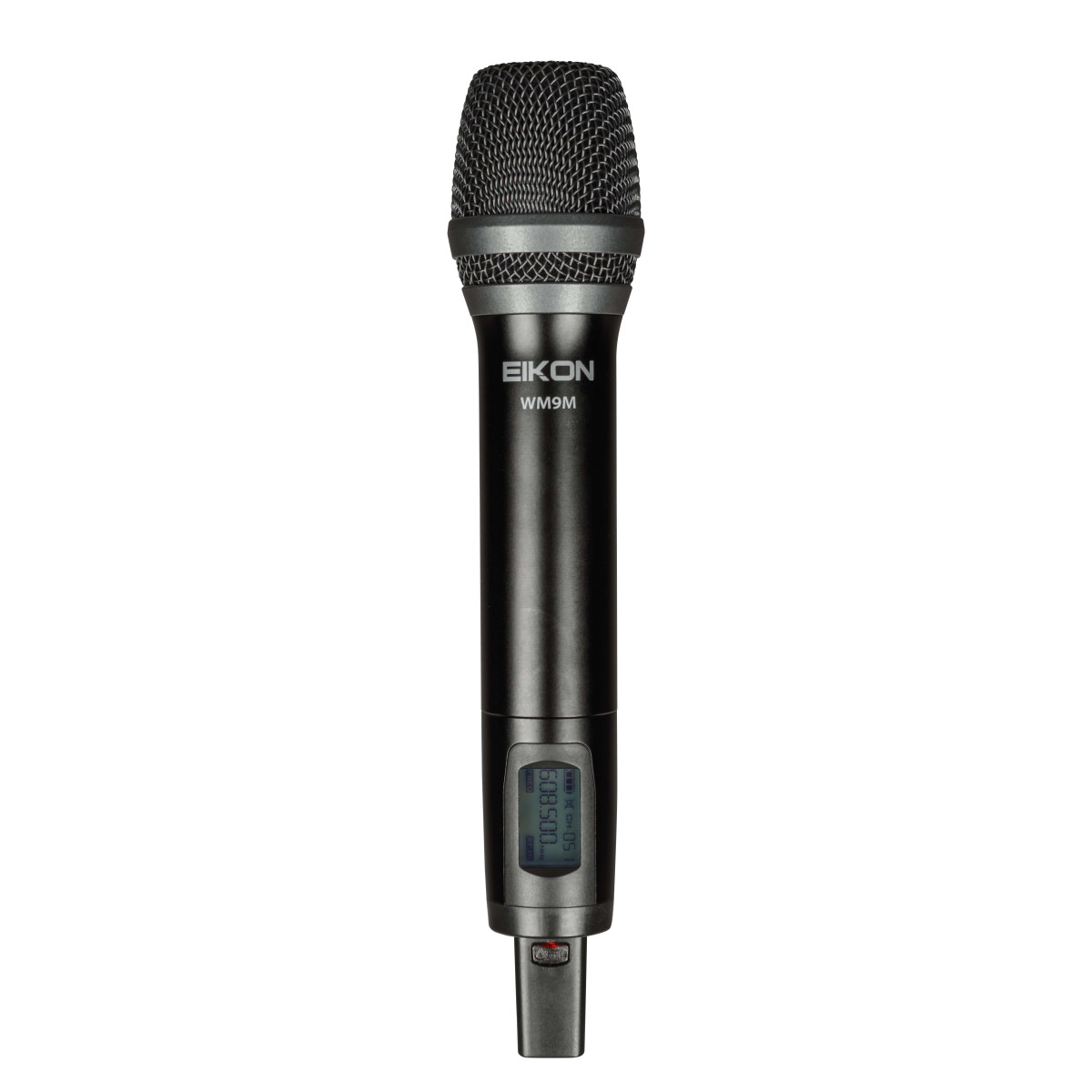

WM9M – Trasmettitore manuale UHF PLL |
|
|
RF Channels |
Depending on frequency band and country applicable regulations |
|
RF Frequency Band |
UHF A: 512 - 568 MHz |
|
|
UHF B: 606 - 614 MHz |
|
|
UHF C: 614 - 670 MHz |
|
RF Power |
max 10 mW |
|
Modulation method |
FM |
|
RF Max deviation |
± 75 KHz |
|
RF Frequency Stability |
± 0.002% (-10 ÷ +50 °c) |
|
Spurious Emission |
under limits EN 300422 |
|
Frequency Response |
50 Hz – 17000 Hz (±3 dB) |
|
Microphone type |
Dynamic Cardioid |
|
Power Supply |
2x1.5V AA alkaline battery |
|
Dimensions (DxH) |
49 x 257 mm |
|
Weight |
350 g |
|

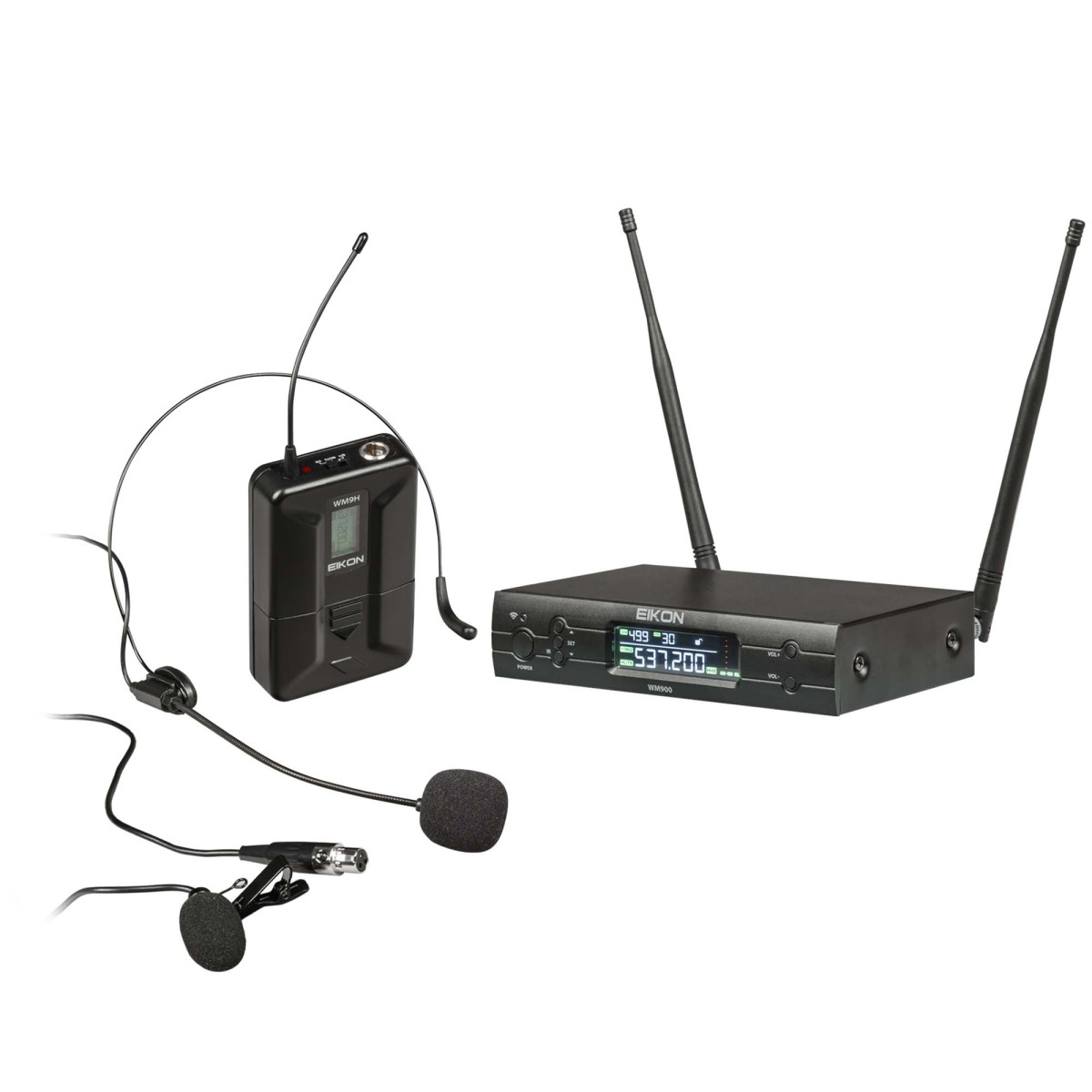

WM9H – Trasmettitore Bodypack UHF PLL |
|
|
RF Channels |
Depending on frequency band and country applicable regulations |
|
RF Frequency Band |
UHF A: 512 - 568 MHz |
|
|
UHF B: 606 - 614 MHz |
|
|
UHF C: 614 - 670 MHz |
|
RF Power |
max 10 mW |
|
Modulation method |
FM |
|
RF Max deviation |
± 75 KHz |
|
RF Frequency Stability |
± 0.002% (-10 ÷ +50 °c) |
|
Spurious Emission |
under limits EN 300422 |
|
Frequency Response |
50 Hz – 16000 Hz (±3 dB) |
|
Microphone included |
Headset and Lavalier Black color |
|
Input connector |
Mini Xlr 3P |
|
Power Supply |
2x1.5V AA alkaline battery |
|
Dimensions (HxWxD) |
98 x 63 x 24 mm |
|
Weight |
130 g |
