WM900H
professional uhf diversity wireless microphone with bodypack transmitter
€149.00
The new EIKON WM900 is a professional UHF TRUE DIVERSITY series, designed for musicians, presenters, and entertainment professionals, but with a focus on budget.
The design was entirely developed by EIKON to ensure maximum reliability and durability for a long life.
The receiver and handheld transmitter are made entirely of metal, while the bodypack transmitter is made of high-density PP, combining strength and maximum lightness.
The WM900 wireless microphone system offers 5 different combinations with a single-channel receiver, dual-channel receiver, handheld transmitter, and bodypack transmitter with headset and lavalier microphone.
The system is available in 3 different preset frequency bands that can also be used simultaneously: 512 – 568; 606 – 614; 614 – 670 MHz.
Each configuration includes a sturdy ABS carrying case.
- True Diversity Receiver
- PLL Tuning
- 50 meters range in open space
- BNC antenna OUTPUTS
- Cardioid handheld microphone transmitter
- Bodypack transmitter with 3 pole mini-XLR plug
- headset and lavalier mics are included
- Sync IR Function
- Auto Scan Function
- Balanced and unbalanced OUTPUTS
- ABS carrying case
POWER AND RELIABILITY
Designed for those
who demand absolute reliability,
professional audio quality, and durability.
An exclusive, essential, and professional
design that combines reliability and
style at first glance.
TOTAL CONTROL
At the heart of the series is a highperformance
True Diversity PLL
system, combined with a solid
construction with all-metal handheld
receivers and transmitters.
The bodypack, made of high-density PP,
ensures the perfect balance between
strength and lightness, making the
WM900 ideal for intensive use on
stage, in theaters, conferences, and
live events.
PROFESSIONAL FUNCTIONS
Automatic frequency scanning and a range of up to
50 meters in open space
• Three available frequency bands, which can be used
simultaneously
• Balanced XLR and unbalanced JACK audio outputs
• BNC antennas for a stable and fast connection
• Cardioid dynamic handheld microphone, ideal for
any type of voice and speech

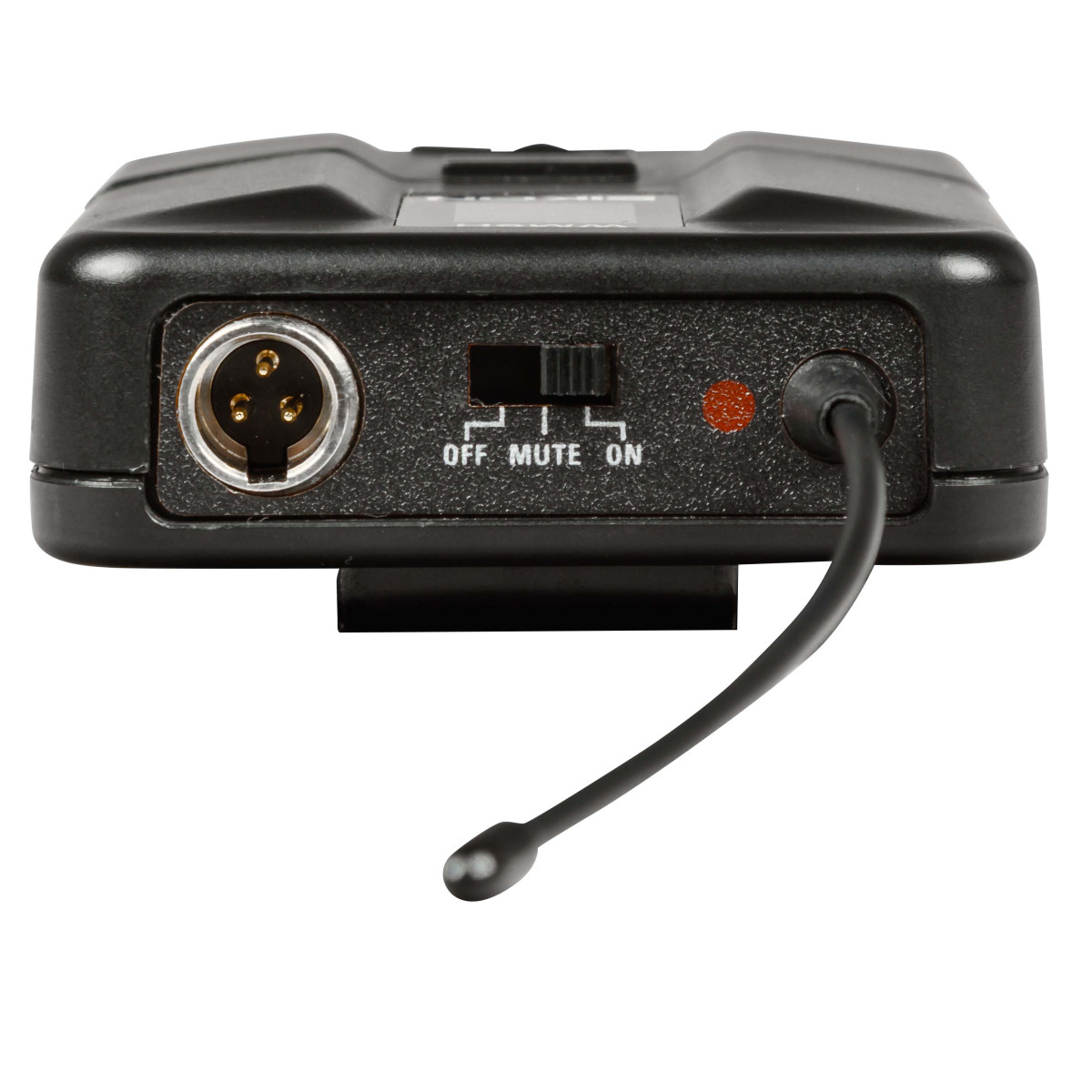

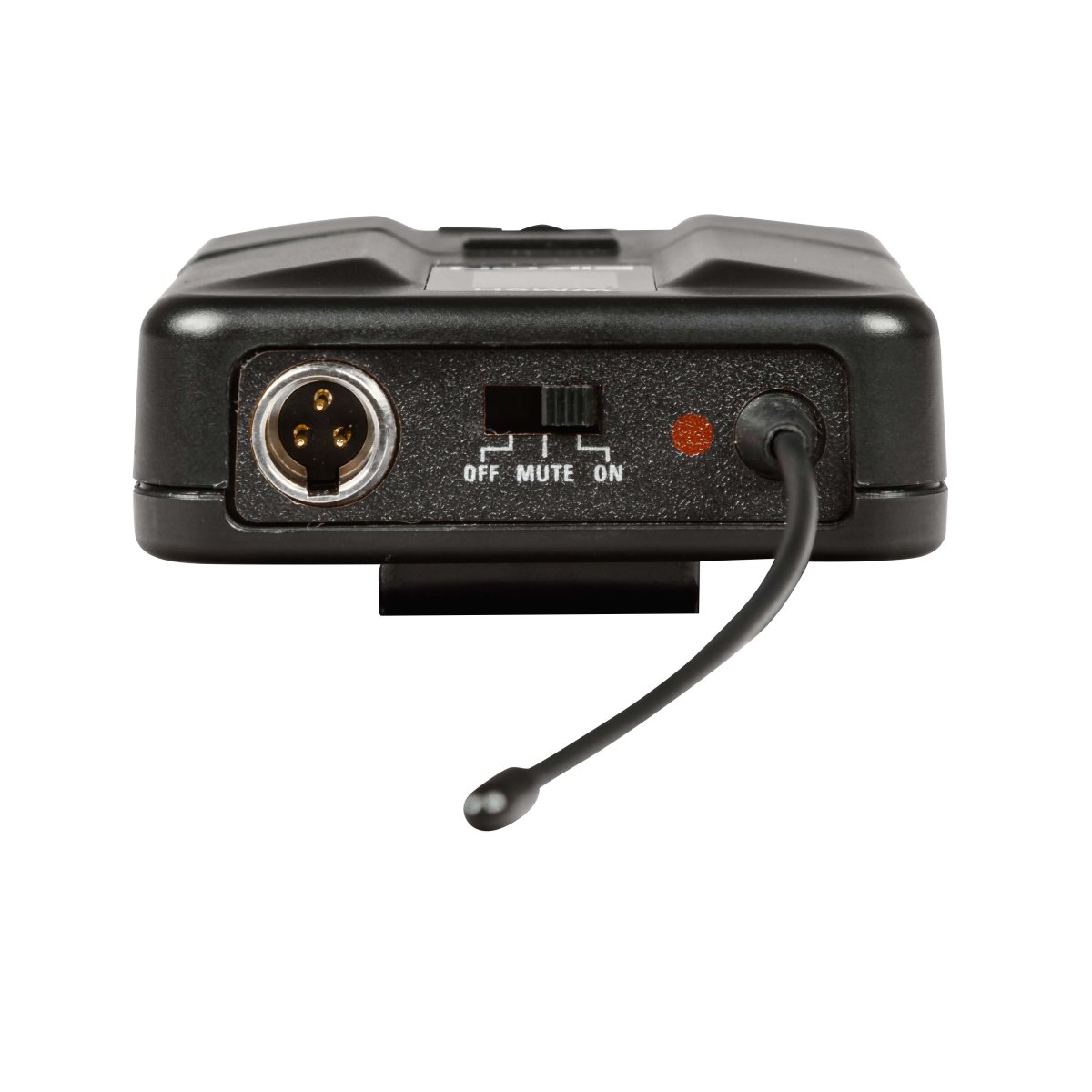

• Bodypack with Mini-XLR 3P connector, with
headset and lavalier microphones included
• Carrying case included
ONE SYSTEM, A THOUSAND APPLICATIONS
Thanks to the 5 available configurations, the WM900 adapts to every
operational need, from a single performer to more complex setups:
Live music – Theater and
entertainment – Conferences
and speech – Corporate events
and installations
TECHNICAL SPECIFICATIONS
|
WM900 / WM900D– Ricevitore UHF PLL |
|
|
RF Channels |
Depending on frequency band and country applicable regulations |
|
RF Frequency Band |
UHF A: 512 - 568 MHz |
|
|
UHF B: 606 - 614 MHz |
|
|
UHF C: 614 - 670 MHz |
|
RF Receiver Type |
PLL UHF Synthesized |
|
RF Modulation type |
FM |
|
RF Sensitivity |
-90 dBm / 12 dB SINAD |
|
THD Distortion |
< 1 % |
|
S/N Ratio |
> 90 dB |
|
Dynamic Ratio |
> 100 dB |
|
Frequency Response |
60 Hz – 17000 Hz (±3 dB) |
|
XLR balanced nominal audio output |
-10 dBu (245 mVrms) |
|
JACK unbalanced nominal audio output |
0 dBu (775 mVrms) |
|
Power Supply |
12 - 15V DC 500 mA |
|
Dimensions |
H 43 x L 213 x W 133 mm |
|
Weight |
750 g |
|
WM9M – Trasmettitore manuale UHF PLL |
|
|
RF Channels |
Depending on frequency band and country applicable regulations |
|
RF Frequency Band |
UHF A: 512 - 568 MHz |
|
|
UHF B: 606 - 614 MHz |
|
|
UHF C: 614 - 670 MHz |
|
RF Power |
max 10 mW |
|
Modulation method |
FM |
|
RF Max deviation |
± 75 KHz |
|
RF Frequency Stability |
± 0.002% (-10 ÷ +50 °c) |
|
Spurious Emission |
under limits EN 300422 |
|
Frequency Response |
50 Hz – 17000 Hz (±3 dB) |
|
Microphone type |
Dynamic Cardioid |
|
Power Supply |
2x1.5V AA alkaline battery |
|
Dimensions (DxH) |
49 x 257 mm |
|
Weight |
350 g |
|

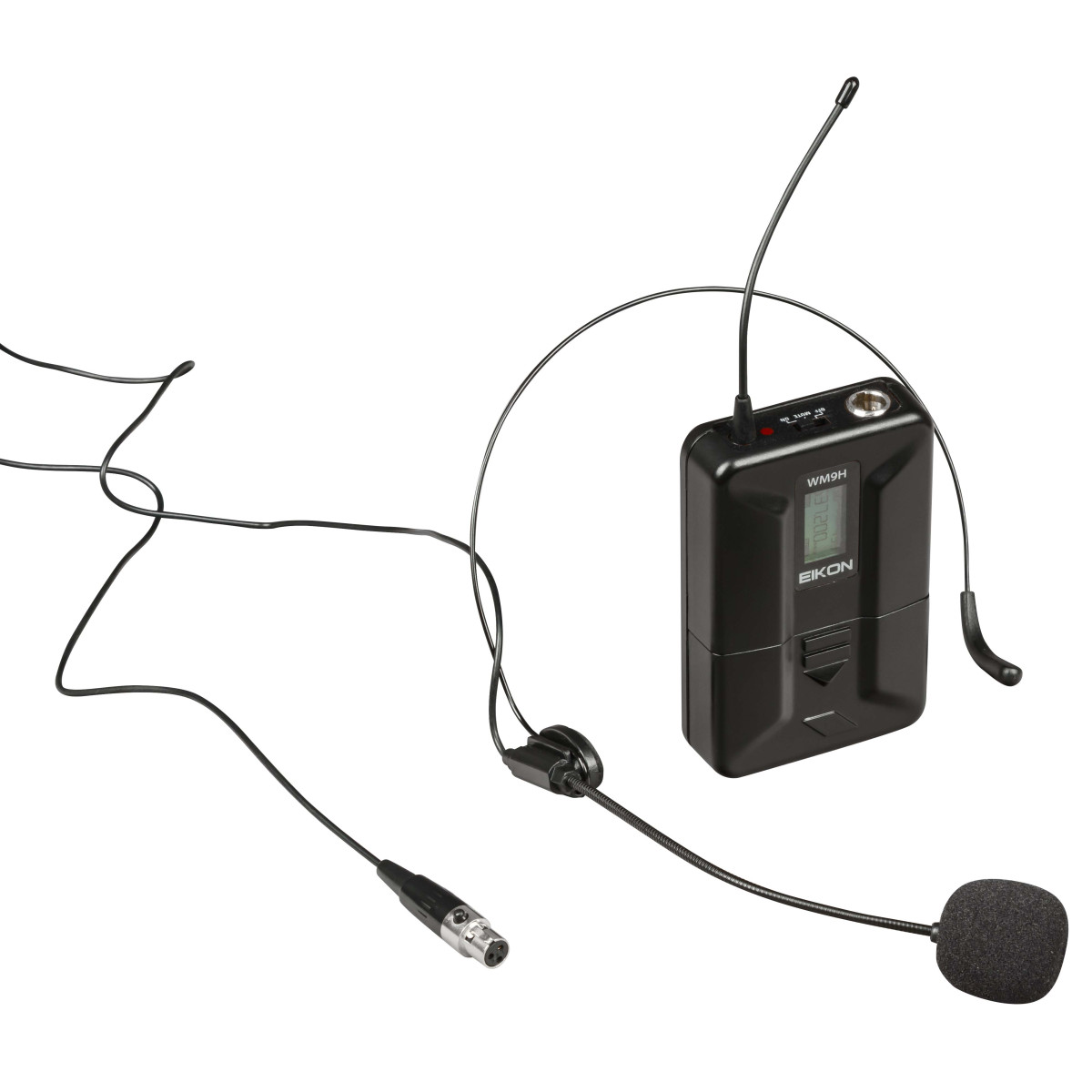

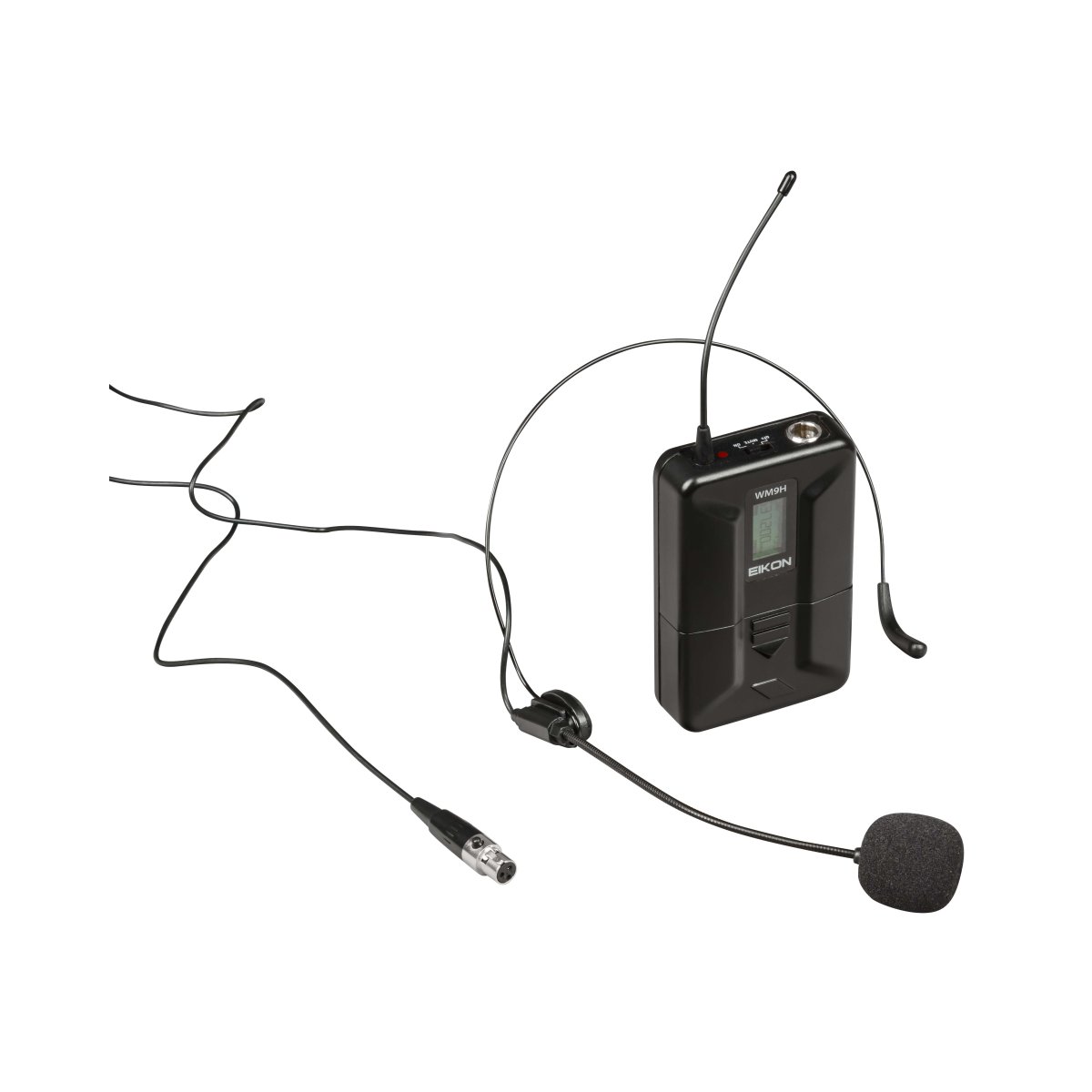

WM9H – Trasmettitore Bodypack UHF PLL |
|
|
RF Channels |
Depending on frequency band and country applicable regulations |
|
RF Frequency Band |
UHF A: 512 - 568 MHz |
|
|
UHF B: 606 - 614 MHz |
|
|
UHF C: 614 - 670 MHz |
|
RF Power |
max 10 mW |
|
Modulation method |
FM |
|
RF Max deviation |
± 75 KHz |
|
RF Frequency Stability |
± 0.002% (-10 ÷ +50 °c) |
|
Spurious Emission |
under limits EN 300422 |
|
Frequency Response |
50 Hz – 16000 Hz (±3 dB) |
|
Microphone included |
Headset and Lavalier Black color |
|
Input connector |
Mini Xlr 3P |
|
Power Supply |
2x1.5V AA alkaline battery |
|
Dimensions (HxWxD) |
98 x 63 x 24 mm |
|
Weight |
130 g |
