WM101MV2

uhf wireless handheld microphone system

69.00

EIKON’s WM101 V2 series is a complete range of single or dual channel wireless products with handheld transmitters or bodypack transmitters with headset microphone.

This line of products offers a particularly interesting value for money, thanks to the quality capsule of the transmitters and the Digital Encrypting system with 3 available channels.

Single-channel systems include a rugged ABS housing while dual-channel systems include a solid metal chassis.

  • Fixed frequency wireless microphone system
  • Encrypted Digital Audio
  • 863 – 865 Mhz frequency range
  • 30 meter/ 100 feet range
  • 50 Hz -15 KHz frequency response
  • Cardioid dynamic capsule
  • Up to 3 frequency usable in the same location
  • ABS carrying and storage case

Additional information

Weight 12 kg
Dimensions 57 × 35 × 56 cm

Wireless Microphones

TECHNICAL SPECIFICATIONS

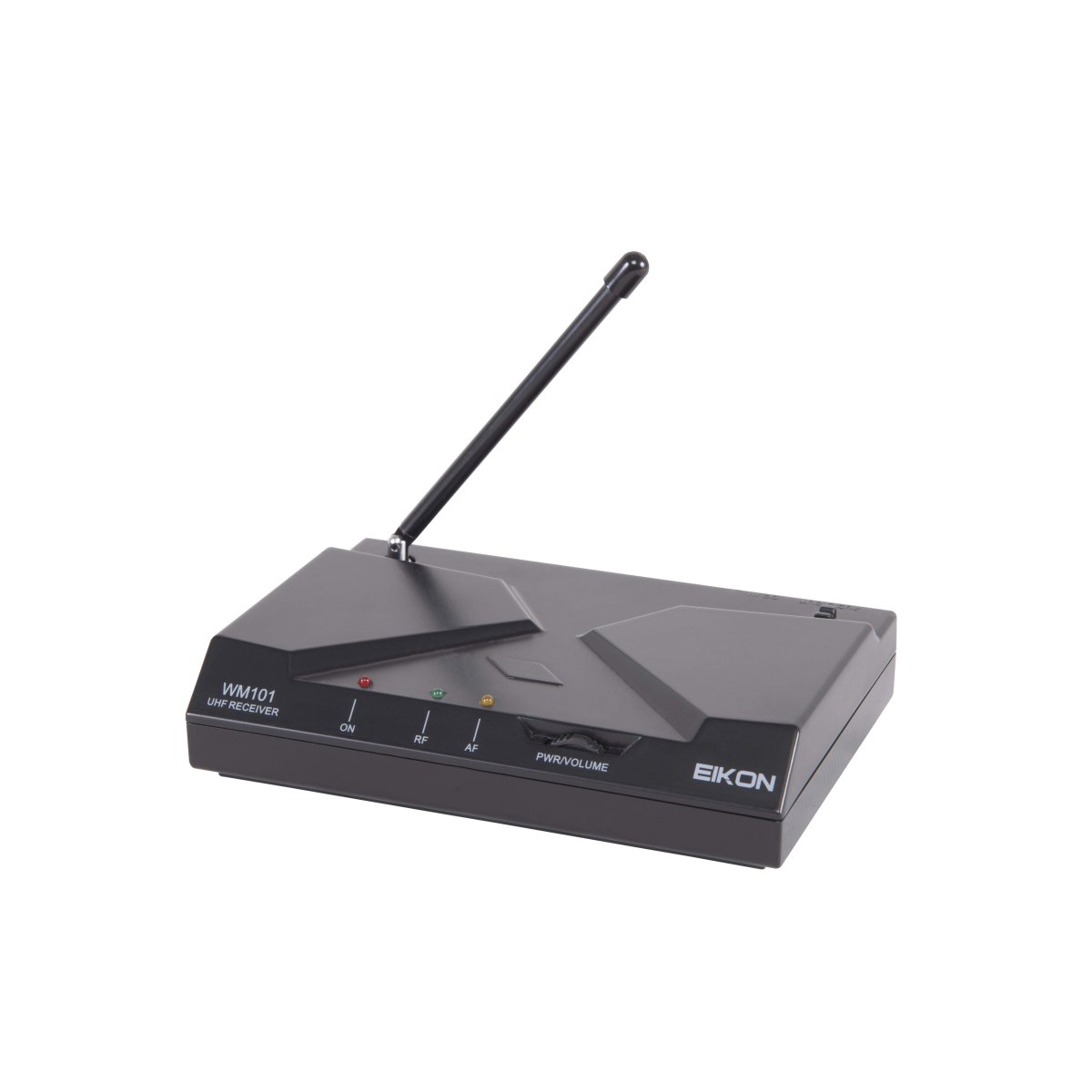

RECEIVER
Receiver Type UHF Band
Frequency Range 863-865 MHz
RF Frequency Stability ±0.002 %
RF Image/Spurious Rej. > 70 dB
RF Interference Reject. > 70 dB
RF Sensibility -105 dBm
Frequency Response 50 – 15000 Hz
Modulation Method PCM Digital 24 bit
THD Distortion < 1%
Dynamic Range > 90 dB
S/N Ratio > 100 dB
Power Requirement 12 V DC / 500 mA

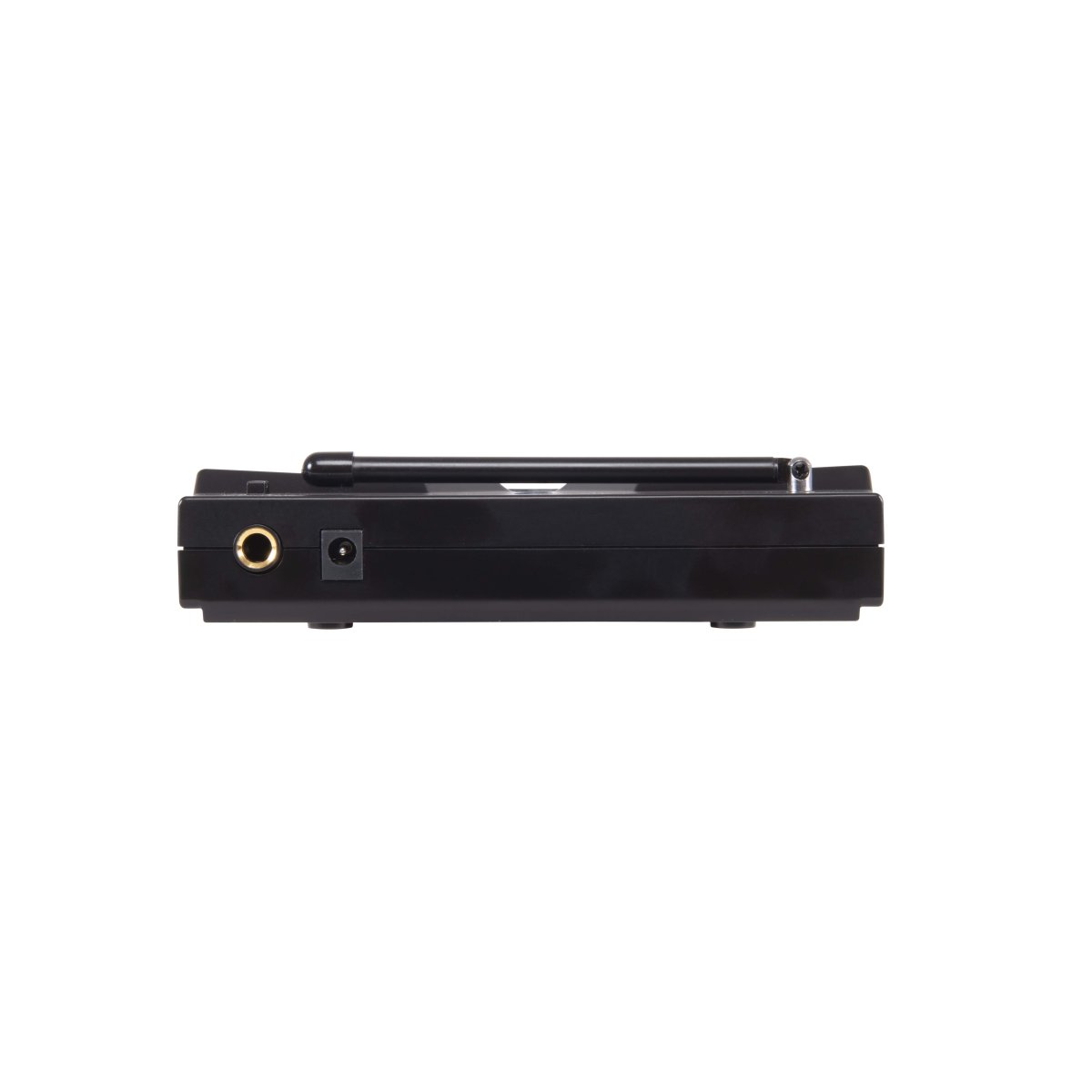

Output Connector Unbalanced ¼ “ jack
Dimensions (mm) H 45 x L 150 x W 118



HANDHELD TRANSMITTER
Carrier Frequency Range UHF: 863-865 MHz
Modulation method FM (F3E)
Transmitting Power < 10 dBm Max ERP
Transmission Distance Up to 25 m (Open Space)
RF Frequency Stability ±0.002 %
RF Max deviation ±50 KHz
Audio Modulation PCM Digital 24 bit
Spurious Emission under limits EN 300422
Frequency Response 50 – 15000 Hz
Mic Capsule Dynamic
Mic Polar Pattern Cardioid
Power Requirement 2x1.5V AA type
Battery Life Up to 8 hours
Dimensions (mm) 260 x Ø 45
