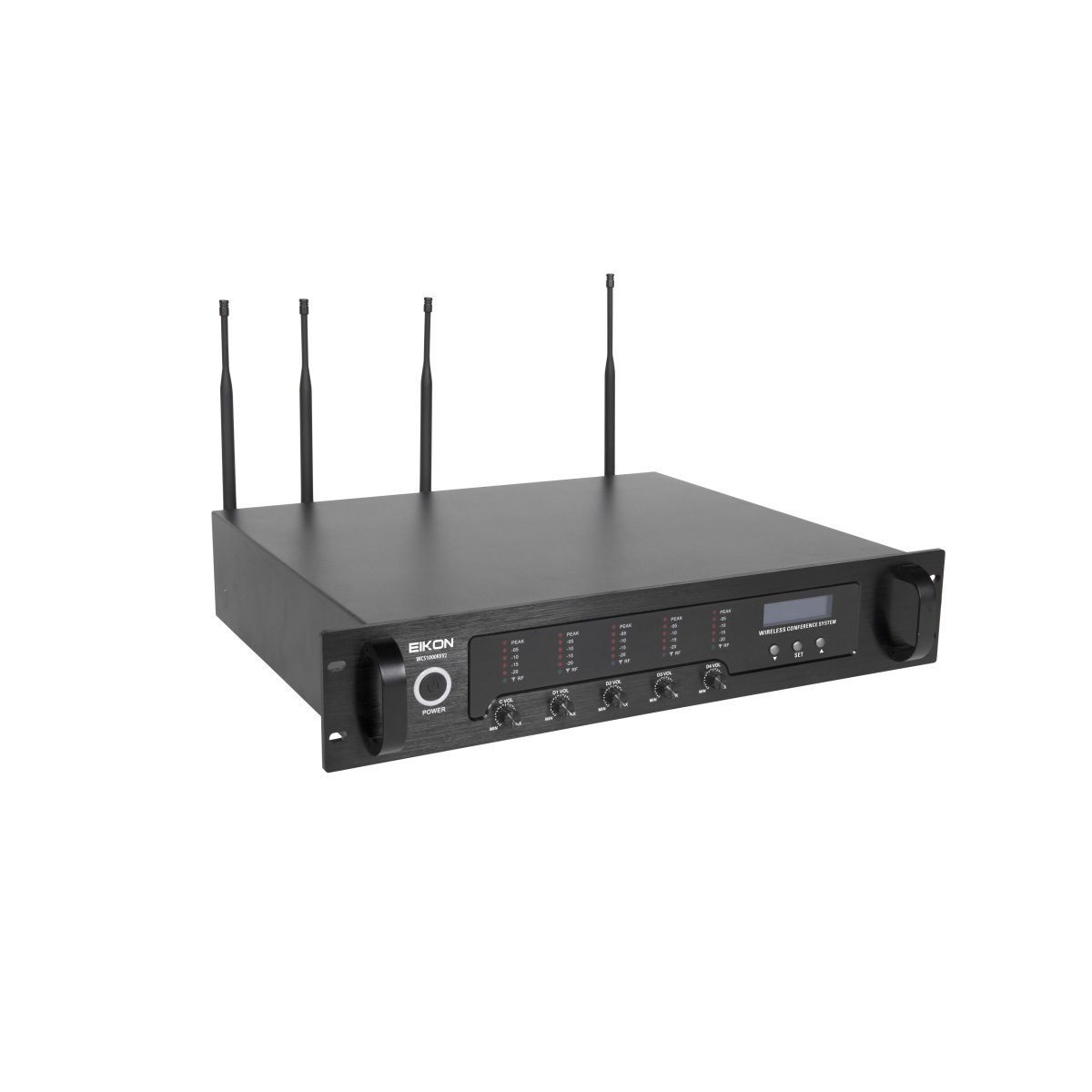

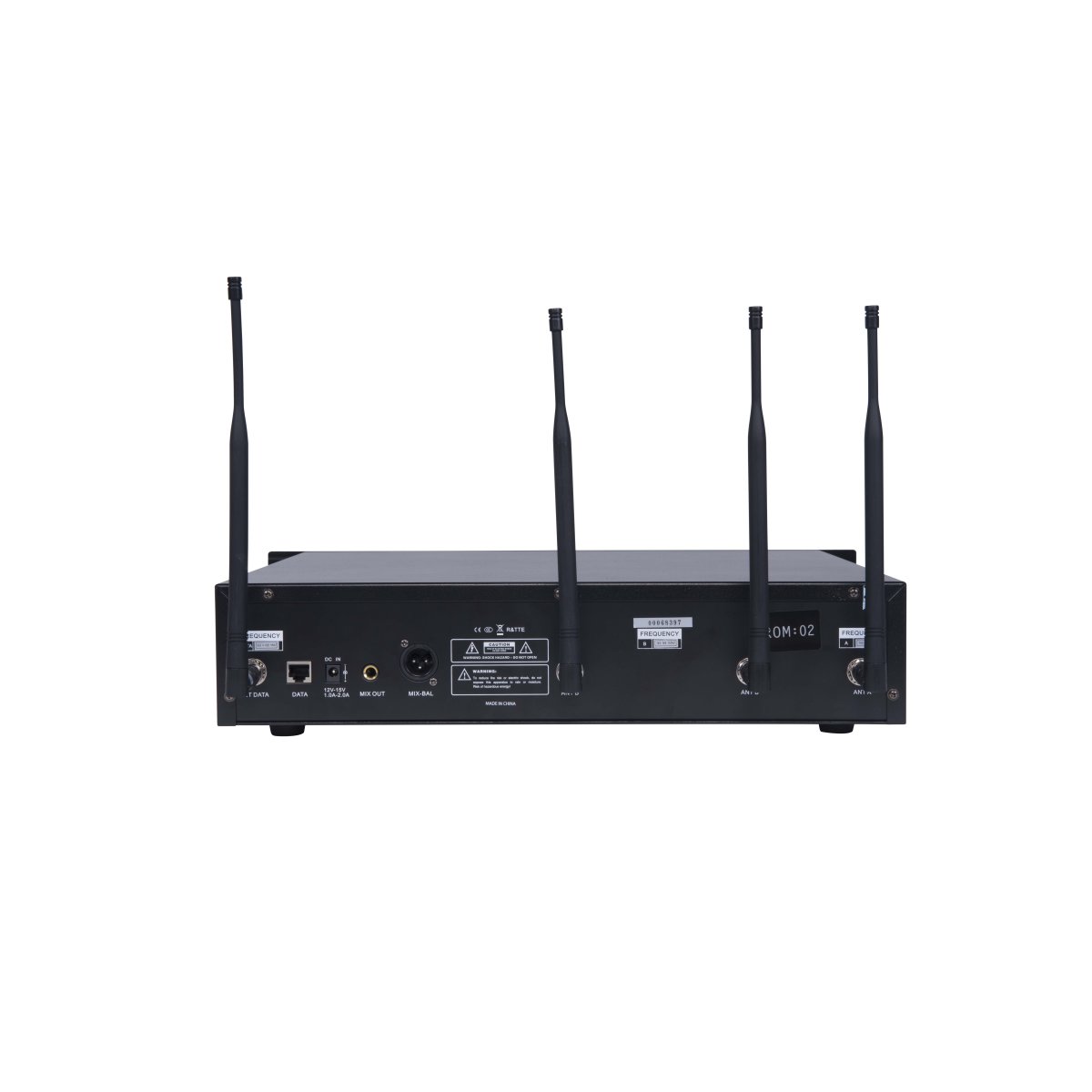

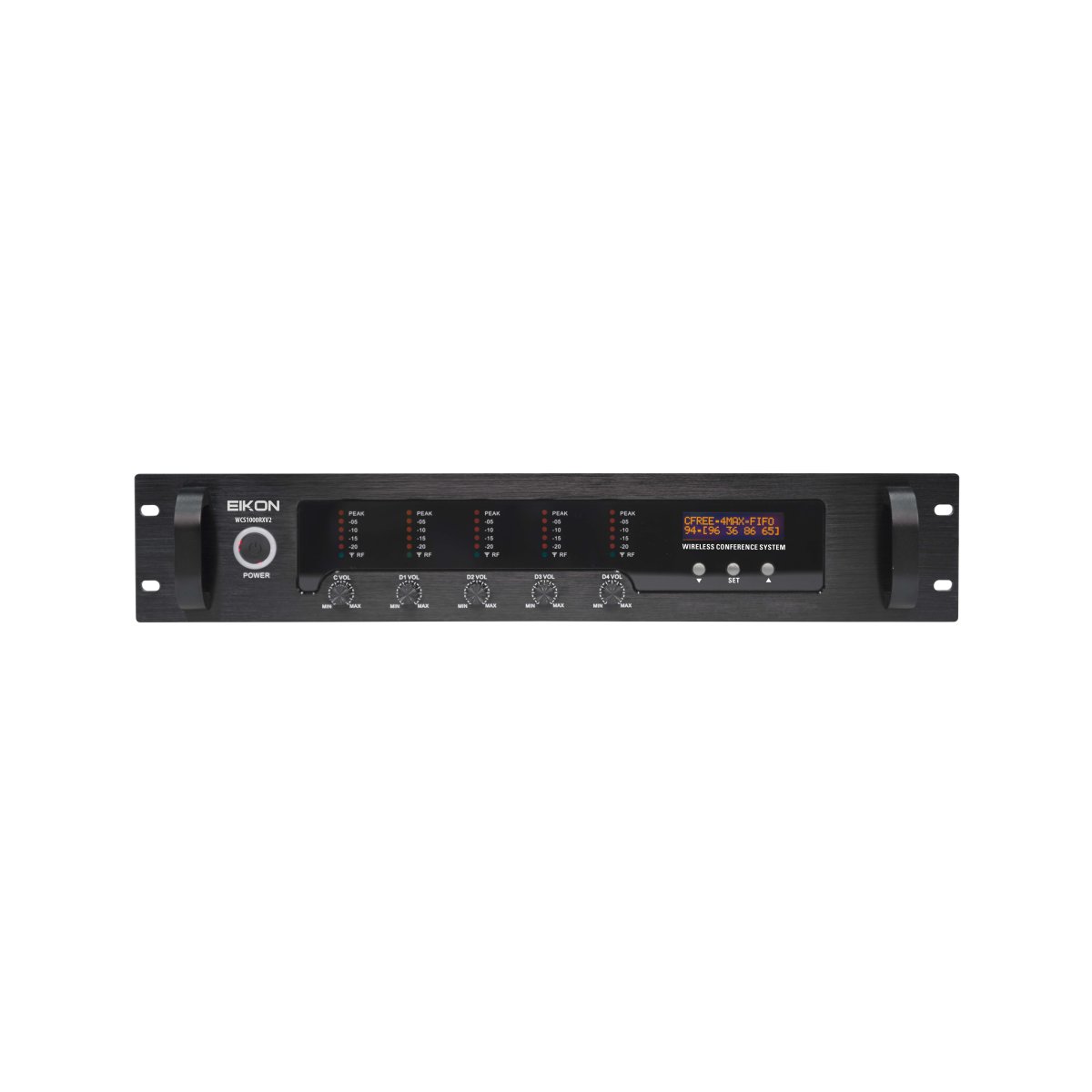

WCS1000RXV2

uhf pll wireless conference receiver

1,399.00

The WCS1000 Wireless Conference System provides advanced technology, ease of use and flexibility in a full modular setup.

As a buyer or installer, if you are looking for reliability, intuitive operation and versatility WCS System is the choice for you.

  • PLL UHF Receiver
  • Thee operating modes: FIFO, LIMIT MODE, CHAIRMAN ONLY
  • Capability to connect up to 256 microphone bases
  • LCD display
  • Individual level control for each channel
  • Connection interface for external video processor
  • Balanced outputs
  • 19” rack-mount metal case

Additional information

Weight 12 kg
Dimensions 30 × 43 × 62 cm

Wireless Conference Systems

TECHNICAL SPECIFICATIONS

AUDIO CHANNEL
Transmission method UHF Wireless (one way)
Audio Channel 5 (1 chairman, 4 delegate)
Carrier Frequency Band 626 MHz~658 MHz
Modulation Method FM
Receiving Sensitivity -100 dBm
Audio Gain ≤ 20
Frequency Response 50 -15000 Hz
S/N Ratio > 85 dB
THD < 0.8 %
DATA CONTROL CHANNEL
Transmission Method Wireless (two-way)
Data Channel 16
Frequency Range 433.4 MHz~434.4 MHz
Modulation Method FSK
Sensitivity -100 dBm
Transmission Consumption ≤ 6 dBm
Communication Rate 100 KBPS
Frequency Deviation < 0.002
SYSTEM
Power Supply DC12~15V ≤ 1A
Signal Covering Range Radius 60 m
Consumption Rating 7 W
Operating Temperature Range -10° - 40°C
Dimensions H 85 x L 485 x W 355 mm
Weight 7000 g
