Additional information
| Weight | 6.5 kg |
|---|---|
| Dimensions | 29 × 39 × 30 cm |

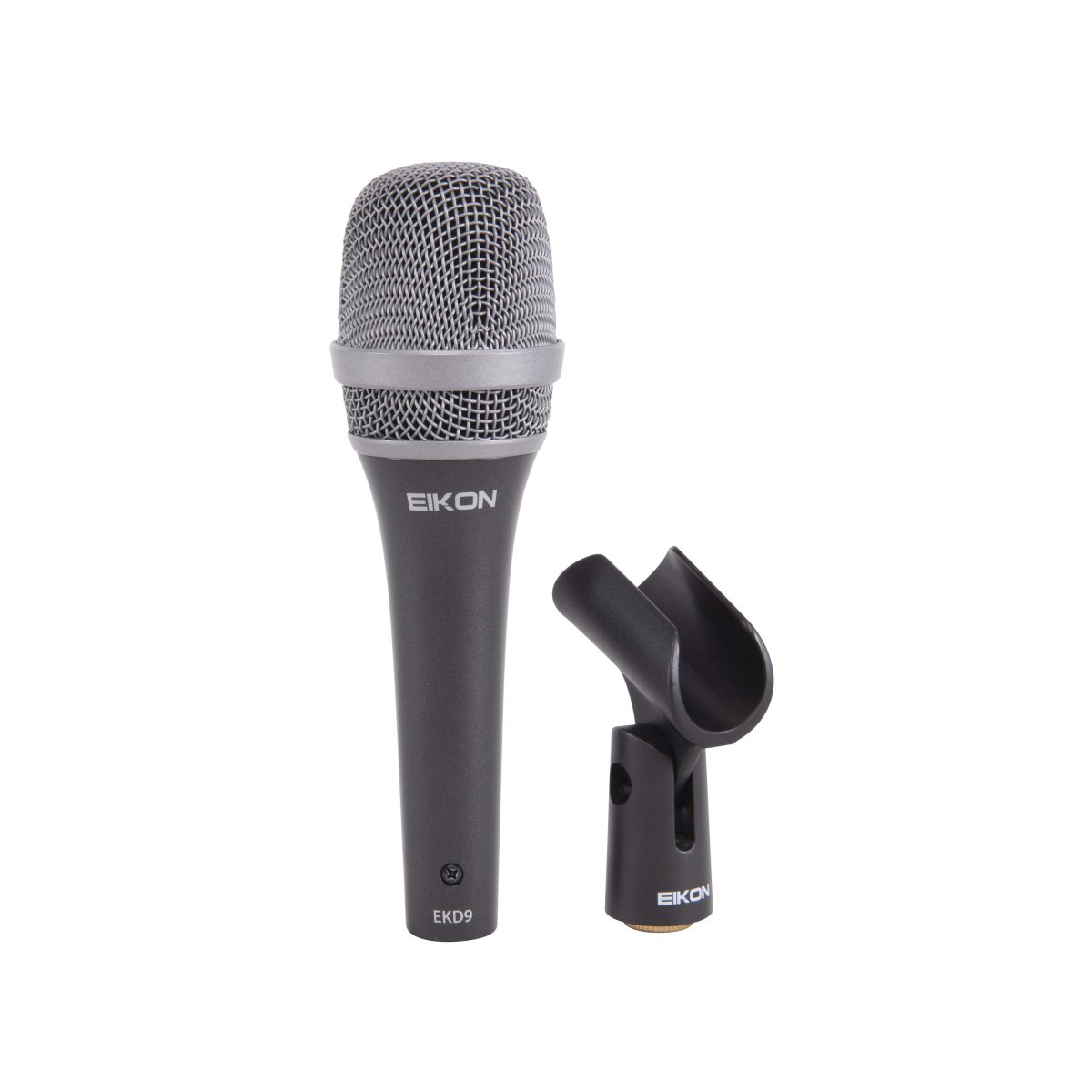

EKD9
dynamic super-cardioid professional microphone
€89.00
The EKD9 offers an exclusive active handling-noise cancelling system through a build-in patented AHNC hum-bucking capsule to reduce handling noise.
Elegant thin and curve design, it also features a special filter to reduce EMI/RFI noise for professional stage performance.
- Super-Cardioid polar pattern

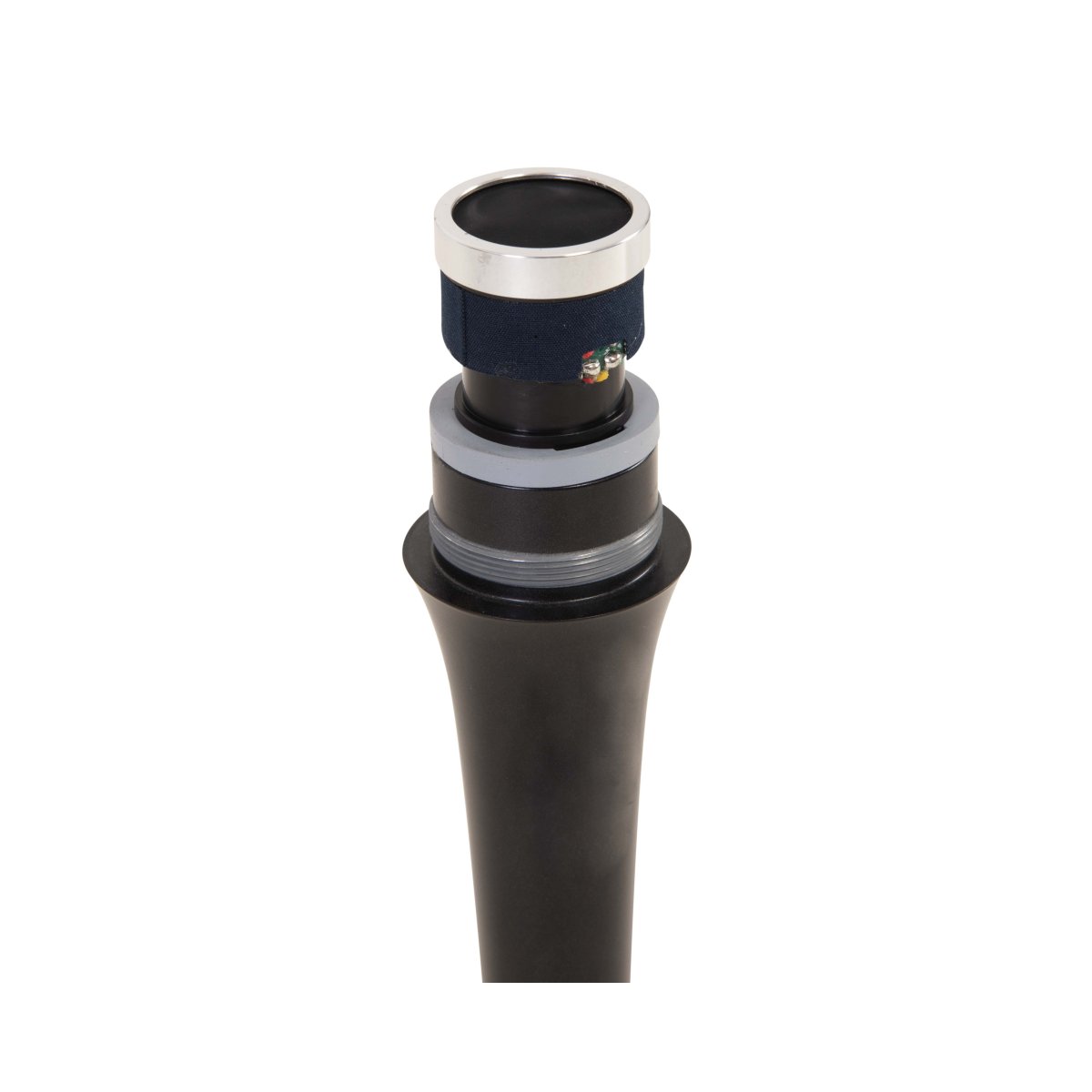

- AHNC Capsule Technology
- Rugged construction

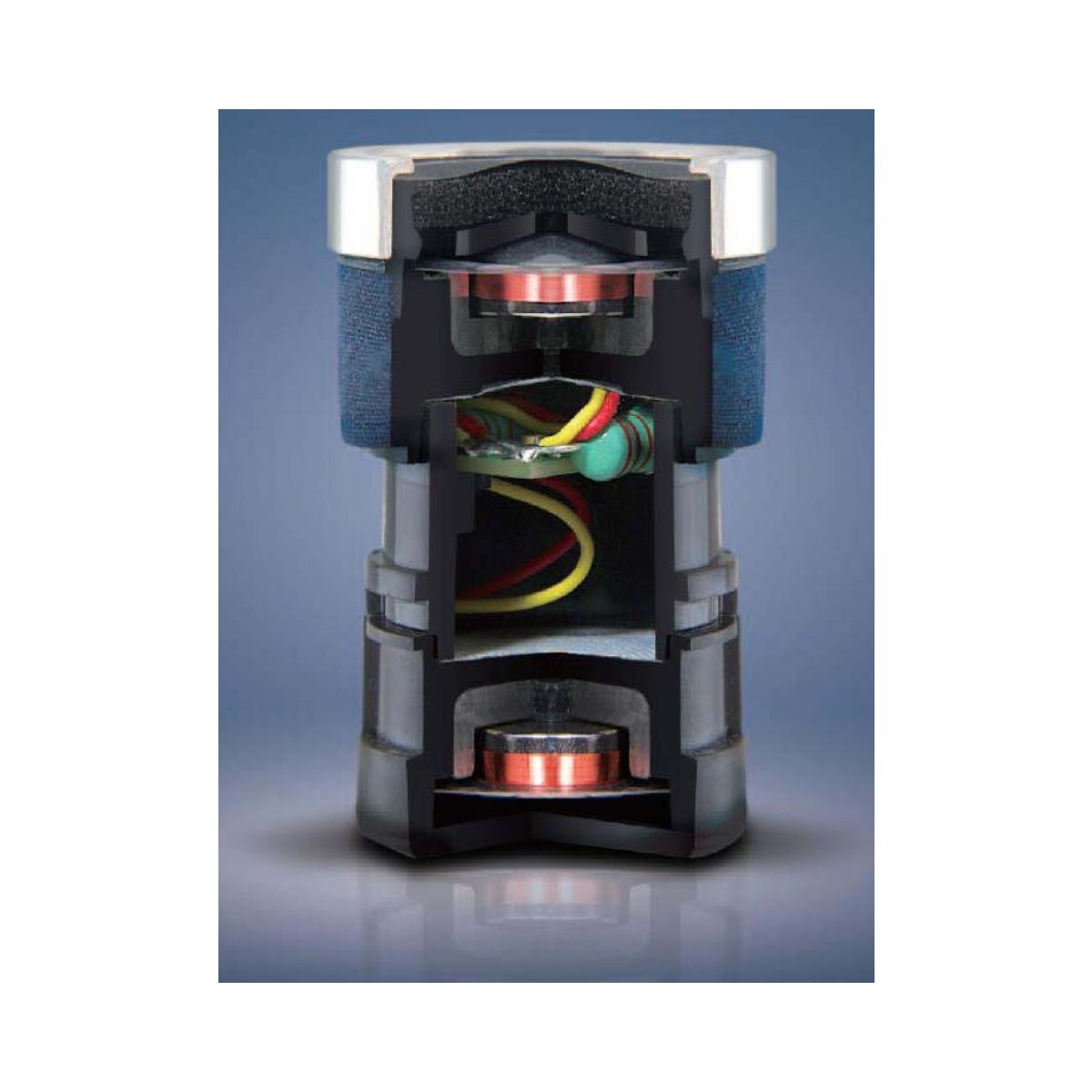

- Patented double shock-mount transducer assembling
- Frequency response tailored for vocals, with brightened midrange and bass roll-off to control proximity effect
- Padded bag and microphone holder included
TECHNICAL SPECIFICATIONS
| Type | Dynamic - Neodymium -Dual Coil |
| Polar pattern | Super-Cardioid |
| Frequency response | 50 – 19.000 hz |
| Sensitivity | -74 ±3dBv/μbar |
| Max Spl for 1% THD | 137 dB |
| Impedance | 600 Ω |
| Load Impedance | 1500 Ω |
| Connector | 3 Pin XLR Male |
| Weight | 333 g |
| Dimensions | 54,9 Ø x 182 mm |

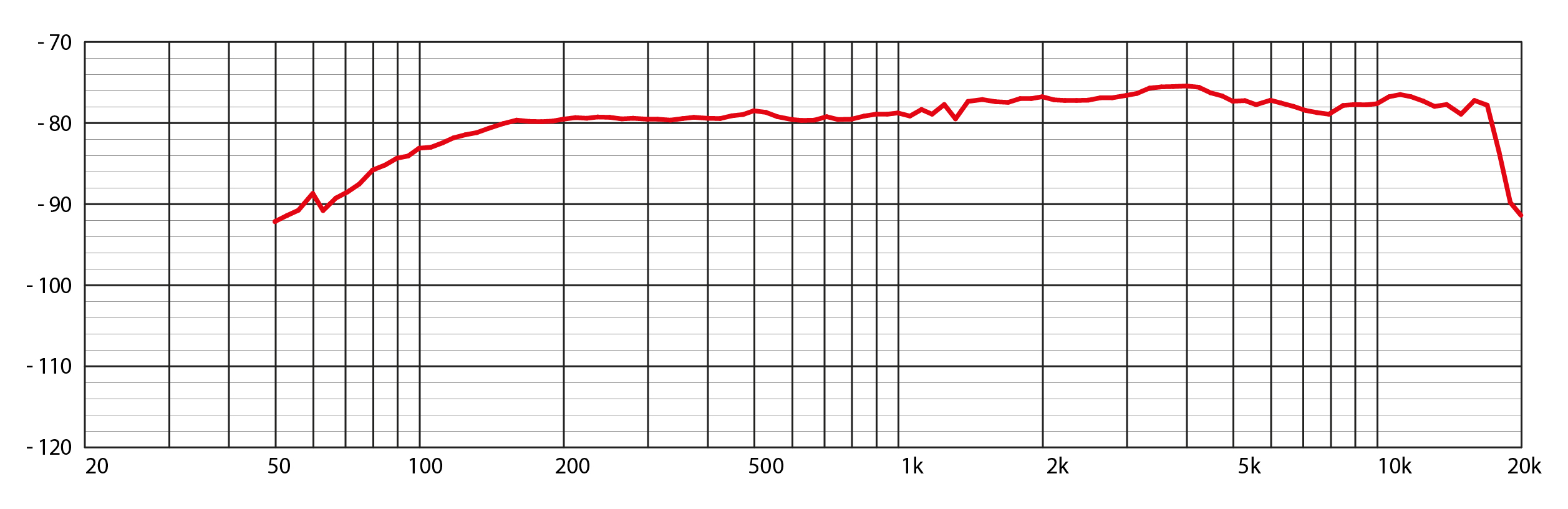

DIAGRAMS
