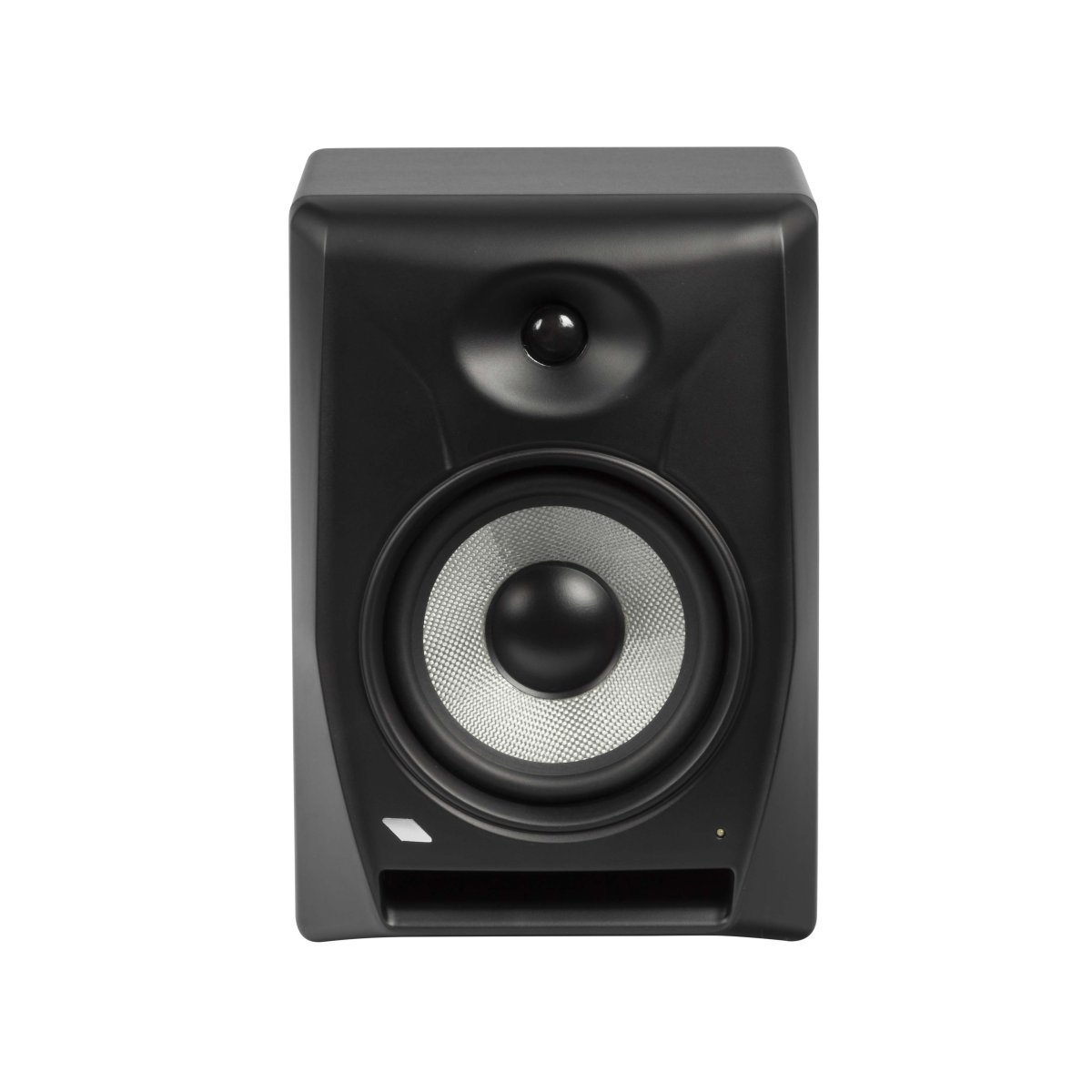

EK6NF

6,5” near-field studio monitor

209.00

EK NF is the ideal nearfield monitor solution for any kind of music production applications. From the carefully selected transducers to the proprietary enhanced waveguides and to the low resonance cabinet design, everything has been tailored to offer the best accuracy over the whole audio spectrum. The perfectly optimized electronics, including highheadroom separate Class AB amplifiers for high and low section, high precision crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.

  • Bi-amplified 2-way system
  • 1 “soft-dome tweeter for detailed response and a high-resolution sound
  • Proprietary integrated elliptical waveguide with accurate directivity control

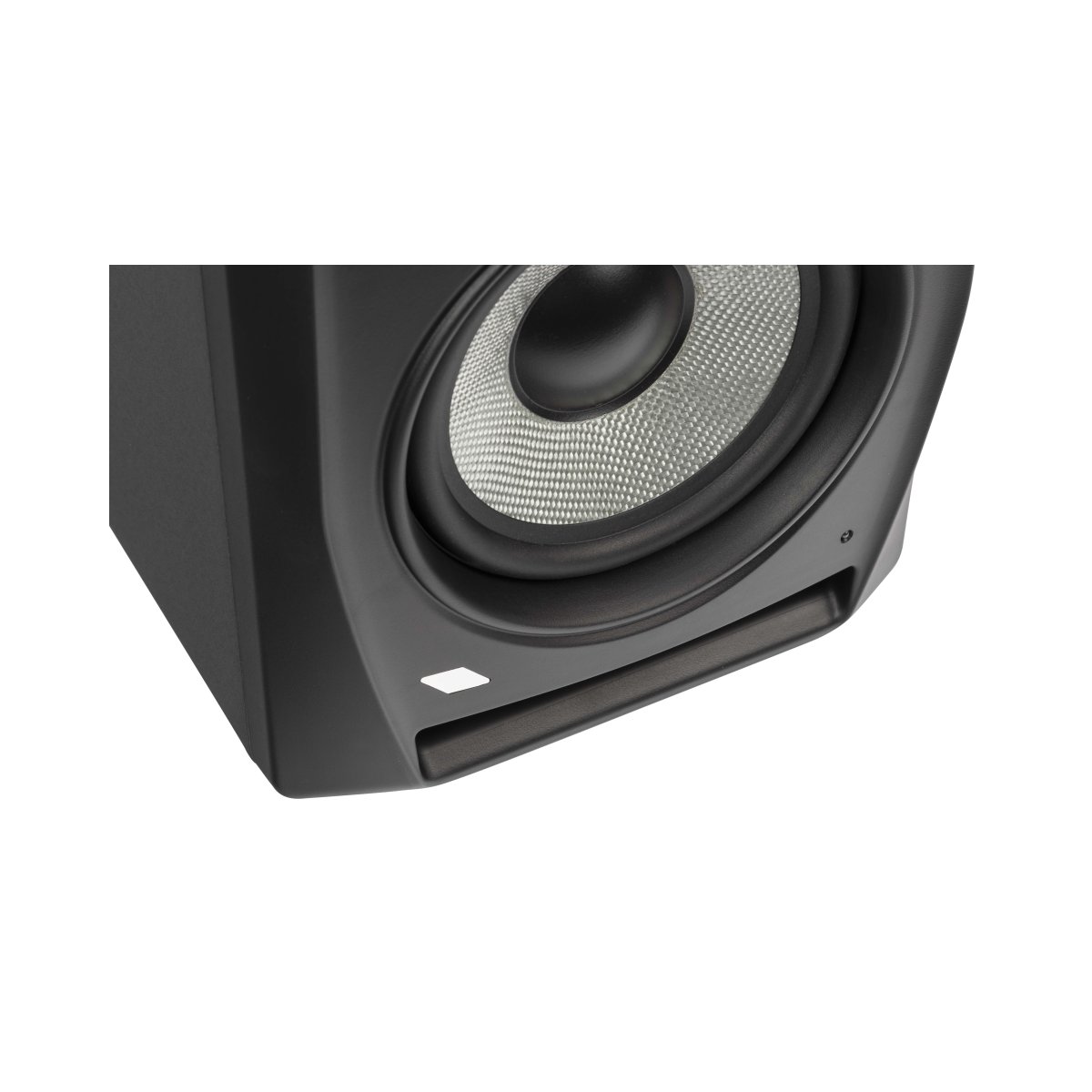

  • Long-excursion 6.5” woofer with lightweight fiber-glass composite cone
  • Precisely calculated front tuning port for greater low-frequency extension
  • Multiple audio input connectors for connecting any kind of source
  • HF adjustment for a flexible control of high frequency response
  • Sophisticated, carefully designed crossover filters and an improved resolution
  • High-headroom Class AB 35+60W amplifiers with dual accurate CLIP LIMITER

Additional information

Weight 19.8 kg
Dimensions 56 × 34 × 45 cm

Nearfield Monitors

TECHNICAL SPECIFICATIONS

System type 2-way vented enclosure
High Frequency Device 1“ dome tweeter on elliptical waveguide
Low Frequency Device 6.5” woofer with fiberglass reinforced cone
Angular Coverage 90° H x 60° V
HF Amplifier Continuous Power 35W Class AB
LF Amplifier Continuous Power 60W Class AB
Processing Analog
Frequency Response 50 Hz - 20 kHz
Max SPL 106 dB

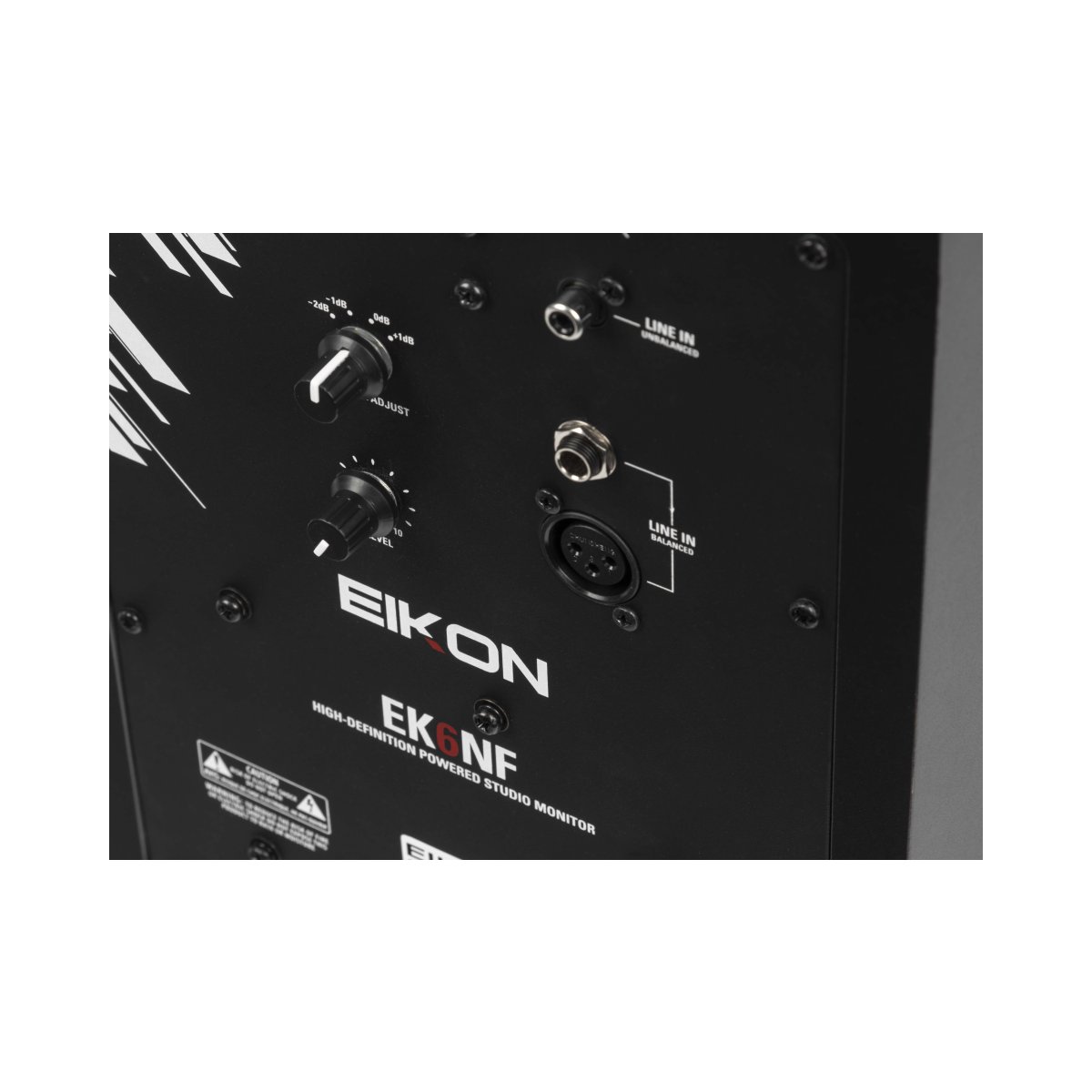

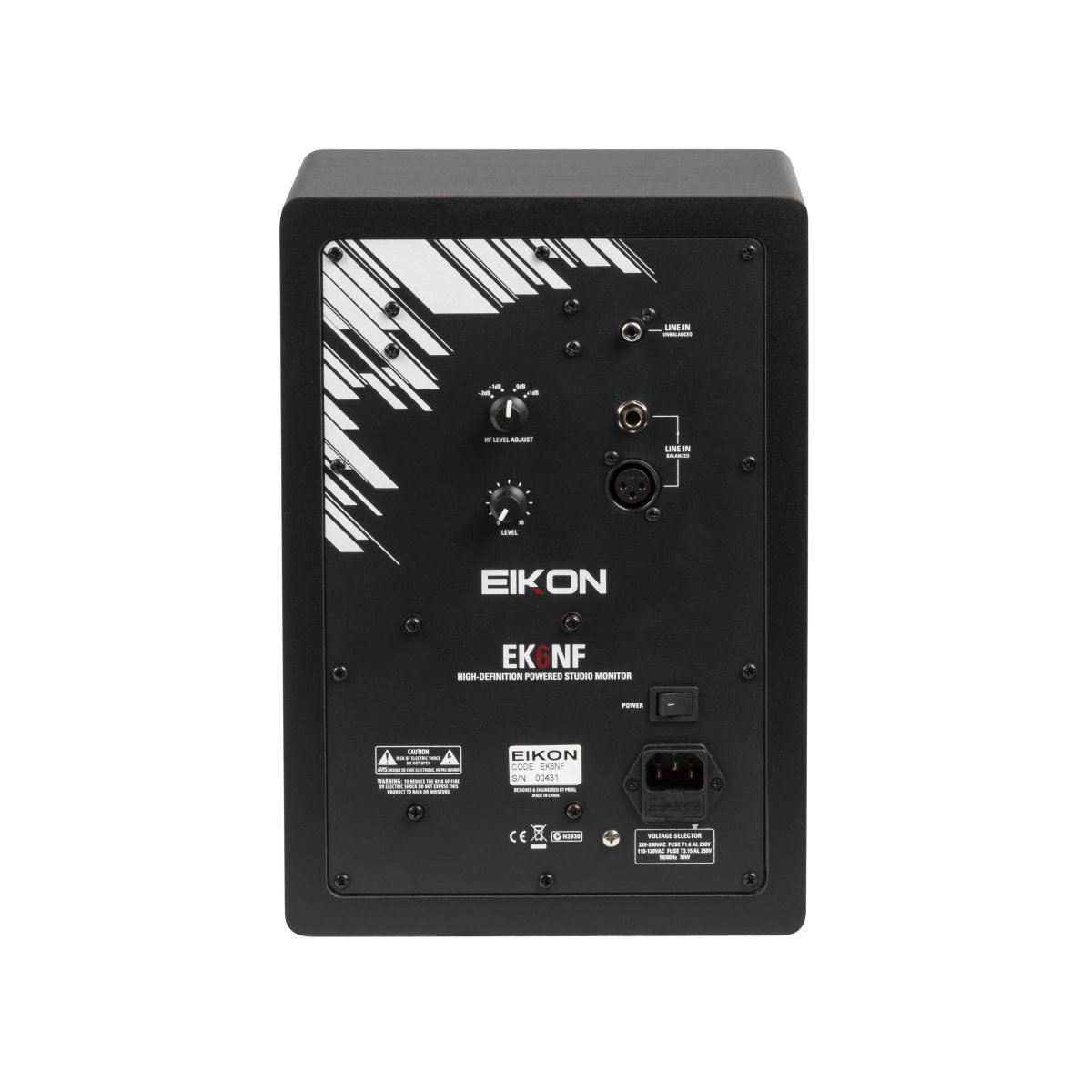

Connectors 1/4” JACK, XLR-F, RCA
Controls LEVEL, HF ADJUST
Construction Vinyl laminated MDF cabinet with ABS front
Cabinet Colour Black
Power Supply 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D) 225 x 320 x 270 mm
Weight 8 kg
