WM202KIT

uhf diversity wireless microphone system

  • Handheld + headset fixed frequency wireless microphone system
  • 863 – 865 Mhz frequency range
  • 30 meter / 100 feet range
  • 50 Hz – 15 KHz frequency response
  • -105 dB signal / noise ratio
  • Cardioid dynamic capsule
  • Condenser headset with cardioid capsule
  • Low-profile desktop receiver with two foldable antennas
  • Up to 3 systems usable in the same location
  • ABS carrying and storage case
  • Note: Parallel operation is not possible, only one transmitter can be in operation at a time.

Additional information

Weight 12.8 kg
Dimensions 76 × 40 × 35 cm

Microphone&Headphone

TECHNICAL SPECIFICATIONS

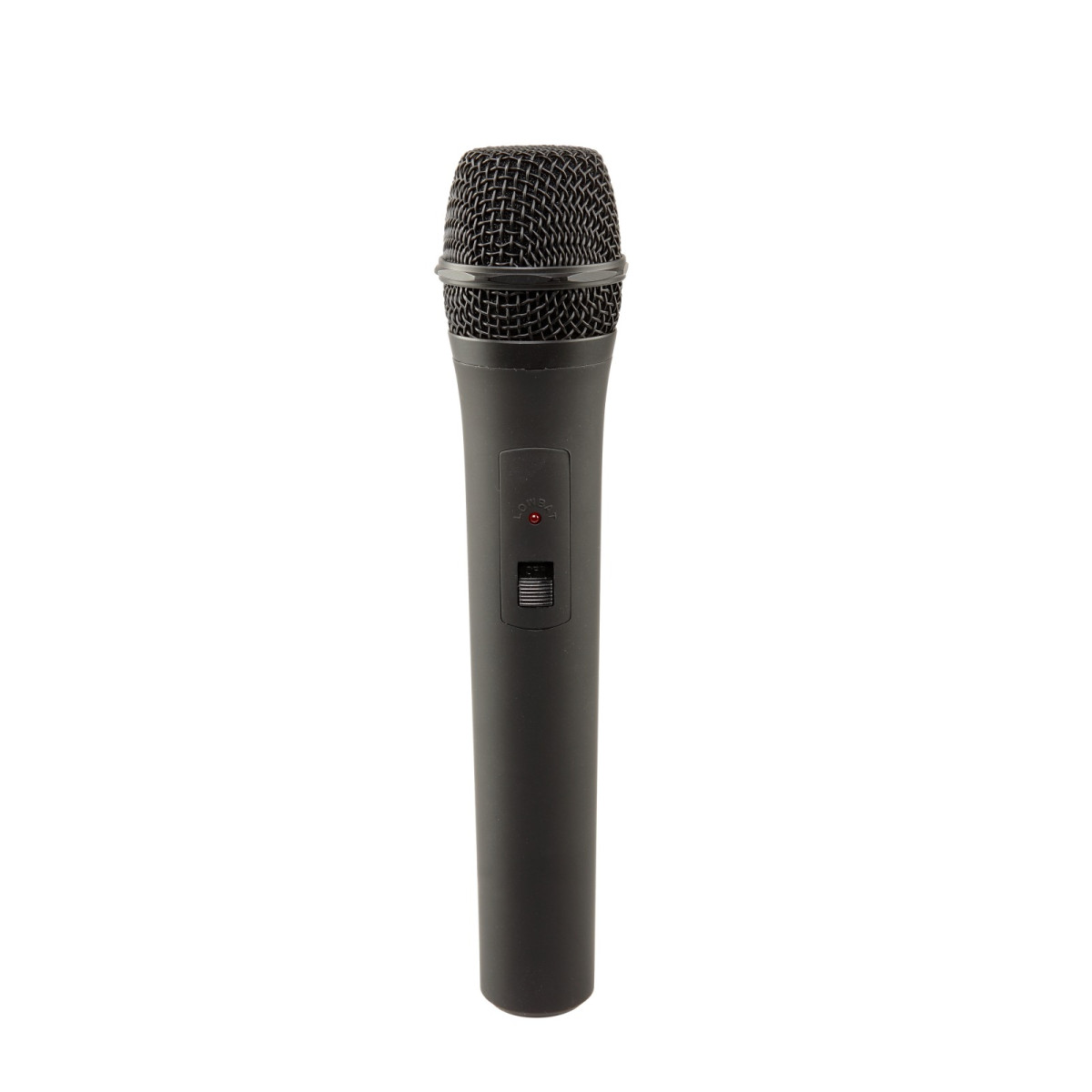

HANDHELD TRANSMITTER
RF Frequency Band   863 ~ 865 Mhz
Frequency Stability  0,0002
Modulation Method FM ( F3E )
RF Max deviation  ± 40 Khz
Audio Frequency Response  50 Hz - 15 Khz
Transducer Type  Moving Coil
Polar Pattern  Cardioid
Spurious Emission  Under limits EN 300422
RF Power  <10 dBm
Power Supply  2 x 1,5 V alkaline  Battery
Dimension  ( W x D x H ) mm 235 x 50 x 50

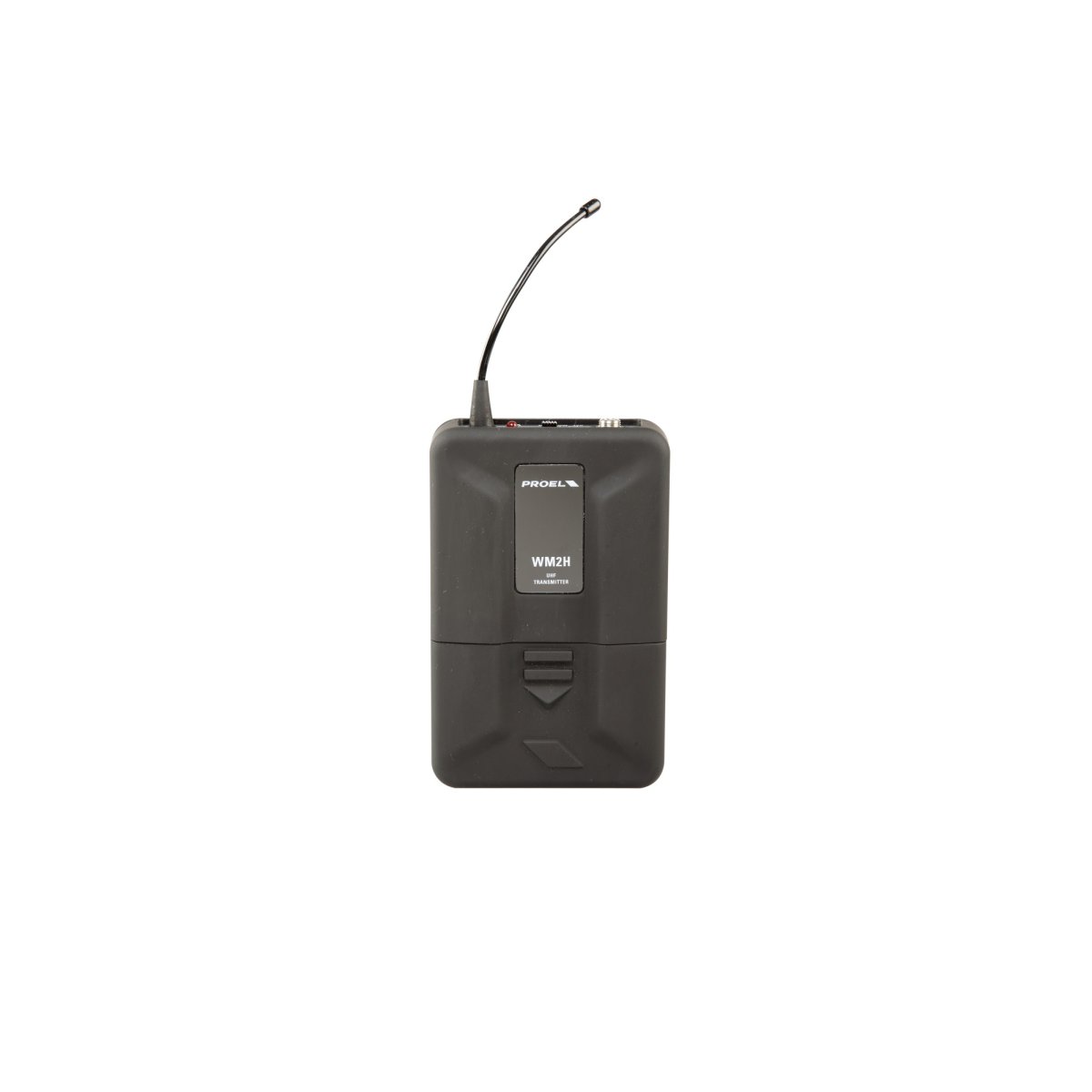

BODYPACK TRANSMITTER
RF Frequency Band   863 ~ 865 Mhz
Frequency Stability  0,0002
Modulation Method FM ( F3E )
RF Max deviation  ± 40 Khz
Audio Frequency Response  50 Hz - 15 Khz
Transducer Type  Condenser Head set
Polar Pattern  Cardioid
Spurious Emission  Under limits EN 300422
RF Power  <10 dBm
Power Supply  2 x 1,5 V alkaline  Battery
Dimension  ( W x D x H ) mm 100x 65 x 30

RECEIVER
RF Frequency Band   863 ~ 865 Mhz
Frequency Stability  0,0002
RF Image spurious Rej. - 70 dB
RF Interference reject > 70 dB
RF Sensitibily  - 105 dB
Audio Frequency Response  50 - 15 Khz
THD < 1%
Dynamic Range  >100 dB
S/N Ratio  >70 dB
Output Connector xlr  Balanced
  1/4 jack  unbalanced
Power supply  dc 13-15 Vdc 200 mmA
Dimension  ( W x D x H ) 175 x 135 x 45
