Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 37 × 26 × 20 cm |
TECHNICAL SPECIFICATIONS
|

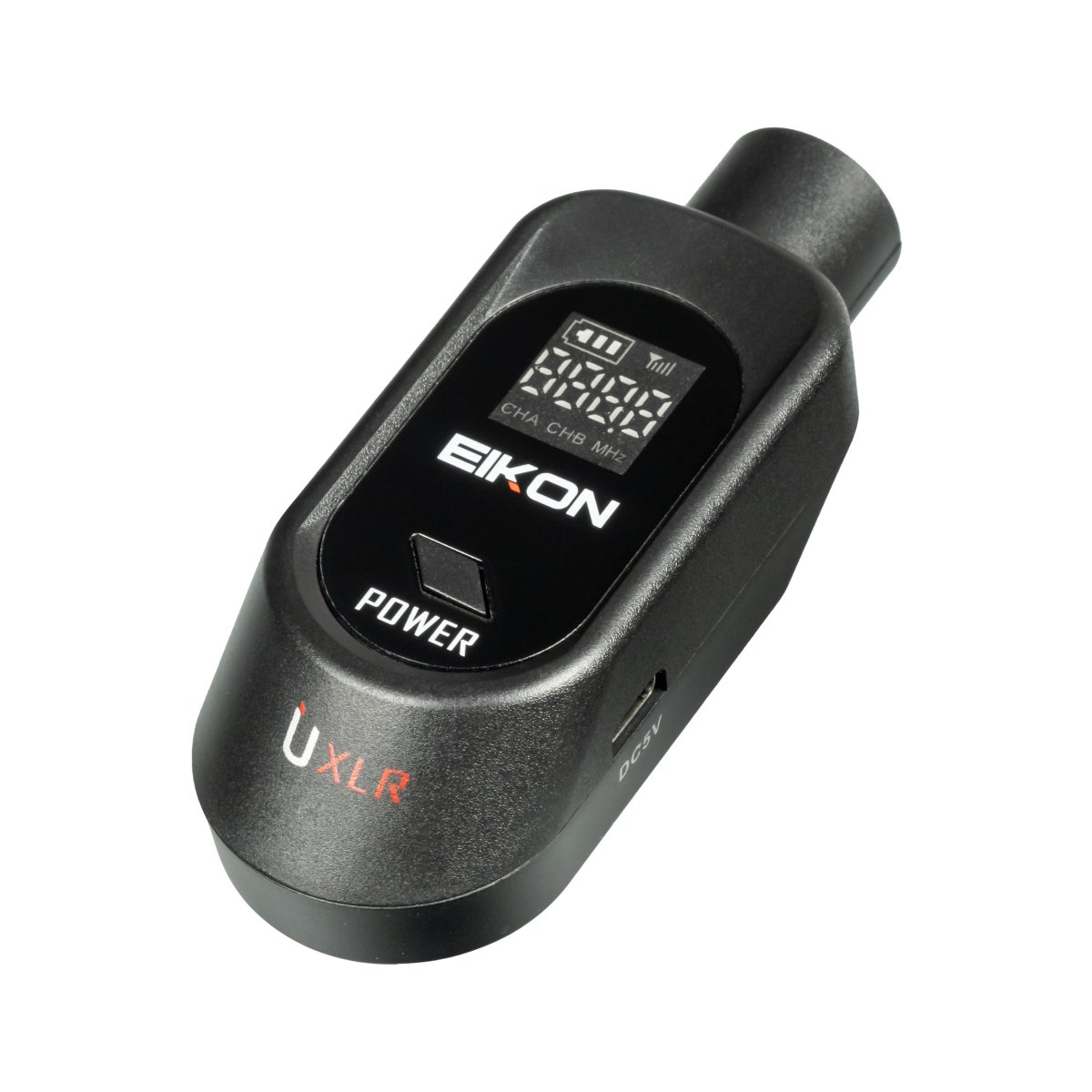

UXLRRX – UHF PLL Receiver |
|
|
RF Channels |
16 or 30 frequency presets depending on band |
|
RF Frequency Band |
UHF: 863-865 MHz or |
|
RF Frequency Stability |
±0.005% |
|
RF Oscillation Mode |
PLL Synthesized |
|
RF Modulation Type |
DQPSK |
|
RF Receiving Sensitivity |
< -98 dBm |
|
RF Receiving range |
Up to 30 meters |
|
Audio dynamic range |
106 dBm |
|
THD Distortion |
< 0.5% |
|
S/N Ratio |
> 102 dBA |
|
Operating current |
85 mA |
|
Operating Time |
3 to 5 hrs |
|
Operating Power Supply |
3.7 V / 800 mA - built-in Lithium battery |
|
Charging mode |
USB charging 5V – type C connector |
|
Charging time |
4 hours |
|
Weight |
0.10 Kg |
