Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 52 × 42 × 35 cm |

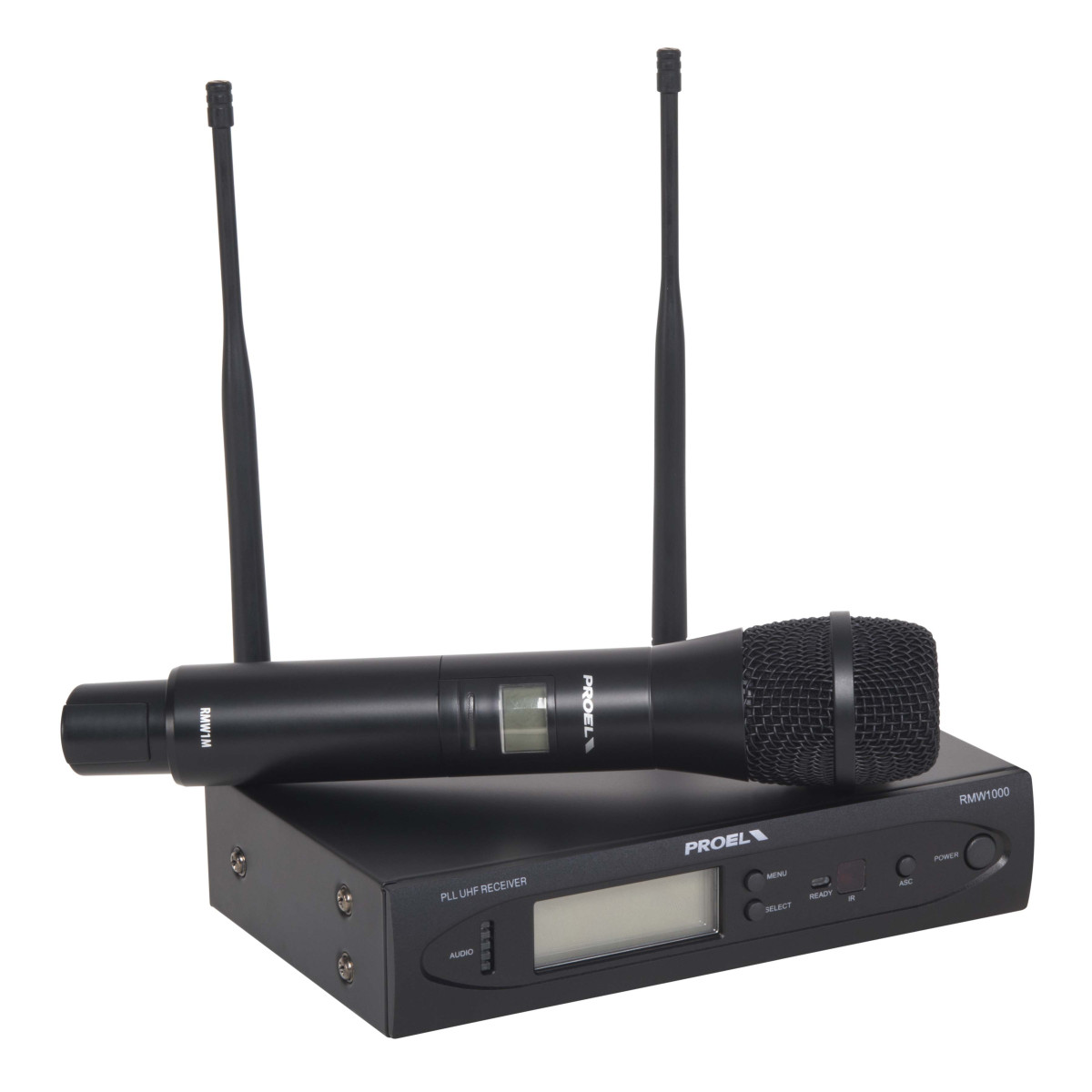

RMW1000M
pll uhf wireless microphone system
- Available requency ranges: 551 – 581 MHz.
- 50 meter / 160 feet range
- 50 Hz – 15 KHz frequency response
- -105 dB signal / noise ratio
- 121 selectable channels
- True Diversity antenna
- Up to 6 systems usable in the same location
- Automatic channel scan
- IR sync
- ABS carrying and storage case
Consumer alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.
TECHNICAL SPECIFICATIONS
RECEIVER
Receiver type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 0,8%
Dynamic range: ≥ 100 dB
Sensitivity: -105 dB for 12dB SINAD
Output level: -13 dBv Balanced -2dBv, unbalanced ¼ jack
Power supply: Dc 12-18 Volt 150 mA
Dimension: 197( L) x 134(D) x 42(H) mm
Weight: 0.820 Kg

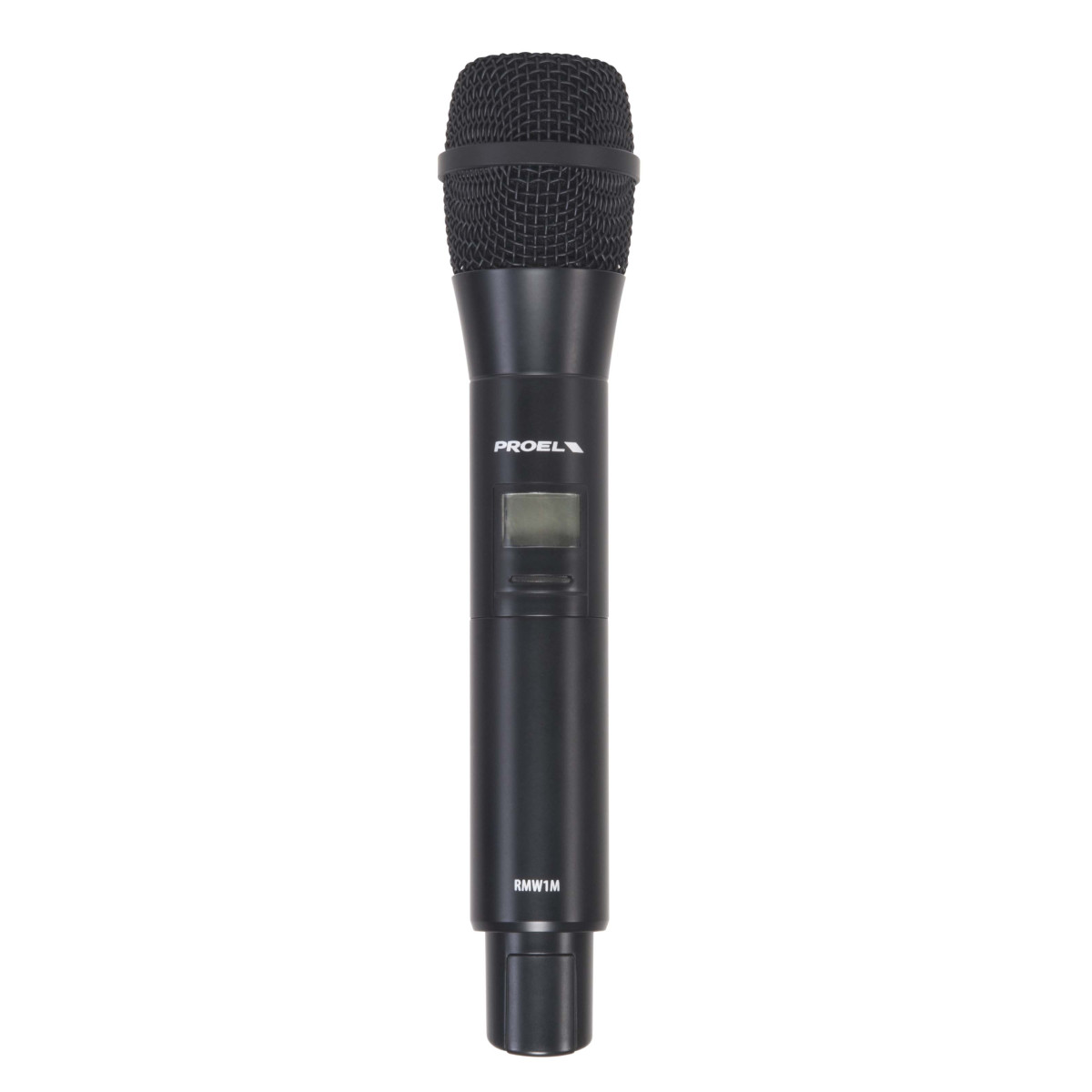

TRANSMITTER
Transmitter type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 1%
Dynamic range: ≥ 100 dB
S/N ratio: ≥ 90 dB
RF output power: 10 mW
Current drain: 160 mA
Tone pilot frequency: 30 ~ 33 Khz
Mic capsule: Dynamic Battery: 2 x 1.5 Volt “AA” type
Autonomy: 8 hours
Dimension: 64 ( L) x 19(D) x 108 (H) mm
Weight: 0.400 Kg
