EKJMV2
microfono wireless uhf
€55.90
EKJ&M è un sistema microfonico wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.

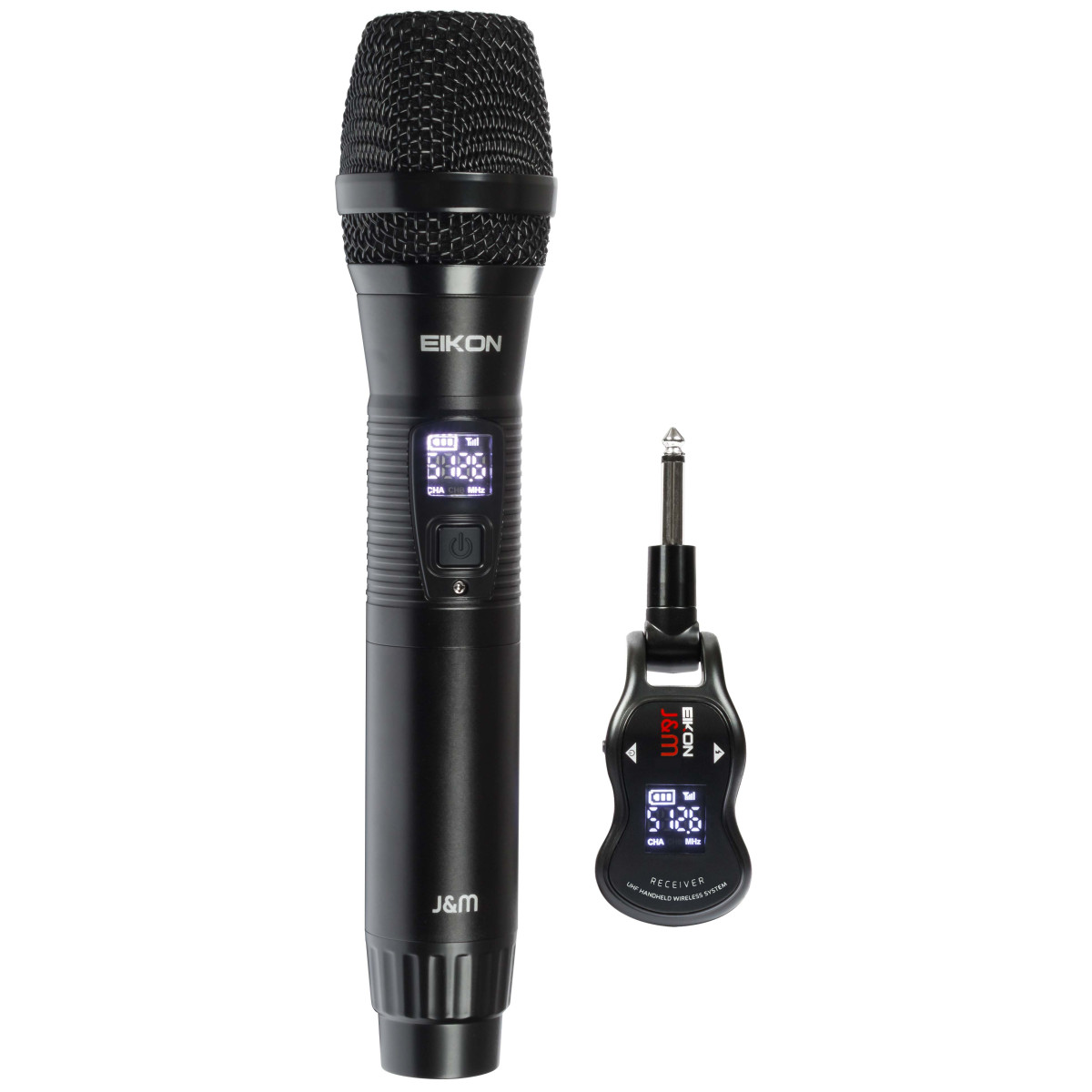

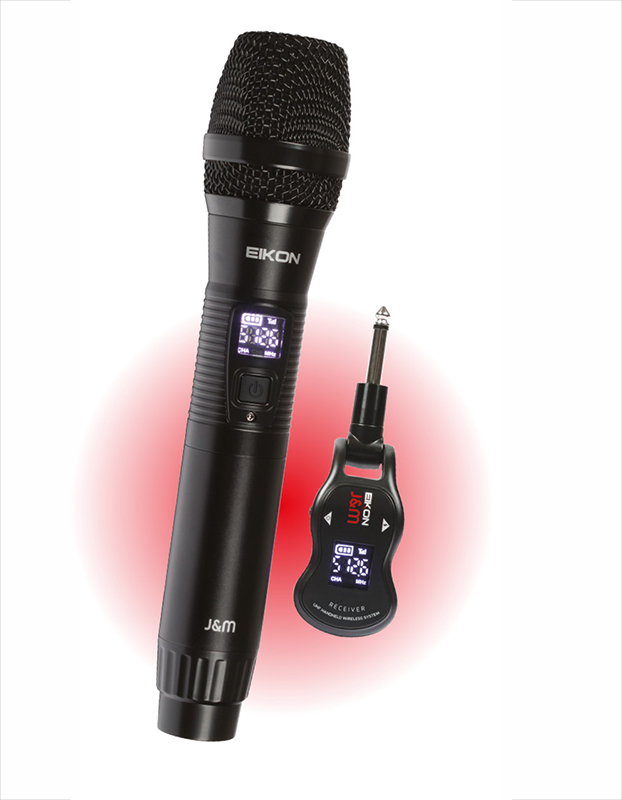

EKJ&M è dotato di 3 unità: trasmettitore portatile EKJ&M, ricevitore compatto “formato connettore” EKJ&M e cavo di ricarica da USB a USB-C.
Sono disponibili 16 canali di frequenza (50 canali modello 512 – 541 MHz ), consentendo la possibilità di utilizzare l’apparato insieme ad altre apparecchiature wireless.
- UHF 512 – 541 MHz or 863 – 865 MHz frequency band
- Quartz locked modulation mode
- Up to 30 meters range
- Built in 3.7V/500mA lithium battery
- 5V USB charging cable included
- Up to 5 hours autonomy
- Up to 6 systems usable in the same location
SPECIFICHE TECNICHE
|

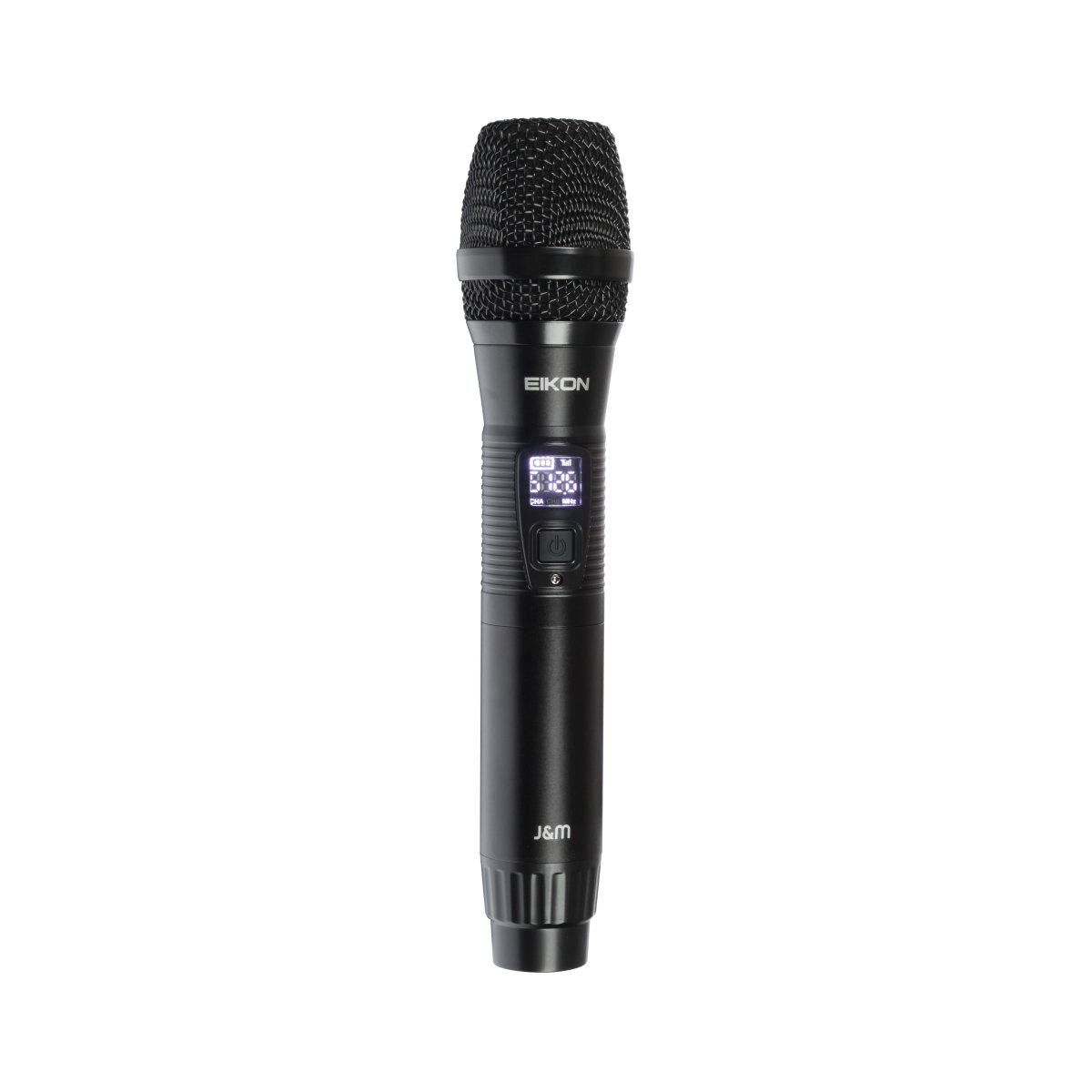

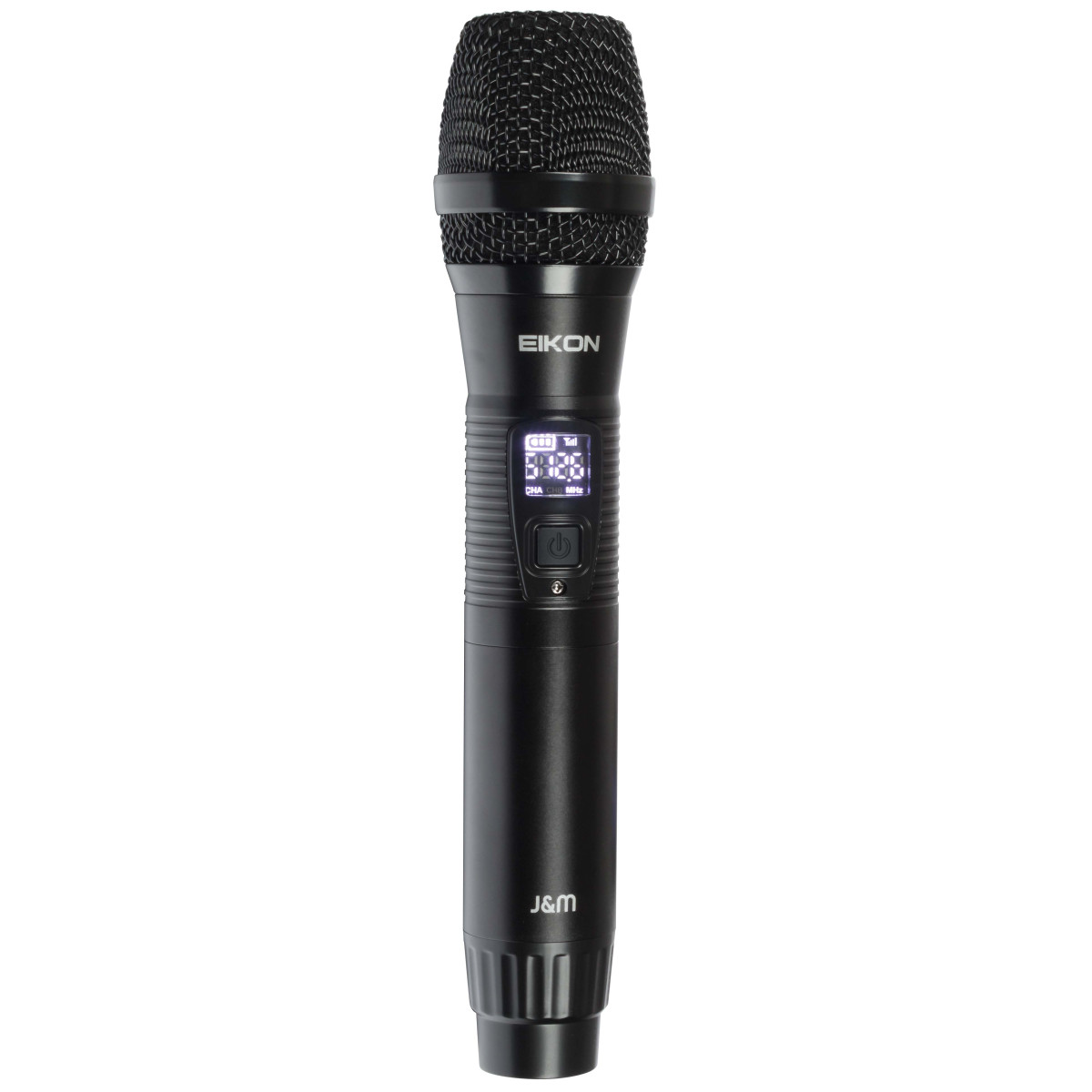

EKJ&M – UHF PLL Transmitter |
|
|
RF Channels |
16 frequency presets |
|
RF Frequency Band |
UHF: 512 - 541 MHz or 863 – 865 MHz |
|
RF Frequency Stability |
±0,002% |
|
RF Oscillation Mode |
Quartz locked |
|
RF Modulation Type |
Wideband FM Stereo |
|
RF Output Power |
10mW |
|
Sub-harmonic |
< 40 dB |
|
Operating current |
130 mA |
|
Operating Time |
5 to 8 hrs (depending on volume level) |
|
Operating Power Supply |
3.7 V / 500 mA - built-in Lithium battery |
|
Charging mode |
USB charging 5V – type USB mini connector |
|
Charging time |
5 hours |
|
Weight |
0.30 Kg |
|
|
|
|

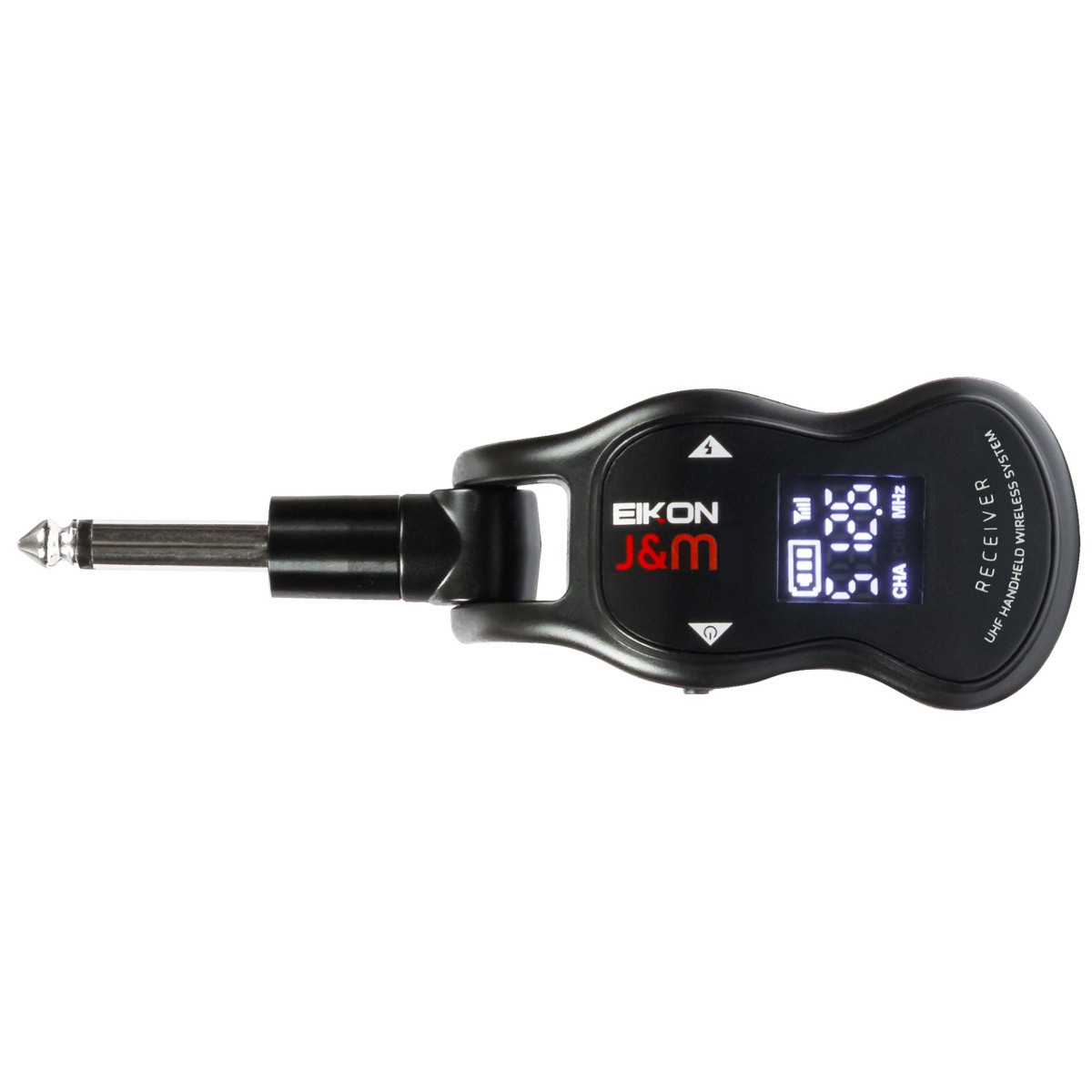

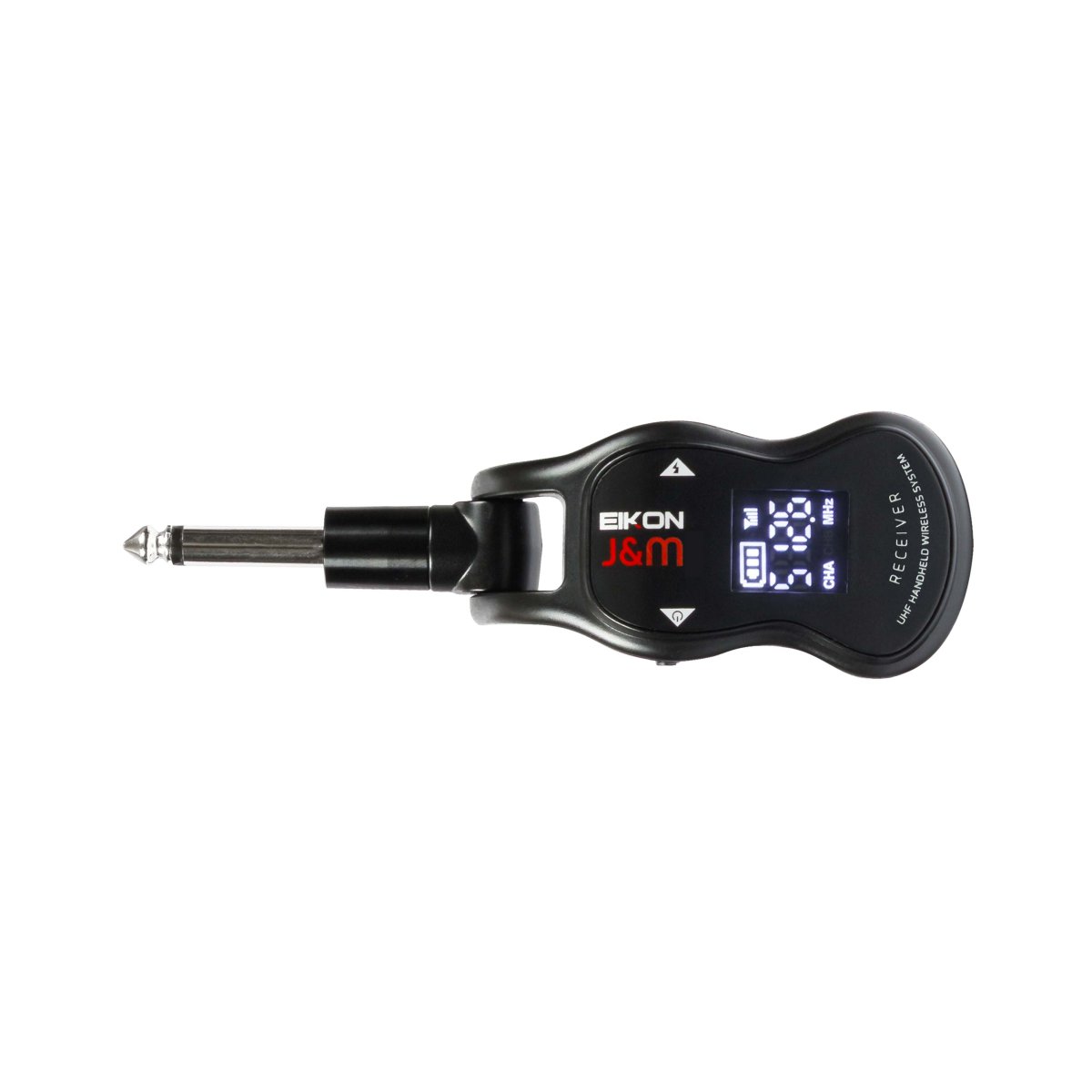

EKJ&M –UHF PLL Receiver |
|
|
RF Channels |
16 frequency presets |
|
RF Frequency Band |
UHF: 512 - 541 MHz or 863 – 865 MHz |
|
RF Frequency Stability |
±0,005% |
|
RF Oscillation Mode |
Quartz locked |
|
RF Modulation Type |
Wideband FM Stereo |
|
RF Receiving Sensitivity |
< -98 dBm |
|
RF Receiving range |
15 to 30 meters depending on used band conditions |
|
Audio dynamic range |
106 dBm |
|
THD Distortion |
< 0.5% |
|
S/N Ratio |
> 102 dBA |
|
Audio output connector |
6.3 mm Mono Jack |
|
Output Power Max (continuous) |
400 mW |
|
Operating current |
80 mA |
|
Operating Time |
5 hours |
|
Operating Power Supply |
3.7 V / 500 mA - built-in Lithium battery |
|
Charging mode |
USB charging 5V – type USB mini connector |
|
Charging time |
3 hours |
|
Weight |
0.05 Kg |
